WAW-600D 600KN Computer Control Electro-servo Hydraulic UTM,
60Ton Universal Testing Machine
WAW-600D 600KN Computer Control Electro-servo Hydraulic UTM, 60Ton Universal Testing Machine
WAW-600D 600KN Computer Control Electro-servo Hydraulic UTM, 60Ton Universal Testing Machine
WAW-600D 600KN Computer Control Electro-servo Hydraulic UTM, 60Ton Universal Testing Machine
Application

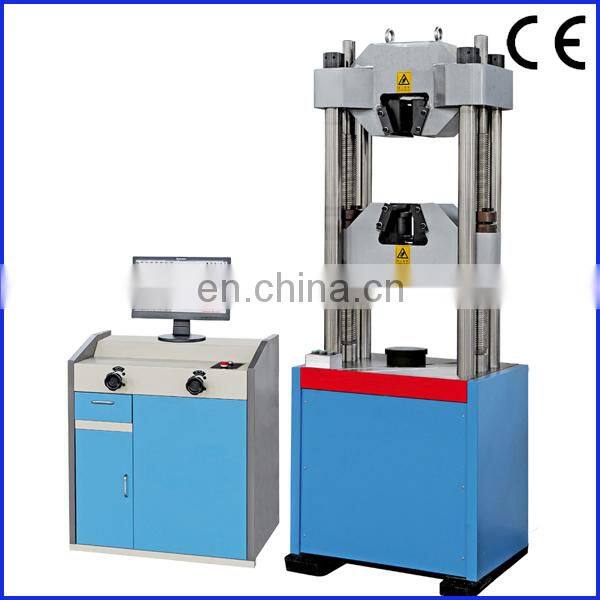

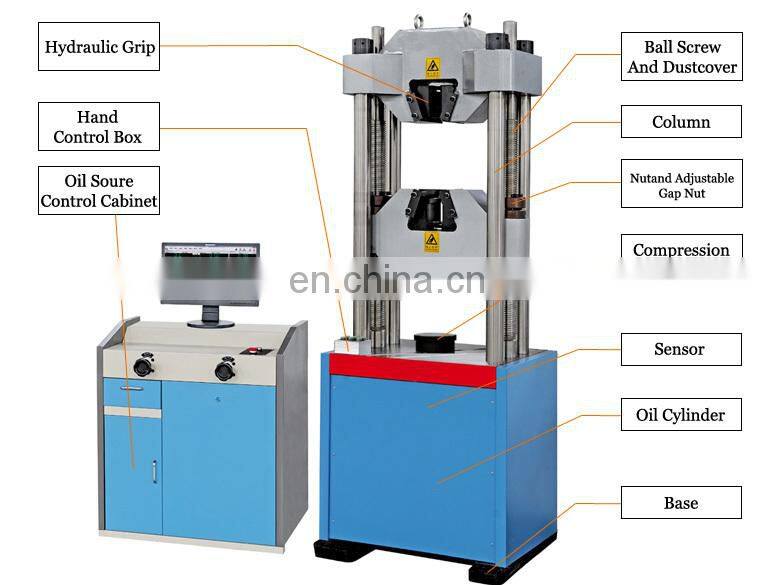

WAW-600D 600KN Computer Control Electro-servo Hydraulic UTM, 60Ton Universal Testing Machine
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal tes-
ting machine adopts hydraulic loading, Computer control, easy and convenient to operate.
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal tes-
ting machine is mainly used to execute the tension,compression,bending, flexural etc. test
for metal materials. Attached with simple accessories and devices, it can be used to test
wood, concrete, cement, rubber, and so on. It is very suitable for making test to different
metal or nonmetal materials under high toughness and hardness against extreme big load-
ing force.
Main specifications
Product name |
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal testing machine |
Model |
WAW-600D |
Structure |
6 column |
Control way |
constant stress uniform deformation constant displacement three closed loop control and program control |
Max.load |
600kN |
Load accuracy |
≤±1% /≤± 0.5% |
Load range |
2%-100%FS /0.4%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1%/± 0.5% |
Displacement resolution |
0.01mm |
Displacement error |
≤±0.5% |
Max. tension test space |
650mm (can customize) |
Max.Compression Test Space |
450mm (can customize) |
Clamping method |
Hydraulic clamp |
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal testing machine

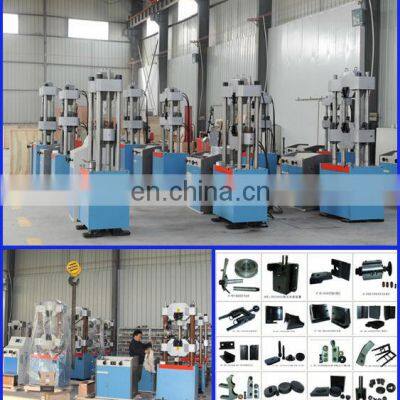

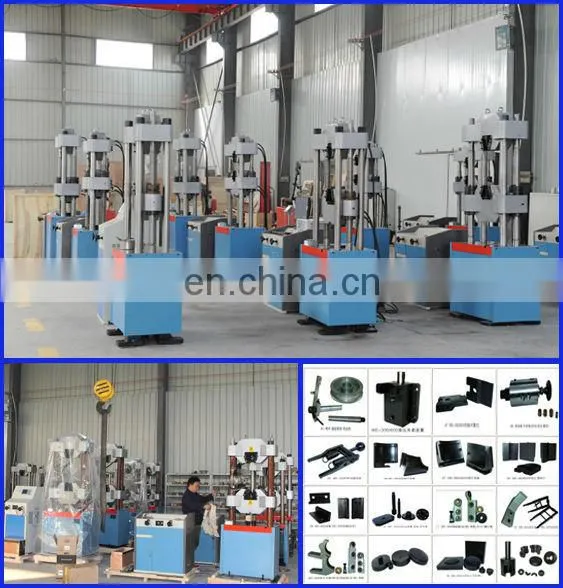

Factory
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal testing machine
Cooperative Partners
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal testing machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Cooperative Partner
WAW-600D 600KN Computer control electro-servo hydraulic UTM, 60Ton universal testing machine
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are
not in stock, it is according to quantity.
Q: Do you provide samples ?
A: No, because of value.
Q: What is your terms of payment ?
A: Payment 100% before shipment.
