Overview:

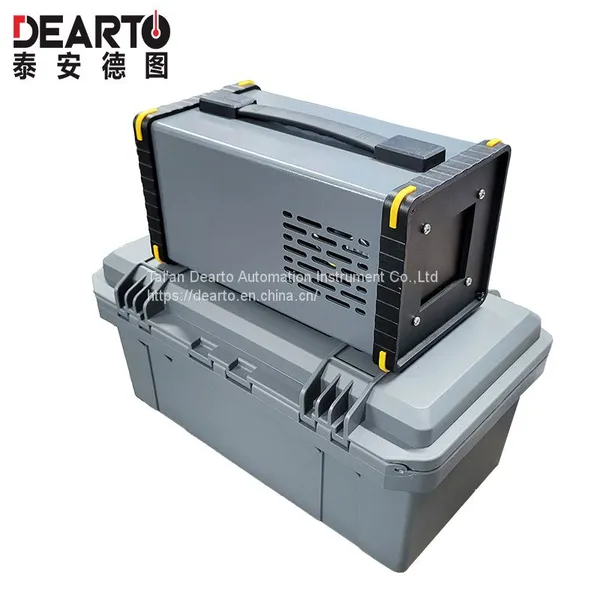

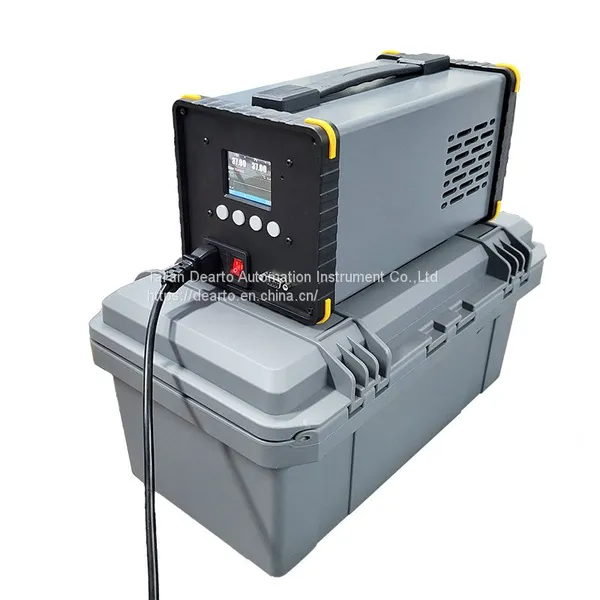

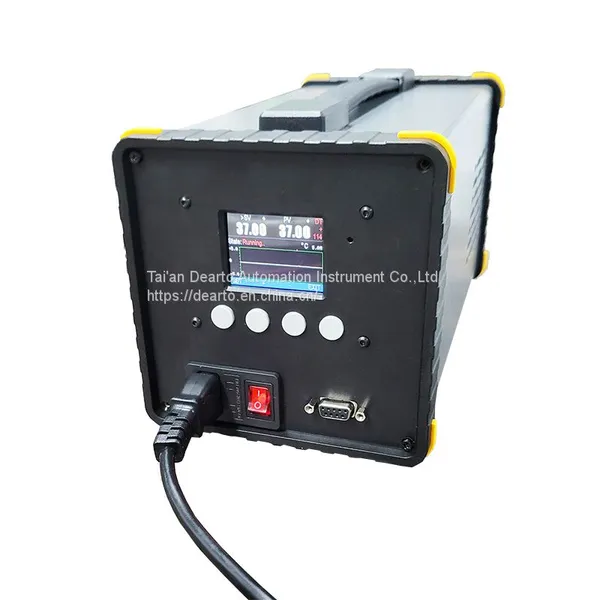

DTR-30BG is a small size blackbody calibration source utilizing a digital indicating temperature ambient 30℃ to 50℃ (86F to 122F). A 70x70 mm size ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provides readout.
APPLICATION
l Ambient temperature compensation for thermal image camera

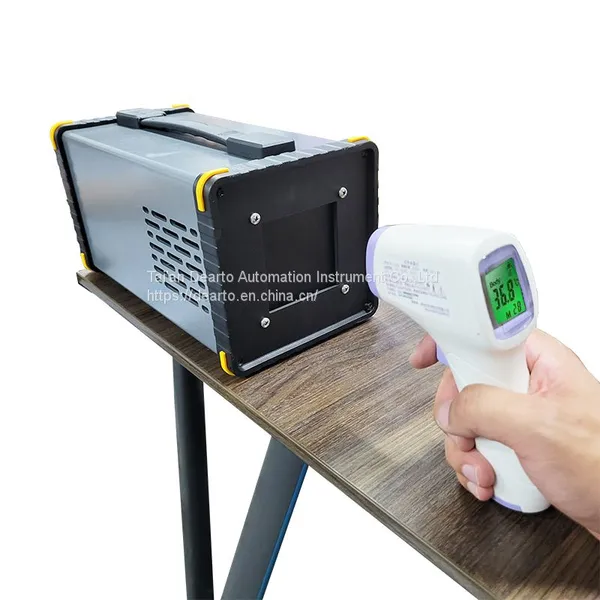

l Test infrared thermometer
FEATURE
l 0.05℃ high stabillity
l Calibrate from 30℃ to 50℃
l Quickly heat up to 50℃ in 10 minutes
l Target size is 70mm x 70mm
l Built-in temperature correction function
l Quick and easy operate

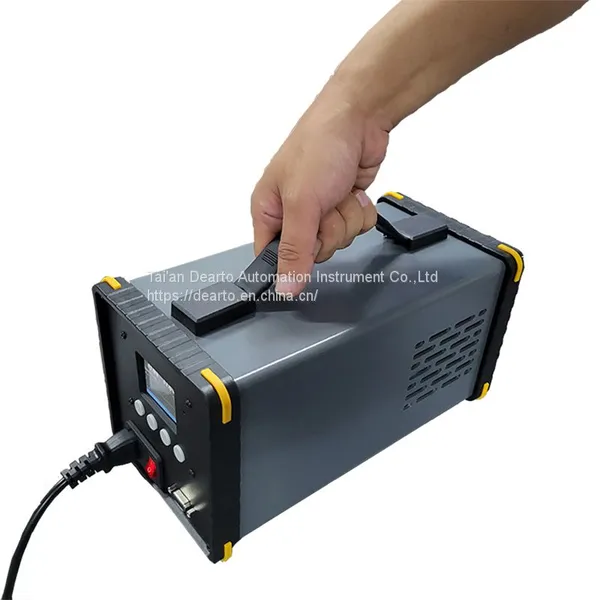

l Portable and light weight
SPECIFICATION
l Temperature Range: 30℃ to 50℃ (32F to 122F)
l Aperture size: 70 mm * 70 mm
l Emissivity: 0.97 ± 0.02
l Display accuracy: ± 0.05℃, (uncertainty is 0.2℃, K=2)
l Display resolution: 0.01℃
l Control stability: ± 0.05℃ after 10 minutes
l Blackbody uniformity: ± 0.05℃
l Heat cavity shape: Plat Plate
l Heat up time: 10 minute from ambient to 50℃
l Control method: Digital PID controller with readout
l Temperature sensor: Precison platinum RTD
l Power supply: 110-220V AC, 50Hz, 60W
l Interface: RS232
l Dimension: 250mm(D) x 140mm(W) x 180mm(H)
l Net weight: Appr. 2 kg
