Home > Instruments & Meters > Test Instrument > Test Machine > Ceramic Membrane Module

Ceramic Membrane Module

Name: Ceramic Membrane Module
Brand: Jiuwu
SKU: 166952005
Availability: InStock

US$ 150 - 600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Jiuwu

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Jiangsu Jiuwu Hi-tech Co., LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Jiuwu

Place of Origin China

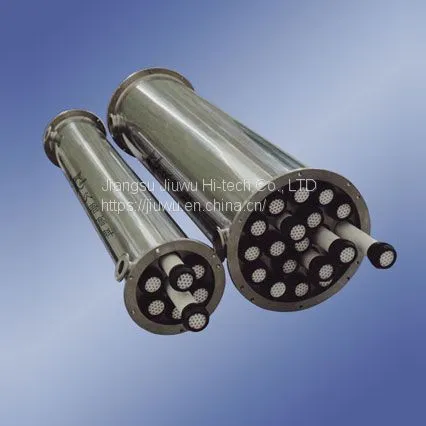

A ceramic membrane module is a complete unit composed of the ceramic membranes, housing, feed inlet, concentrate outlet, and permeate outlet. The ceramic membranes are arranged in parallel and vessel with housings.

JIUWU Ceramic Membrane Products

Housing is designed with standard connectors (flange, clamp, whorl coping) to attach with incoming and outgoing piping. This includes a manifold, which directs incoming flow to all ceramic membrane elements in the housing. The housings are produced from different types of stainless steel, coated steel or plastic, titanium, as required by the application. The sealing material holds elements in the weakest place in housings. A wide array of materials (EPDM, Fluoro rubber, silicon) is available by customer's needs.

Characteristic of housings

l Number of loading membrane elements: 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs

l Main body material: SUS304 (L), SUS316 (L), Titanium, carbon steel with rubber, PVC, FRPP

l Pressure level: 0-1.0Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4.0Mpa

l Matching membrane element length Diameter: 500, 1000, 1200mm / diameter: 25, 30, 40 mm

l Sealing material: EPDM, Fluoro Rubber, Silicon, PTFE,

l Interface: Flange, Clamp, Whorl coupling

l Standard: ISO, DIN / chemical grade, sanitary grade

Product Tags: Ceramic membrane module , ceramic membrane products
