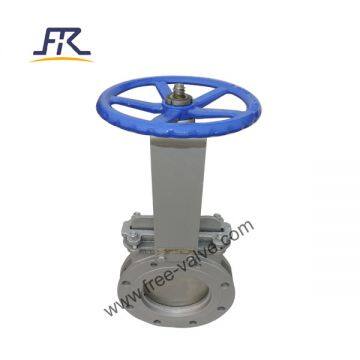

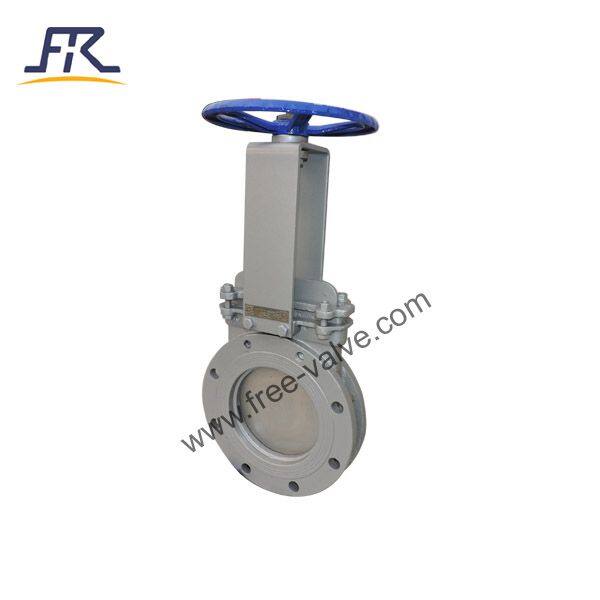

Heavy Duty Industrial Knife Gate Valve with High Performance

FREE-Valve’s Heavy Duty Industrial Knife Gate Valves are used on industrial pipeline for on-off operation. The structure of body and seat eliminates clogging shutoff for flow with fine particles.The disc bottom of knife gate valve is made into a blade shape with the purpose to cut some soft materials such as fiber,pulp or wood pulp, and it also serves favorable closing and opening.

Features:

1) Knife gate valve is composed of valve body and sliding gate.

2) The gate has sharp blade that can separated or cut the solid particles in the fluid media.

3) The polishing treatment on the gate surface strengthens its penetrating power and effectively guarantees the service life of both packing and valve seat.

4) The bottom of valve body is provided with the gate hold down device that can safely pressure the gate tightly on the valve seat in order to ensure valid tight-seal.

Technical Specification:

1) Size Range: NPS2~NPS48,DN50~DN600

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature: 0~200℃

4) Connection Type: Flange

5) Sealing material: Rubber,PTFE,Metal seal

6) Body Material: WCB

7) Disc material:Stainless steel

8) Pressure test:GB/T13927, API598

9) Face to Face: GB/T12221, API609

10) Valve body : GB/T12224,ASME B16.34

11)Operating Mode: Manual

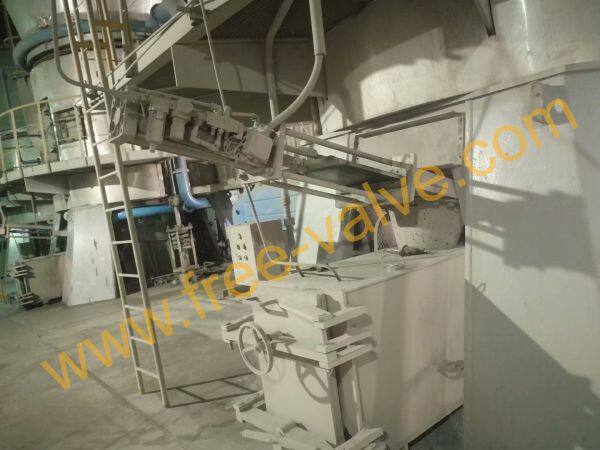

Application:

You will find FREE-VALVE’s Heavy Duty Industrial Knife Gate Valve in the following industry :

1. Mining, coal washing, iron and steel industry used for washing coal pipes, filter slurry pipes, discharging ash pipes, etc.

2. Purification system used for waste water, mud, sewage and water with suspended solids.

3. Paper industry used for any mixture of pulp, material and water of any concentration.

4. Power station ash removal used for slag slurry.

Model：FRZ73

Price terms:FOB,CIF,FCA,CFR

Price:100-500USD/set

Origin:China

Brand:FREE-VALVE
