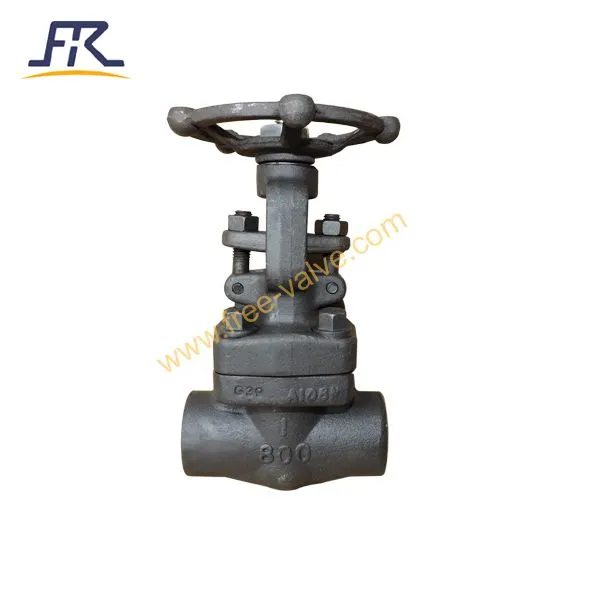

FREE-VALVE’s SW ends forged gate valve is compact, sturdy and ideal for high pressure and high temperature applications and consist of a disc and stem connection designed for regulated flow or on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising hand wheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Features
1. Efficient packing seal at backseat to ensure no leakage from stem.
2. Outside Screw & Yoke construction facilitate stuffing box maintenance.
3. Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.
4. Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.
Technical Specification
Socket weld end/Screwed end |
ANSI B16.11/ANSI B1.20.1 |
Design standard |
API 602, ASME B16.34 |
Pressure Range |
150LB to 2500LB |
Size Range |
1/4" to 2" |
Material |
Forged Carbon, Stainless or Alloy Steel Materials |
Connection type |
Socket weld end/Screwed end |
Working Temperature |
≤500°C |
Operating Type |
Hand wheel |
Sealing surface material |
Alloy |
Pressure test |
GB/T13927, API598 |
Face to Face |
GB/T12221,ASME B16.10 |
Application
FREE-VALVE’s SW ends forged gate valves offer high performance, reliability and safety. The gate Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.
Model:FRZ61Y
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:Free_Valve
Email:marketing@free-valve.com
Mobile:+8619937155563
Whatsapp:+8613460250295
