Home > Construction & Decoration > Wire Mesh > Barbed Wire > BTO 30 Galvanized Welded Razor Wire Mesh Fence , Razor Wire Fence With Diamond Hole Shape
BTO 30 Galvanized Welded Razor Wire Mesh Fence , Razor Wire Fence With Diamond Hole Shape
Negotiable
MOQ: 1 Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
XR
Place of Origin:
China
Type:
Barbed Wire Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
10 days
Related Products
-
High Strength Galvanized Anti-Climb Welded Barbed Razor Wire Mesh FenceNegotiableMOQ: 5 Rolls -
Razor Wire BTO-22 7KGS Concertina Razor Wire Coil Diameter 450MM 500MMNegotiableMOQ: 10 Rolls
-
High Security Welded Razor Wire Mesh With Blade Type BTO-22 For Fence Barrier In PrisonNegotiableMOQ: 100 Meters
-
Concertina Razor Wire Razor Blade Barbed Wire Fencing 500mm Coil DiameterNegotiableMOQ: 1 Ton
-
High Security Razor Wire Fence , Razor Blade Barbed Wire For ProtectionNegotiableMOQ: 1 Ton
Brand Name
XR
Place of Origin
China
Type
Barbed Wire Mesh
Surface Treatment
Galvanized
Razor Type
Other, BTO-30
Material
Iron Wire
BTO 30 Galvanized Welded Razor Wire Mesh Fence / Razor Wire Fence With Diamond Hole Shape
Benifits Of Galvanized Welded Razor Wire Mesh Fence
1 it is almost impossible to climb
2 high-strength steel core very difficult to cut off
3 powerful security fence barriers neat appearance
4 no secondary use, so he will not be stolen
5 extremely simple to install, needs three to four to install molding.
Welded Razor Wire Mesh Fence Detailed Spec
| Razor blade type and specification | |||||
Reference Number | Thickness (mm) | Wire Dia (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±1 | 21±1 | 100±1 |
Detailed Panel Size
| Hole size | 5*10cm | 15*30cm | 10*10cm | 7.5*15cm | 10*15cm | 15*15cm |

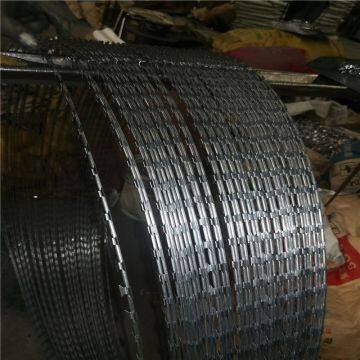

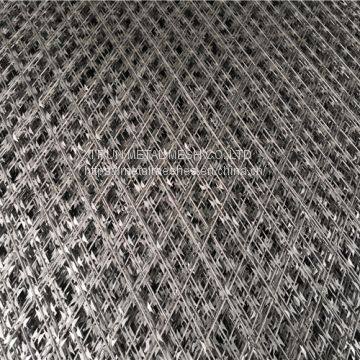

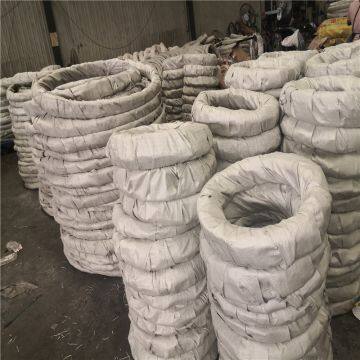

Welded Razor Wire Mesh Fence Image Shown
