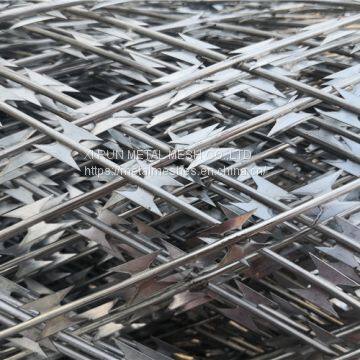

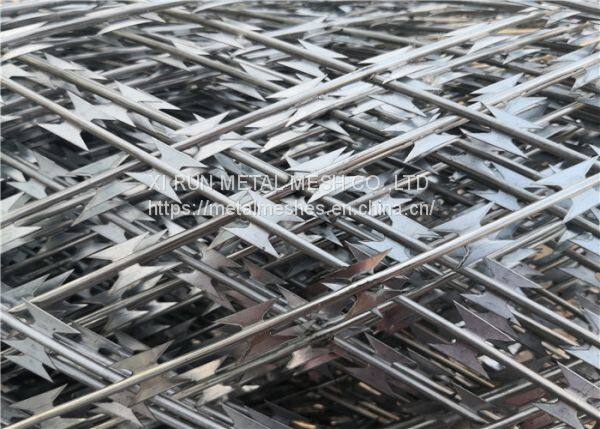

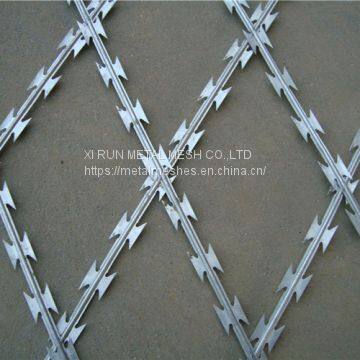

Welded Razor Barbed Wire 100MM Opening Panel Size 2Mx3M
Welded Razor Blade Wire Material
Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
Razor Blade Barbed Wire Introduction
Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Welded razor wire(razor mesh)
Razor Mesh is a versatile, high security fencing mesh designed to protect you and your property without marring the appearance of the property.
Razor Mesh Profile - Standard Panel Sizes
Two types: rolls or panels.
Panel size can as customer's requirment.
Roll size usually is 6m length or can be customized.
| Height x Length | 1.2m X 6m,1.8m X 6m,2.1m X 6m,2.4m X 6m |
| Square Hole Size | 100mmx100mm,150mmx150mm,200mmx200mm. |
| Diamond Hole Size | 75mmx150mm,100mmx200mm,150mmx300mm. |
| Galvanized Coating | 30-40g/m2, 50-60g/m2,80-100g/m2,200-250g/m2 |
| Pvc Coated | green,red,yellow,white ect. |
| Reference Number | Thickness mm | Wire Dia. mm | Barb Length mm | Barb Width mm | Barb Spacing mm |
| BT0-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BT0-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BT0-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BT0-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Welded Razor Wire Mesh Usage
Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.
