Concertina Razor Wire Razor Blade Barbed Wire Fencing 500mm Coil Diameter
Razor Barbed Wire Description
Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Razor Barbed Wire Specification
| Reference Number | Thickness mm | Wire Dia. mm | Barb Length mm | Barb Width mm | Barb Spacing mm |
| BT0-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BT0-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BT0-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BT0-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outer diameter | No.of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7M-8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 54 | 11M-15M | CBT-65 | Single coil |
| 500mm | 102 | 15M-18M | BTO-12.18.22.28.30 | Cross type |
| 600mm | 86 | 13M-16M | BTO-12.18.22.28.30 | Cross type |
| 700mm | 72 | 12M-15M | BTO-12.18.22.28.30 | Cross type |
| 800mm | 64 | 13M-15M | BTO-12.18.22.28.30 | Cross type |
| 960mm | 52 | 12M-15M | BTO-12.18.22.28.30 | Cross type |
Galvanized Razor Barbed Wire Processing:
high quality galvanized razor barbed wire is usually made of galvanized steel blade or stainless steel blade.
Two pieces of stainless steel razor wire or zinccoated razor wire can be bounded together
by clips to make it stronger. The spiral intersecting barbed wire presents anintersecting
shape after opening with beautiful outlook and practical property.

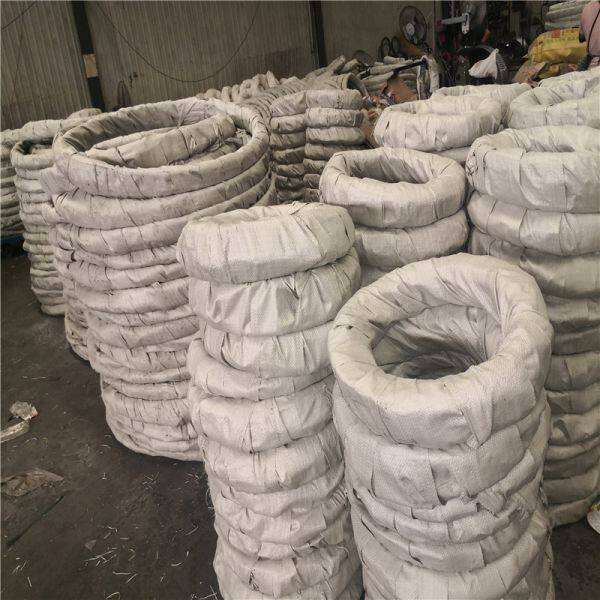

Galvanized Razor Barbed Wire Package
1) Plastic film inside, outside weaving bag.
2)Plastic film inside, outside hessian bag.
3) Paper carton packing
Galvanized Razor Barbed Wire Packing Details
