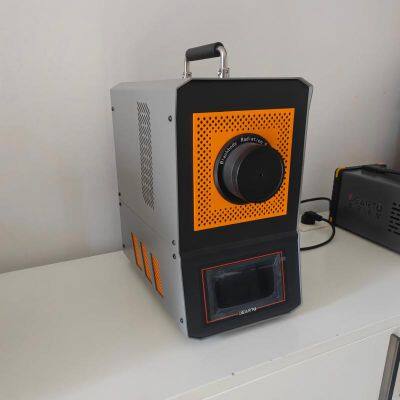

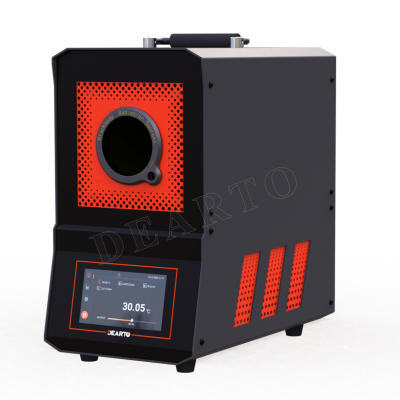

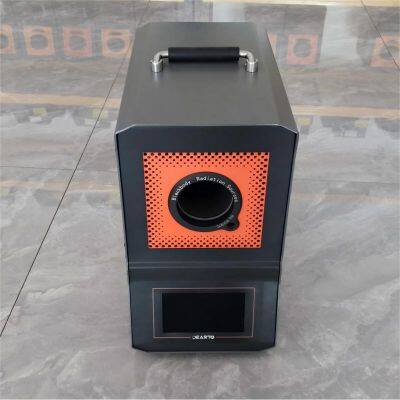

Help CenterPortable Blackbody Calibration Source Infrared Thermometer Calibrator
Related Products
-
Portable -42 to 150 Deg C Low Temperature Calibrator Dry Block FurnaceUS$ 2300 - 3500MOQ: 1 Piece -
Manufacturer Direct Sales Humidity Generator CalibratorUS$ 16000 - 22000MOQ: 1 Set
-
Portable Blackbody Temperature Source For Thermometer CalibrationNegotiableMOQ: 1 Piece
-
50~300 Deg C Portable Intelligent PID Heated Liquid Thermostatic BathUS$ 2500 - 3500MOQ: 1 Piece
-
Handheld Precision Multi-channel HygrothermographUS$ 1000 - 2500MOQ: 1 Piece
Products Description
The blackbody radiation source is a device that plays a key role in infrared calibration, temperature measurement and related scientific research and industrial applications.It produces stable and accurate blackbody radiation to provide a standardized radiation reference for the calibration and alignment of all types of infrared temperature measurement instruments, thermal imaging cameras and other equipment.Its high precision, stability and versatility have important application value in scient
Product Features
Full-range temperature resolution 0.01℃: 3-speed self-adjustment 0.01℃, 0.1℃, 1℃；6-10 point temperature calibration and correction: automatic linear fitting of SV and PV values to ensure high precision temperature control；Capacitive touch screen: intelligent human-machine interaction interface, multi-function window display；Adjustable rate of temperature rise: supports uniform temperature rise according to the set value to ensure the smoothness and controllability of temperature change；Stability tips: real-time display of operational data, intuitive understanding of the state of the equipment；
Chinese and English switching: with bilingual switching interface, adapt to internationalization needs；
Over-temperature automatic protection: hardware and software dual protection mechanism；
Communication mode: support USB, WIFI, WLAN, serial communication；
Temperature unit switching: support ℃, ℉, K unit switching；
Mobile APP control: support remote control and real-time monitoring of equipment operating status.
Product Paramenters
Model DTM-35NBG DTM-20NBG DTM-10NBG DTM-550BG DTM-1200BG
Temp. range -35 ℃~125 ℃ -20 ℃~125 ℃ -10 ℃~125 ℃ RT+10 ℃~550 ℃ 100°C ~ 1200°C
Control method Smart Touch Screen
Emissivity Better than 0.995
Temp. resolution 0.01°C 0.1°C
Target size (D × L in mm) Φ65mm × 160mm
Target shape Cylindrical / conical
Accuracy ±0.2 ℃@ -20℃ ≤ t ≤ 100℃ ± 0.3℃@ RT ≤ t ≤ 300℃ ± 0.3℃@ 100℃ ≤ t ≤ 300℃
±0.3 ℃@ 100℃＜ t ≤ 125℃ ± 0.5℃@300℃＜ t ≤ 550℃ ± 0.5℃@300℃＜ t ≤ 600℃
± 0.8℃@600℃＜ t ≤ 1200℃
