Motorized Ceramic Lined V Port Control Ball Valve

Name: Motorized Ceramic Lined V Port Control Ball Valve
Brand: FREE-VALVE
Price: USD $2500 - 25000 / Set

FOB Price

USD $2500 - $25000 / Set

2 Sets(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Shanghai Port
Payment Terms:T/T L/C D/P D/A
Delivery Detail:30 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	FREE-VALVE	Place of Origin:	China	Model Number:	FRT941TC
Material:	Casting	Application:	General	Structure:	Ball
Standard or Nonstandard:	Other, Control Valve	Pressure:	Medium Pressure	Power:	Other, Electric
Port Size:	DN50~DN 200, NPS2 ~NPS8	Media:	Other, Abrasive and corrosive medium	Temperature of Media:	Medium Temperature

Packaging Details

Ply-Wooden Box

Product Description

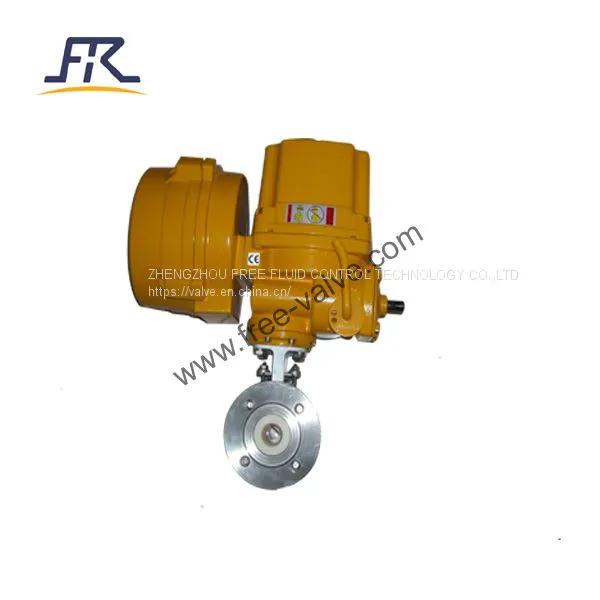

FREE-VALVE’s motorized Ceramic Lined V Port Control Ball Valves are designed with engineering ceramics as a control valve . The engineering ceramics internal parts provide excellent wear resistance and corrosive resistance , the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content. They are the best choice for your abrasive and corrosive working condition on site .

Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Electric operated save the cost of man power .

4.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

5. V port type ball valves have a good controlling performance and precision .

Technical Specification

Flange Standards ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range :DN50~DN 200, NPS2 ~NPS8

Connection type:Flange

Control performance : Equal percentage

Working Temperature ≤200℃

Operating Type:Electric

Sealing surface material:Engineering ceramic

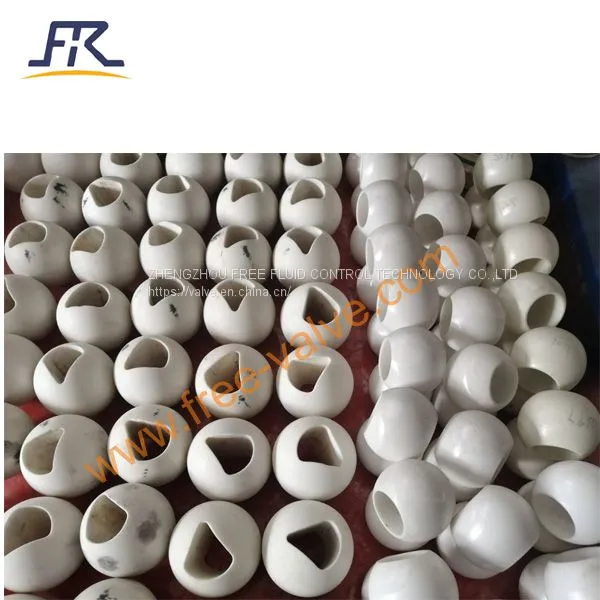

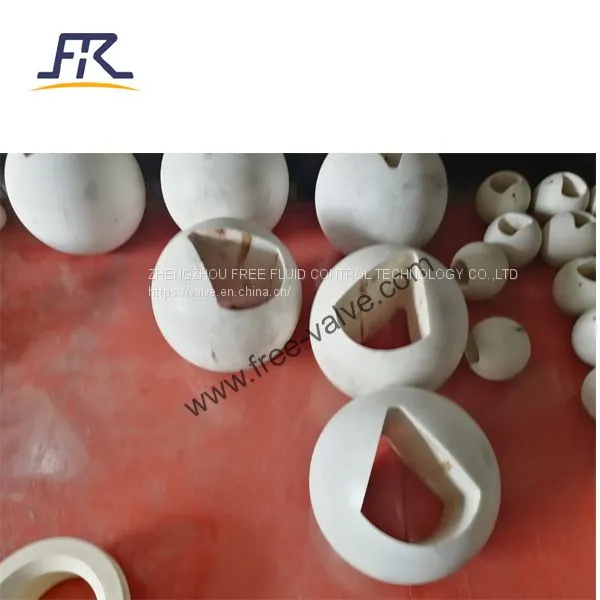

Ball material: Zirconia ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, ASME B16.10

Application

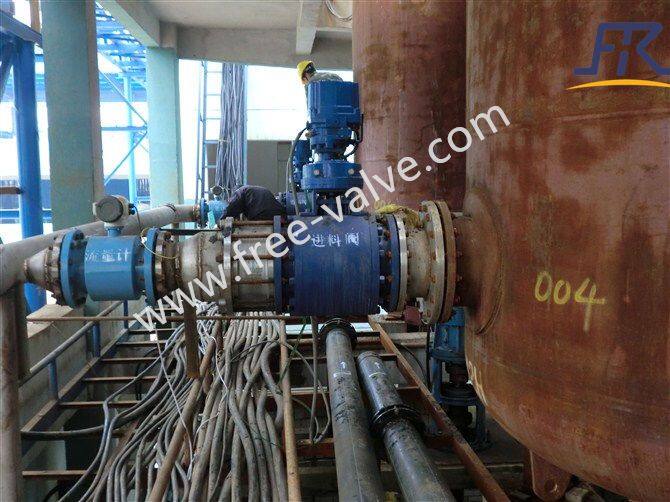

FREE-VALVE’s Motorized Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2 powder equipment.

Model：FRT941TC

Price terms:FOB,CIF,FCA,CFR

Price:2500-20000USD/set

Origin:China

Brand:FREE-VALVE

Zhengzhou Free Fluid Control Technology Co.,Ltd

Wechat ID:Free_Valve

Email&Skype :marketing@free-valve.com

Whatsapp:+8613460250295

Mobile:+86-19937155563

Company Profile

ZHENGZHOU FREE FLUID CONTROL TECHNOLOGY CO.,LTD

ZHENGZHOU FREE FLUID CONTROL TECHNOLOTY CO.,LTD specialized in manufacturing all kinds of high, medium and low pressure fluid control complete sets of flow control equipment, have over than 30 years industrial valve working experience .

The company has a young and energetic, the courage to open up the sales team, to take the advanced mode of operation, all-round attack, built a domestic and two international sales network, to establish and implement a marketing strategy "for customers to create value-added". FREE VALVE sales team to use the call center and e-commerce system to build a brand new marketing system, after-sales service also goes beyond the simple maintenance, warranty concept, to provide technical support to meet the user saving energy has become the core of the idea of selling.

The Board of Directors introduced a team of professional managers, and standardized management in accordance with the requirements of modern enterprise system. The company invested over 300 million, the establishment of a comprehensive area of municipal technology centers and science and technology personnel, and create a good research and living conditions for the introduction of high-level personnel, to increase the talent introduction and employee skills training efforts.

Today, in the Central Plains economic rise on the journey, FREE VALVE yesterday's success as into the starting line of the listed companies; fight dare to win FREE VALVE people is the full cast century corporate brand, in order to demonstrate the charm of oriental culture, and write FREE history a new chapter in triumph!
