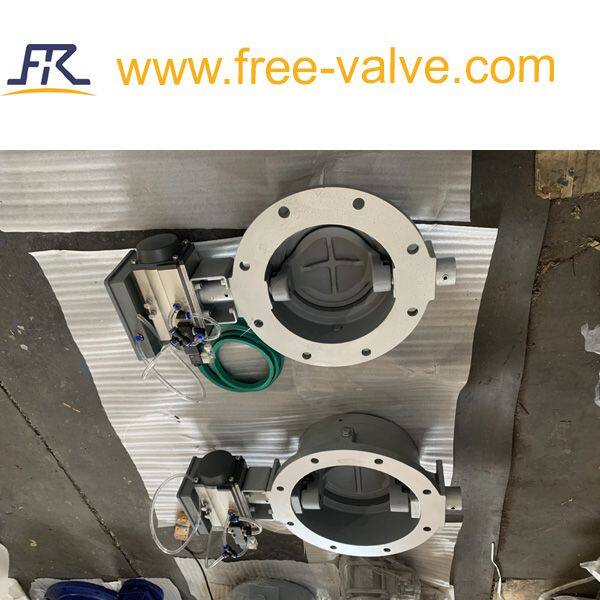

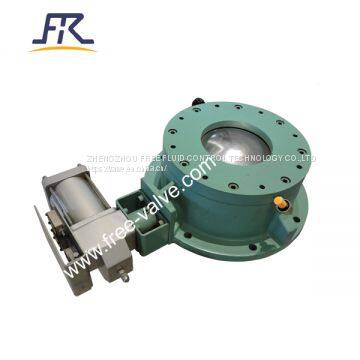

Pneumatic Swing Arc Valve

FREE-VALVE’s pneumatic swing arc valves are designed for ash handling system.They use a spherical-shape dome and an inflatable-seal to ensure a 100% airtight seal. swing arc valve is unique in its ability to open and close with a tight pressure seal in environment where abrasive material are passing.Pneumatic swing arc  valve can achieve operating reliability in severe applications .

Features

1. The dome is actuated through a quarter-circle arc via a rotary actuator or linear double-acting cylinder and linkage mechanism.

2. Tight sealing performance as Inflatable seal self-compensates for wear as the valve is used.The inflatable seal provides continuous wear compensation.

3. The inflatable-seal is only inflated when the valve is fully closed. This avoids shearing or jamming of particles between the seal and dome, and hence increases system reliability.

4.Quick-exhaust valves are used to ensure rapid opening and closing of the valve.

5.During operation, the valve provides a full-bore and unrestricted flow of material, which does not impact on the dome. This prolong service life of the valve. Also, the valve is “self-cleaning”.

6.Easy to maintenance and replacement,what you should do is change the inflatable-seal.

7.Different valve body materials are optional depending on customer need.

Technical Specification:

1) Size Range: NPS4~NPS16,DN50~DN400

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature: 0~350℃

4) Connection Type: Flange

5) Sealing material: Inflatable seats /Hard seats

6) Pressure test:GB/T13927, API598

7) Face to Face: GB/T12221, ASME B16.10

8) Valve body : GB/T12224,ASME B16.34

9)Operating Type: Pneumatic

Application:

FREE-VALVE’s Pneumatic swing arc valves are suitable for abrasive material with abrasive particles,such as power plants ,ash ,mineral processing ,food industry ,biomass ,steel industry,material handling ,pharmacy etc .

Model:FRYDF-10C

Price:1000-5000USD/set

Origin:China

Payment terms:TT,LC

Price terms:FOB,CIF.FCA,CFR

Delivery time:30 days

Brand:FREE-VALVE
