Honey processing machine instructions

Honey processing machine main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products.

The working priciple mainly goes through the following four steps:

 Firstly,the original honey start to coarse filtration;

 Secendly, the honey start preheating and stirring;

 Next,the honey has a fine filteation;

 finally,the honey starts to concentrate at low temperature.

Honey processing machines technical parameters:

 Heater, concentrated cans, water jet vacuum device, working platform components.

1.5t honey processing machine information:

600 mm diameter                  The height to 600 mm

The overall volume of 140 L         The effective volume of 120 L

A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)

Vacuum pump SK - 0.8     voltage 380 v     power 1.5 KW

: preheating tank motor slowdown micromotor voltage 220v  power 180w ratio 25   60r/min

Production capacity:  1.2 to 1.5 t per day

Concentrated temperature: 50 ℃ or less

Vacuum: 0.092 Mpa or less          The maximum total power: 16Kw

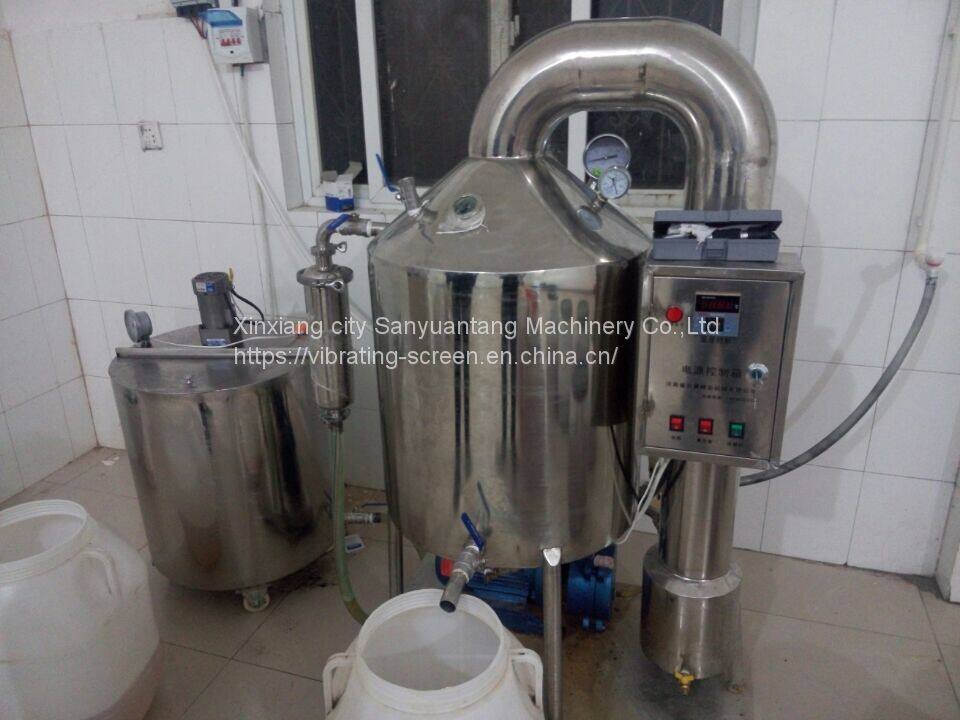

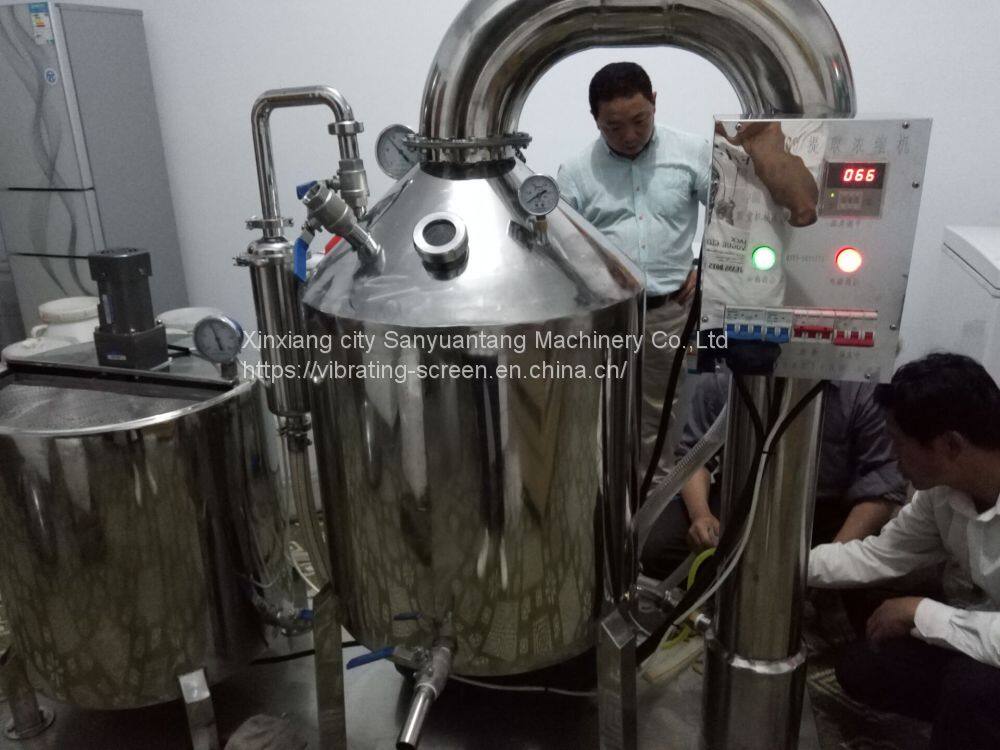

Production shows:
