Help CenterHigh Output Square Tumbler Sand Sifter Screen Cement Vibrating Sieve
Related Products
-
High Efficiency Square Tumbler Vibrating Screen Ore Particles Sieve MachineNegotiableMOQ: 1 Set -
Sand Sieve Machine for Separating Soil Screening MachineNegotiableMOQ: 1 Set
-
Square Vibrating Screen Mining Separator MachineNegotiableMOQ: 1 Set
-
Square Vibrating Screen for Sieving Dry Sand Sifter MachineNegotiableMOQ: 1 Set
-
Square Vibrating Sifter for Sand/Mining Sieve Shaker/Screening MachineNegotiableMOQ: 1 Set
Square tumbler screen introductions:
FBS -1 Square swing screen is a high-efficiency screening equipment specially designed for high precision and large output. It is widely used in chemical, non-ferrous metals, food, quartz sand, abrasive and other industries.
Features:
1,The grading ability is super strong, and the screening of 9th layer 10th grade or 11th layer 12th grade is completed once.
2,The fine screening area is super large, and the area of one sieve machine is about 50 square meters, and the production capacity is super strong.
3,Unique multi-layered design, multi-purpose machine.It is convenient to replace the screen mesh.
4,The sealing effect is very nice.
Technical parameter:
|
Model |
Screen mesh size |
Screening area (㎡) |
Screen angle |
Layers |
Powder (kw) |
Number of rotations |
Screen box stroke (mm) |
FYBS1536 |
1.5m×3.5m |
4.5-9 |
5-8 |
1-10 |
5.5 |
180-260 |
25-60 |
FYBS2040 |
2.0m×4.0m |
8-9 |
5-8 |
1-10 |
7.5 |
180-260 |
25-60 |

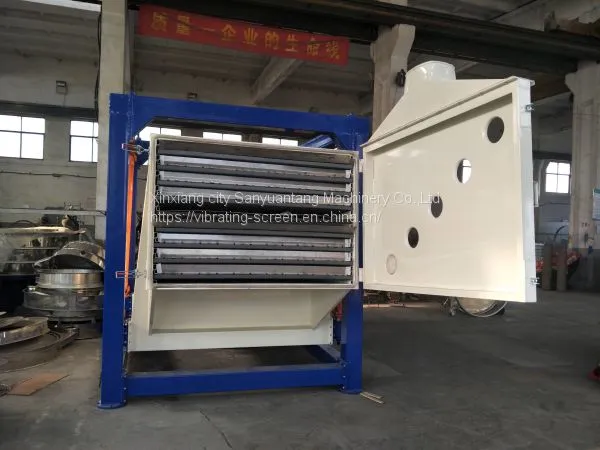

Production shows:
