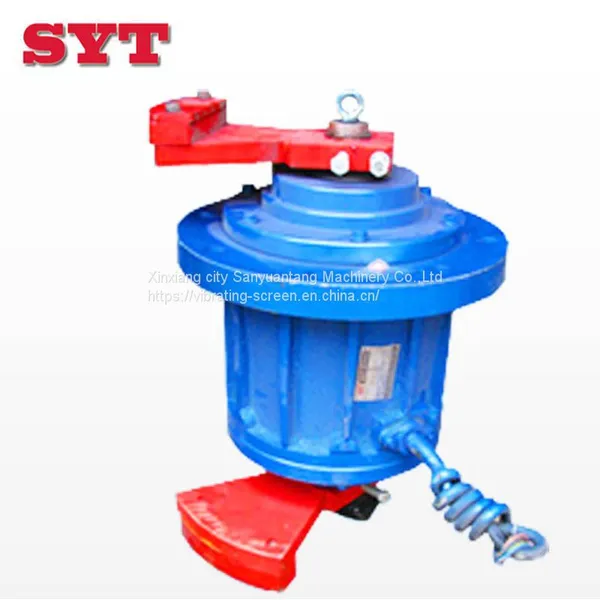

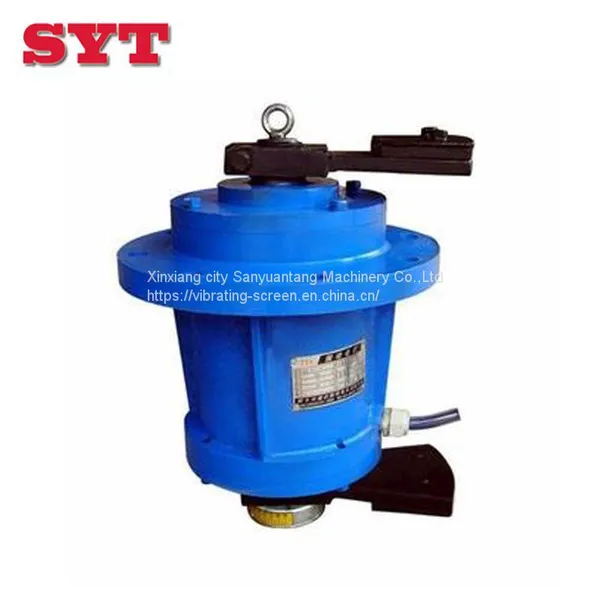

Help CenterYZUL Vertical Electric Vibration Motor in Separator Machine From Sanyuantang
Related Products
-
High Frequency Vertical Electric Three Phase Vibration Motor in Vibrating ScreenUS$ 300 - 500MOQ: 1 Set -
Chins Factory Supply Ultrasonic Vibrating Screen for Sieving Quartz Sand Filter MachineUS$ 1200 - 1700MOQ: 1 Set
-
Sanyuantang Circular Ultrasonic Vibrating Screen for Separating Protein Powder Sieve Shaker MachineUS$ 1200 - 1700MOQ: 1 Set
-
Sanyuantang Factory Supply Horizontal Airflow Sieve Starch Vibrating ScreenNegotiableMOQ: 1 Set
-
High Capacity Cooling Water Vibrating Spiral Conveyor for Lifting Grain ElevatorUS$ 1000 - 6000MOQ: 1 Set
Production Description
Vibrating motor is the power source and vibration source in combination with the source of vibration, the vibration motor is on both ends of the rotor shaft installed a set of adjustable eccentric block, the centrifugal force generated by high speed rotation shaft and eccentric block vibration force.
Vibration motor application:
1.Sieving equipment :linear vibrating sieve ,sieve mining ,coal washing sieve ,sieve abrasives,chemistry sieve.
2.Conveying equipment :vibration conveyor ,conveyor drying vibration ,vibration vertical lifting machine.
3.Feeding equipment :vibratory feeder, vibrating hopper machine ,vibration mining machine ,vibration filling machine .
4.Other equipment :vibration fluidized bed,vibration platform.
Vibration motor features:
1.Light machine weigh ,small volume ,easy constrction,convenient installation and repairment
2.Stable frequency ,low noise vibrating generated by stationary revolution ,swift start ,stable stoping;
3.Full sealed construction ,applied in any working circumstance which has no explosion-proof requirement;
4. Exciting forcecanbe adjusted infinitely;
5. Multiaspect installation for single and multi machines.
Vibration motor technical parameters:
a.Voltage customized
b.Frequency 50Hz or 60Hz
c.Polarity 2, 4, 6 and 8 standard poles
d.Functioning Continual service (S1)
e.Power 0.1KW-20KW
f.Speed 700rpm-3000rpm
g.Insulation class B, F
h.Level of protection IP55
i.Electric motor Three-phase asynchronous motor
j.Environmental temperature Less than 40 degree Centigrade
k.Altitude No more than 1000 meters
l.Install method Any direaction

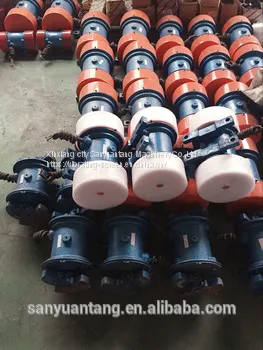

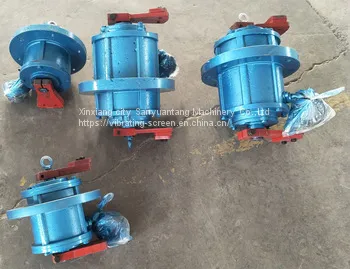

Production shows:
