Product:

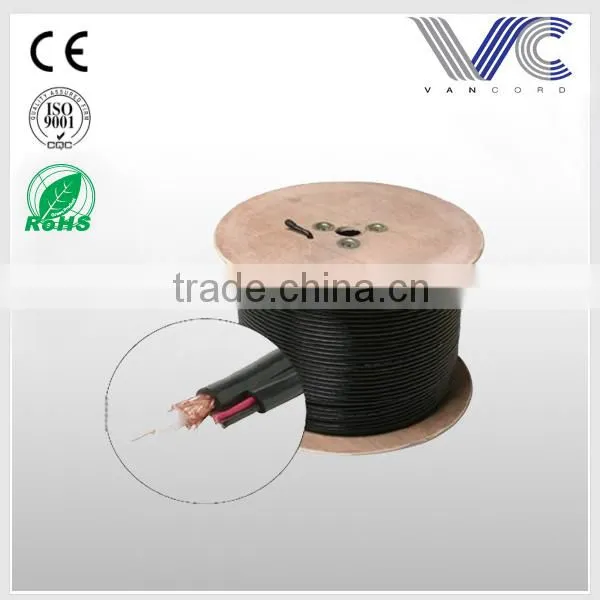

Bulk RG59 + Power Siamese Cable, 500 ft, Commscope Rg59 Cable
Specifications:
CONDUCTOR |
MATERIAL |
CCS |
Nom. Dia. |
0.65mm |
|
DIELECTRIC |
MATERIAL |
Foamed PE |
Nom. Dia. |
3.7mm |
|
SHIELD |
MATERIAL |
Al foil+128*0.12mm Al-mg braiding |
Coverage |
95% |
|
JACKET |
MATERIAL |
PVC |
Nom. Thick |
0.8mm |
|
Nom. Dia. |
6.3mm |
| POWER CABLE SPECS | [ 2*(20*0.18CCA + 1.5PVC) + 3.6PVC ] BLACK |
Nominal Impedance(Ohm) |
75±3 |
Nominal Velocity of Propagation(%) |
85 |
Nominal Capacitance(pF/m) |
50 |
Sparker Test(VAC) |
4000 |
SRL(dB) |
20 |
Attenuation (68ºF/20ºC) | ||
Frequency(MHz) |
Maximum(db/100ft) |
Maximum(db/100m) |
5 |
0.58 |
1.9 |
55 |
1.6 |
5.25 |
187 |
2.85 |
9.35 |
300 |
3.55 |
11.64 |
450 |
4.4 |
14.43 |
600 |
5.1 |
16.73 |
750 |
5.65 |
18.54 |
865 |
6.1 |
20.01 |
1000 |
6.55 |
21.49 |
| 1 ) Inner conductor | Tinned Copper , Bare Copper , and Copper Clad Steel available |
| 2 ) Al-foil | unbonded AP , Bonded AP , APA , Bonded APA available |
| 3 ) Braiding material | Al-mg , CCA , Bare Copper and Tinned Copper wire available |
| 4 ) Braiding wire diameter | 0.12 , 0.13 , 0.14 , 0.15 , 0.16mm available |
| 5 )Braiding net | 80 , 96 , 120 , 128 , 144 and more available |
| 6 ) Braiding coverage | Between 30- 97% available |
| 7 ) Jacket material | PVC , PE Flame retardant , UV , Rohs , available |
Application :
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
3. For security systems
Incore Terms:
USD $1-$5000: EXW
USD $5001-$10000: FCA
Above USD $10000: FOB
Packing details:
1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.
