Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp

Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp thumbnail-1
Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp thumbnail-2
Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp thumbnail-3
Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp photo-1
Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp photo-2
Frankever Lcd Display Digital Auto Ranging Digital Multimeter With 600a Current Testing Clamp photo-3
US$ 11.9 - 12.3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
FRANKEVER
Place of Origin:
Zhejiang, China
Model Number:
WH5000A
Contact Supplier Request Quote Chat Now
Hangzhou Frankever Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FRANKEVER
Place of Origin Zhejiang, China
Model Number WH5000A
Operating Temperature -20C~1000C/-4F~1832F ±2.0%
Dimensions 188x81x48mm
Measuring Inductance Range NONE
Measuring Capacitance Range 60n-600n-6u-60u-600u-20m/60mF
Measuring Resistance Range 600-6K-60K-600K-6M-60MΩ
Measuring Voltage Range 60m-600m-6-60-600V ±0.5%
Measuring Current Range 600u-6000u-60m-600m-10A ±1.8%
Product Description

Product Application


Characteristic

All round observation Large LCD
Easy to read in dark condition with blue backlight
Data hold function for easy reading after measurement
With MAX and MIN value display
Double fuse and anti-burn design, safe and reliable
With frequency and temperature test function
With PVC shockproof holster

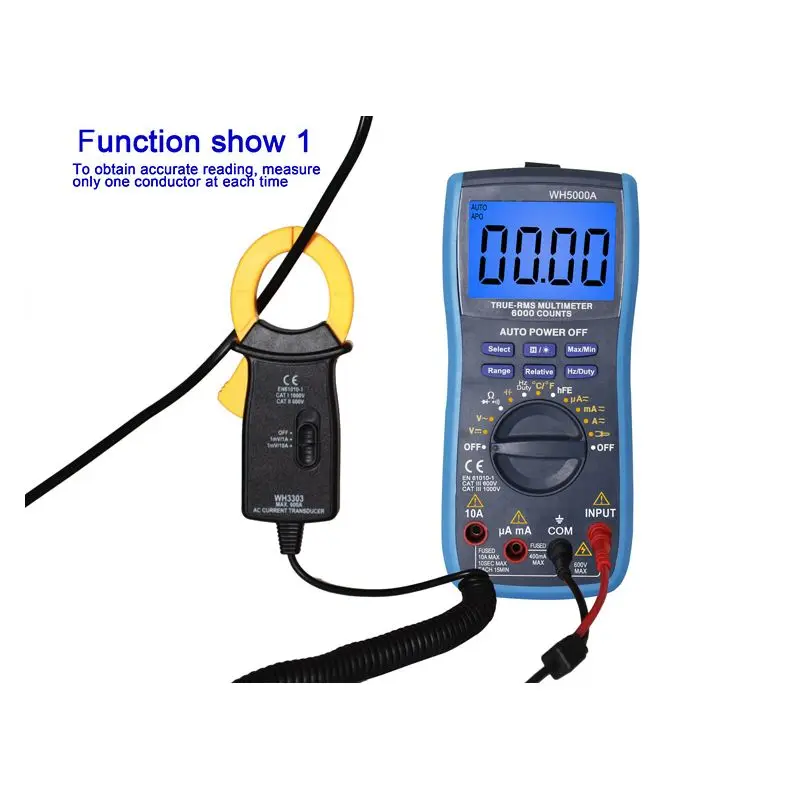

Can measure high current with clamp meter WH3302 or WH3303
with 2mF capacitance test
A magnetic button hook is convenient to adsorb on the surface of the iron object.



DCV: 60m-600m-6-60-600V ±0.5% ACV: 60m-600m-6-60-600V ±1.0% DCA: 600u-6000u-60m-600m-10A ±1.8% ACA: 600u-6000u-60m-600m-10A ±2.0% Resistance: 600-6K-60K-600K-6M-60MΩ ±1.0% Capacitance:60n-600n-6u-60u-600u-20m/60mF ±5.0% Frequency: 9.99~9.99MHz ±3.0% Temperature: -20ºC~1000ºC/-4ºF~1832ºF ±2.0% Duty cycle: 0.1%~99.9% ±0.1% DCA(with extra clamp meter WH3302 or 3303):0A-600A ±1.5% ACA(with extra clamp meter WH3302 or 3303):0A-600A ±1.5% LCD size: 64x42mm Max display: 5999 Low battery indication: yes Overload protection: yes Auto range: yes Diode test: yes Transistor test: yes Continuity buzzer test: yes Auto power off: yes Data hold: yes Backlight: yes Power supply: one 9V 6F22 batter Product size: 188x81x48mm Product weight: about 357g (with holster) Standard accessories: meter (with battery), holster, multi-function socket, test lead, thermocouple, manual 600A clamp jaw （optional）


Factory
Packing & Delivery
PACKING
color box
Quantity/Export Carton
20PCS/CTN
Export Carton Demension
35.5x32x44CM
G.W./N.W.
13.6/12.6KG
