Product Application
Now a lightweight wall panel machine is totally new and hot in the world. It is now replacing traditional building materials in the structure. attached is an apartment under construction which is just built by our machine produced lightweight wall panels.
EPS cement wall board machine is suitable for producing cement EPS wall panel,hollow cement wall panel,solid wall panel.The panel can be applied to wall,roof ,etc. Plate has the advantages of light weight, high strength, thermal preservation, heat insulation, waterproof, radiation protection and so on.
Product Specifications | ||||||
1.Capacity: | 20,000sqm~100,000sqm per year |
2.Thickness: | 80-200mm thickness. Or customize the size you like |
3.Length: | 2400~3000mm |
4.Width: | adjustable |
5.Raw material: | Cement; EPS; fly ash; sand; calacium silicate board. |
6.Popular sizes: | Following are the popular sizes. You can adjust as your requirement. We will design specially for you. |
Size :2400-3200 mm *610*75-200 mm
Automatic Degree: Automatic

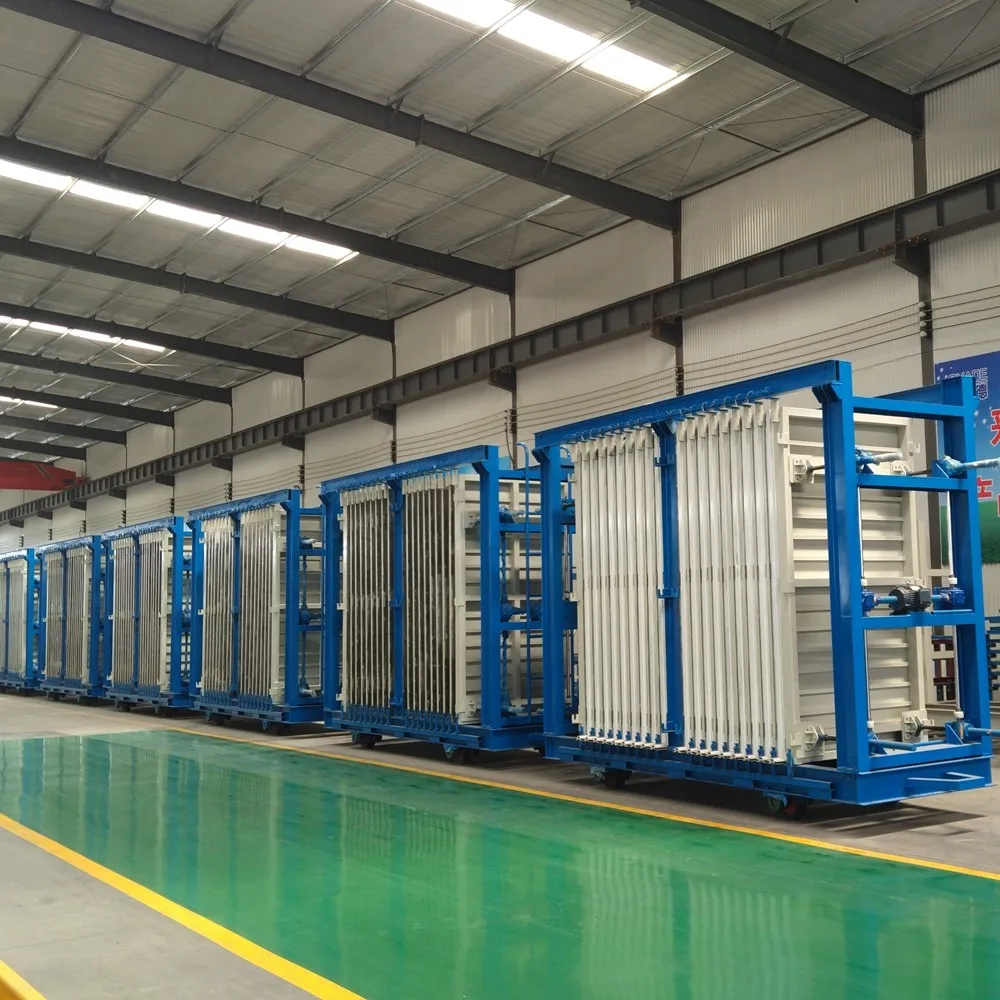

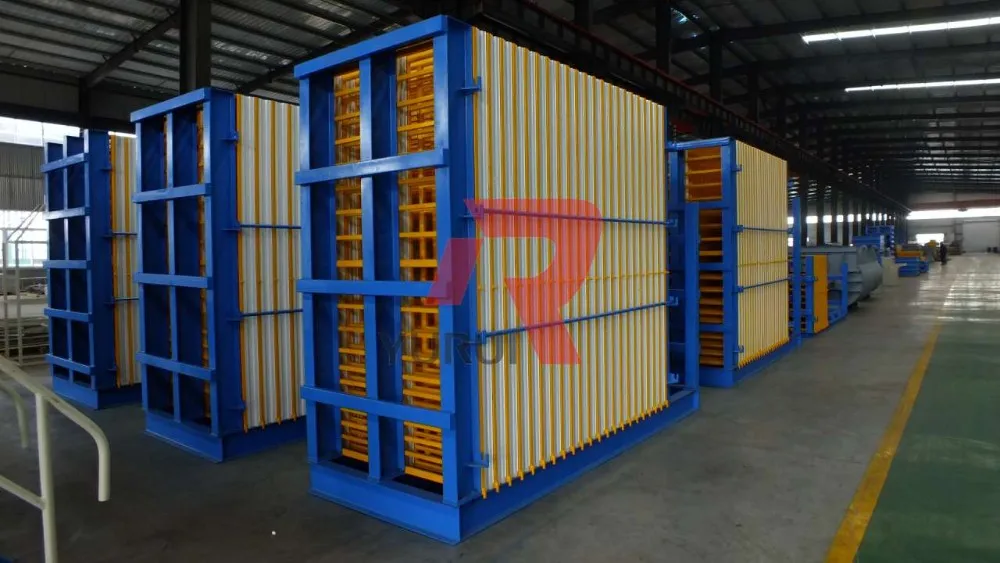

Feature : 1.large capacity than horizontal mold car
2.Double function ,can produce both solid wall panel and composite wall panel .
3.Small land space .vertical type mold car can save land area

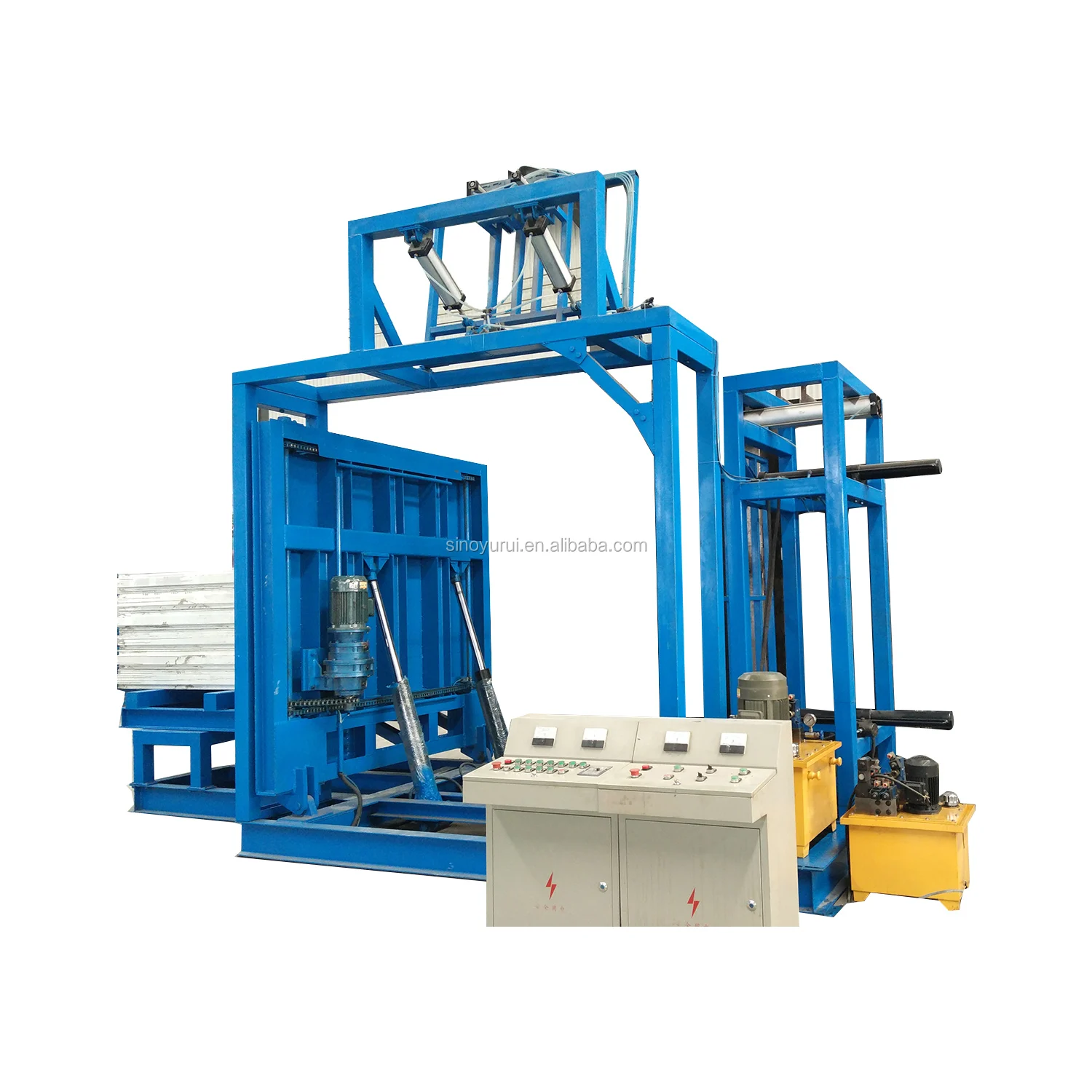

4.About panel release system : each time can release 20 pieces panel
Raw material | cement, sand, fly ash, eps, ceramsite, chemical additives | ||||||
Advantage | higher bending strength, lightweight, waterproof, fireproof, heat insulation, good sound insulating effect, lower production cost | ||||||
Application | internal and external non load bearing, integrated housing, villas etc | ||||||
Raw material | Calcium silicate board, cement, sand, fly ash, eps, ceramsite, chemical additives | ||||||
Advantage | higher bending strength, lightweight, waterproof, fireproof, heat insulation, good sound insulating effect, lower production cost | ||||||
Application | internal and external non load bearing, integrated housing, villas etc | ||||||

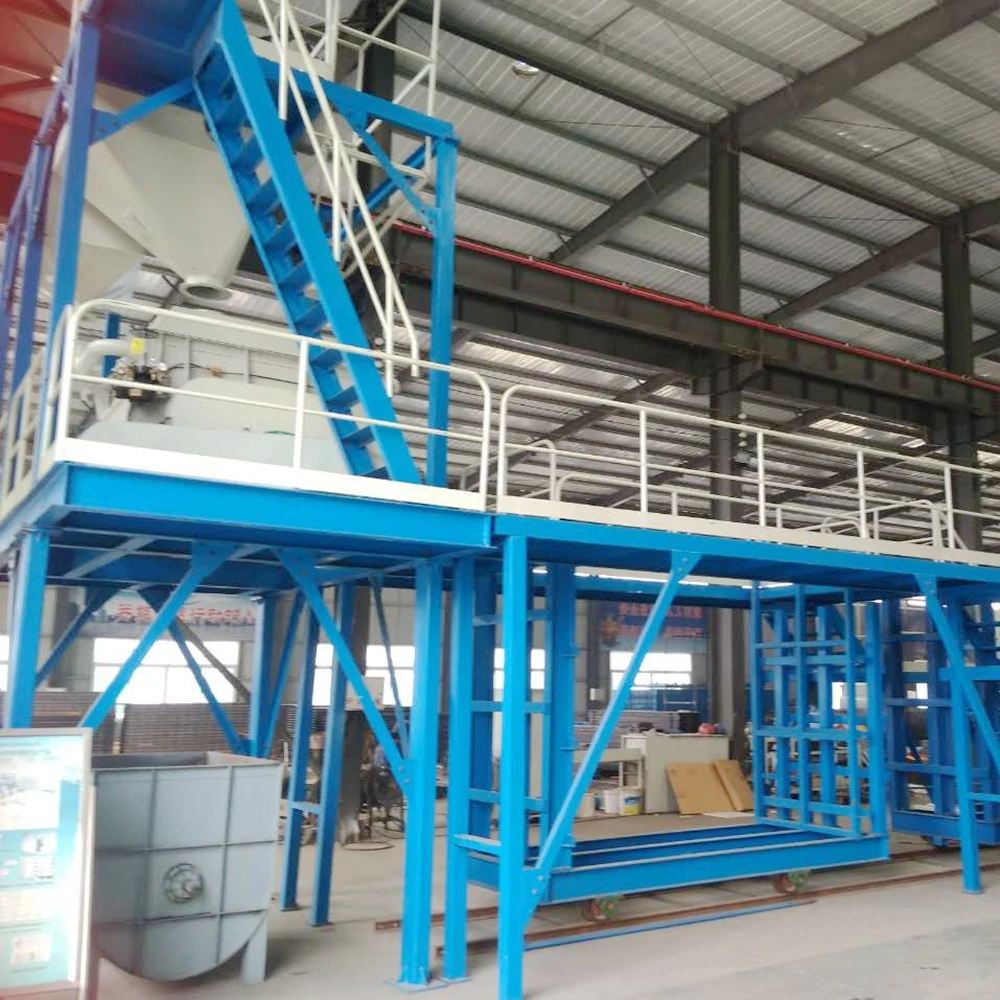

Machine part: Automatic Material feeding and metering system
Introduce :1.Cement ,flyash,EPS particels will be metering and feeding into the mixer automatically to save the labors and improve
working efficiency also it is more environmentally .
2.Sand (or ceramsite /slag /pumice stone other agregate) and additives will be feeding into the mixer by lifting hopper
2.Mixing platform (necessary),
3.Casting platform (necessary),
4.Electric control cabinet platform ,
5.Auxiliary Platform /Calcium Silicate Board installation platform
Besides necessary platform , other platform we can equip as client requirement .

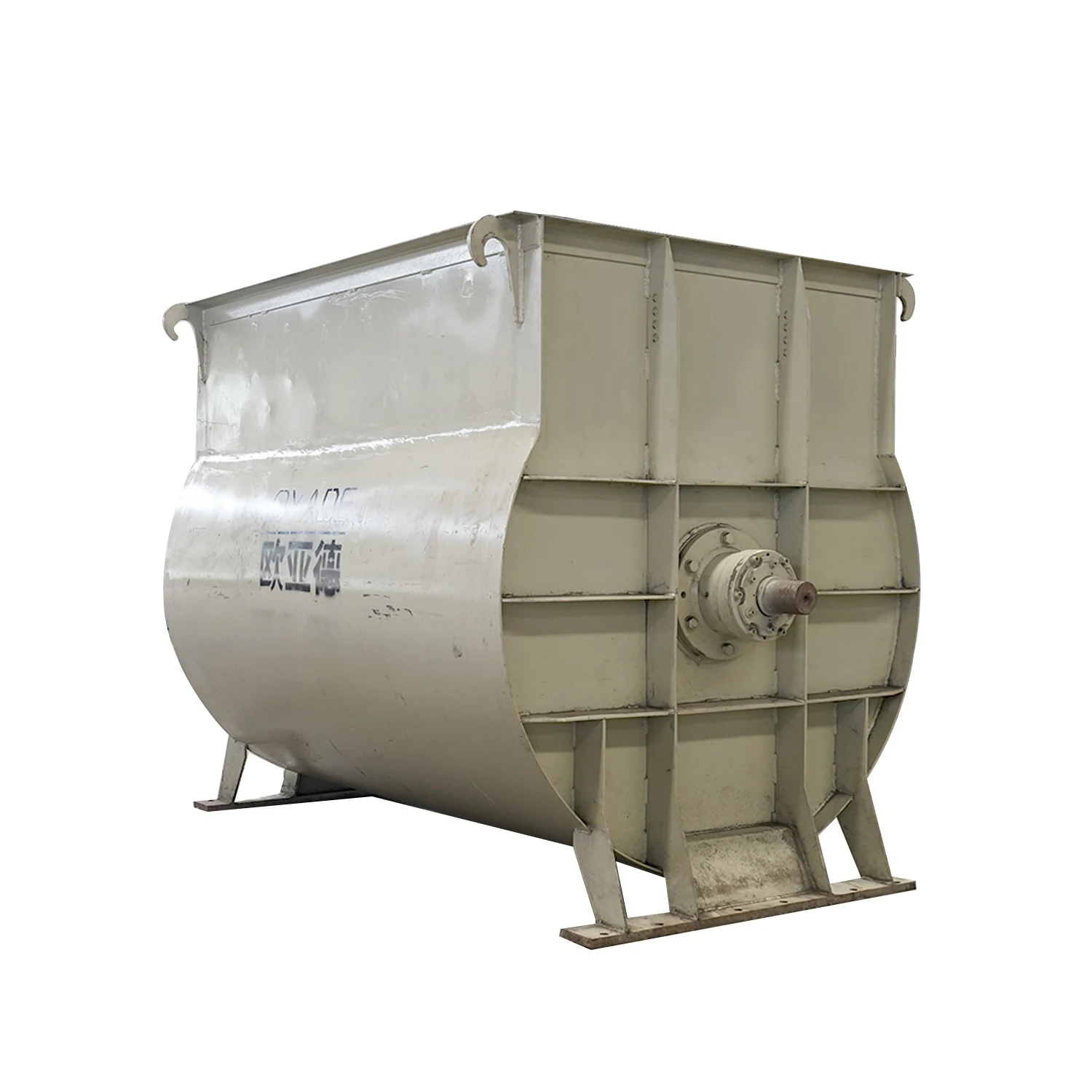

Machine part: Double-shaft mixer
Capacity available :1.2/1.5/2.0/2.5/3.0/3.5 sqm
Introduce:the mixer capacity is related to the mould car quantity , so we will equip the mixer after confirm the capacity with
client . so that can makre sure our proposal is suit to you .
Features: the double shaft is to blend the raw material more even ,also save time . different capacity to satisfy different
client's requirement .
Unique feature :If the mould car quantity is more than 10 units ,then we will equip the second mixing mixer, so as to save the
mixing time of the first mixer and improve working efficiency ,increase productivity .
Note: normally use one-shaft mixer ,only large capacity will equip second mixing if small capacity ,second storage hopper is enough .

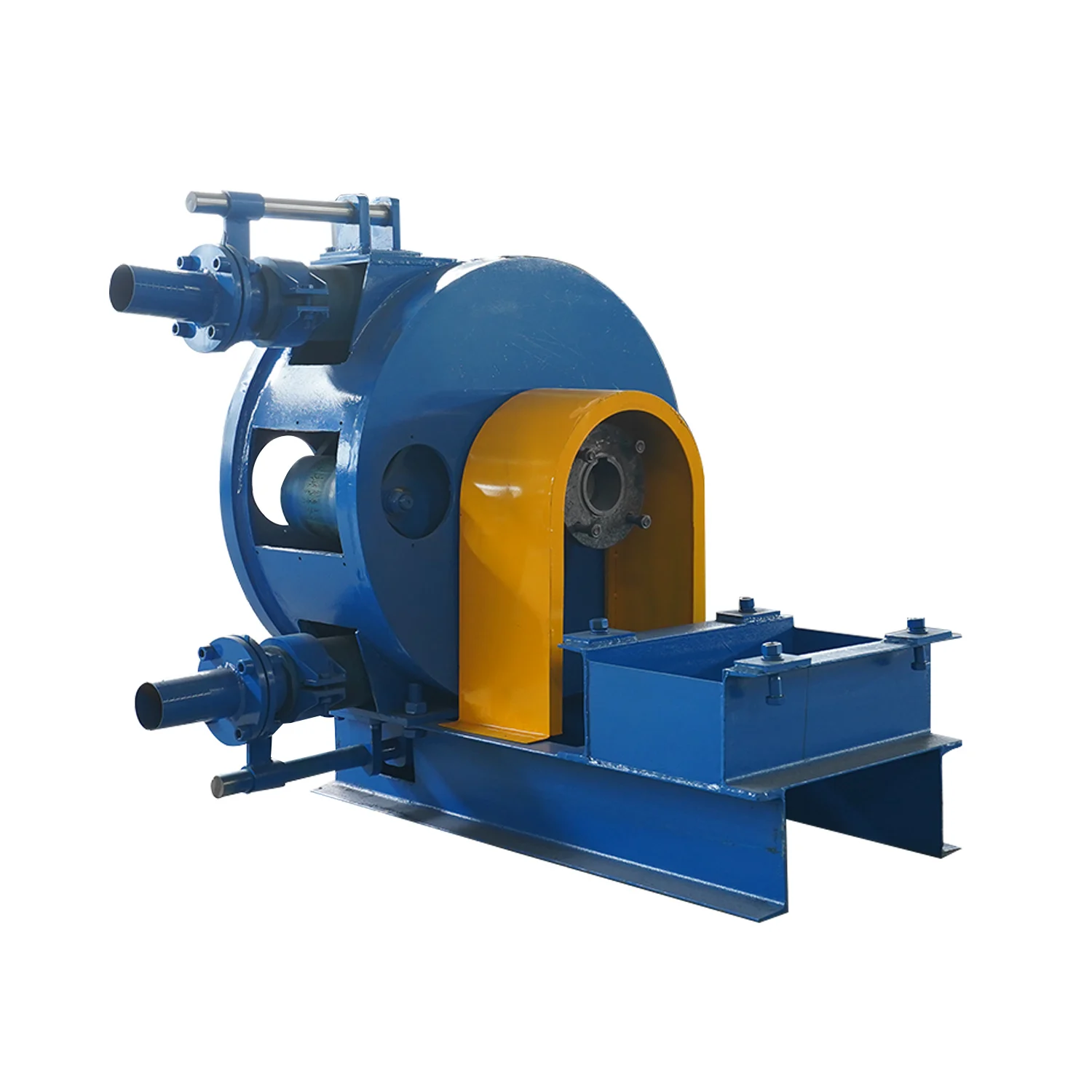

Machine part:Pump+pipe
Introduce : After the mixer mix the raw material well then the workers use the pump and pipe to cast the slurry into the mould car
Features:The pump is to make the pouring more even, no need to vibrate, and the working platform will be clean and the material will not be wasted.
Machine part:The Boiler system
Introduce:The boiler will supply heat for EPS foam
Feul:coal (need burner),gas ,oil
Introduce:It will foam the eps by boiler supply heat and foam the EPS into the requested size .
Note: If you can buy foamed EPS particles locally ,then this parts no need .
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We have our whole after-sale service system.
Free design------We will provide free design for you, including plant layout,machinery diagram, equipment list, etc
Labor shifts------arrangement suggestions
Raw material supports------we supply all supports for raw material supplier information
Installation------our process/installation/electricity engineers will stay at your plant until your workers know how to produce good products
Testing------After-sale service after installation, we will test your production, and sign agreement with your workers after successfully testing
Q&A from Yurui Company |
Q: How long is the warranty of your equipment? |
A: 1year |
Q: Do you supply spare parts? |
A: Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year. |
Q: Will you provide trainning? |
A: The training is free of charge , and our engineer will be on duty to train your worker. |
Q: How will you provide installation&commissioning |
A: Will provide 2~8persons(adjustable according to the degree of automatic )for installation.Engineers team will go |
with your project. |
Company
Shandong Yurui International Co., Ltd. is specialized in designing and manufacturing mgo board production line, lightweight EPS cement wall panel production line and gypsum products production lines. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience
Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience
Service
After installation and commissioning, we will provide technical formula suitable with client’s demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.
Team
Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
