Thermal insulation lightweight concrete sandwich wall panel machine production line

Name: Thermal insulation lightweight concrete sandwich wall panel machine production line
Brand: Ouyade
Price: USD $50,000 - 50,000 / Set

FOB Price

USD $50,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Ouyade

Place of Origin:

Shandong, China

Packaging Details

The trays are fixed and can be negotiated with the buyer.

Product Description

Machinery Parameters
Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3200mm, special sizes need to be customized
Width	610mm , special sizes need to be customized
Raw materia	There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Fomed cement+additives
Finished board type	1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without furface board
Surface board types	1. Calcium silicate board 2. Fiber cement board 3. Mgo board
Electrical	There are mainly two different types

Why choose eps wall panel for construction ?

Lightweight and energy-saving composite wall panel is made of industrial waste fly ash, slag, ceramics, portland cement and EPS foam particles as the main raw materials. The production process is simple, the cost is low, and the economic benefits are considerable.

The industrialization and commercialization of residential construction in this century have been irreversible. According to the development of wall materials in developed countries, the product is in line with the development law, which overcomes the defects of other lightweight wall panel, has unique performance, and will be the leader in new wall materials.

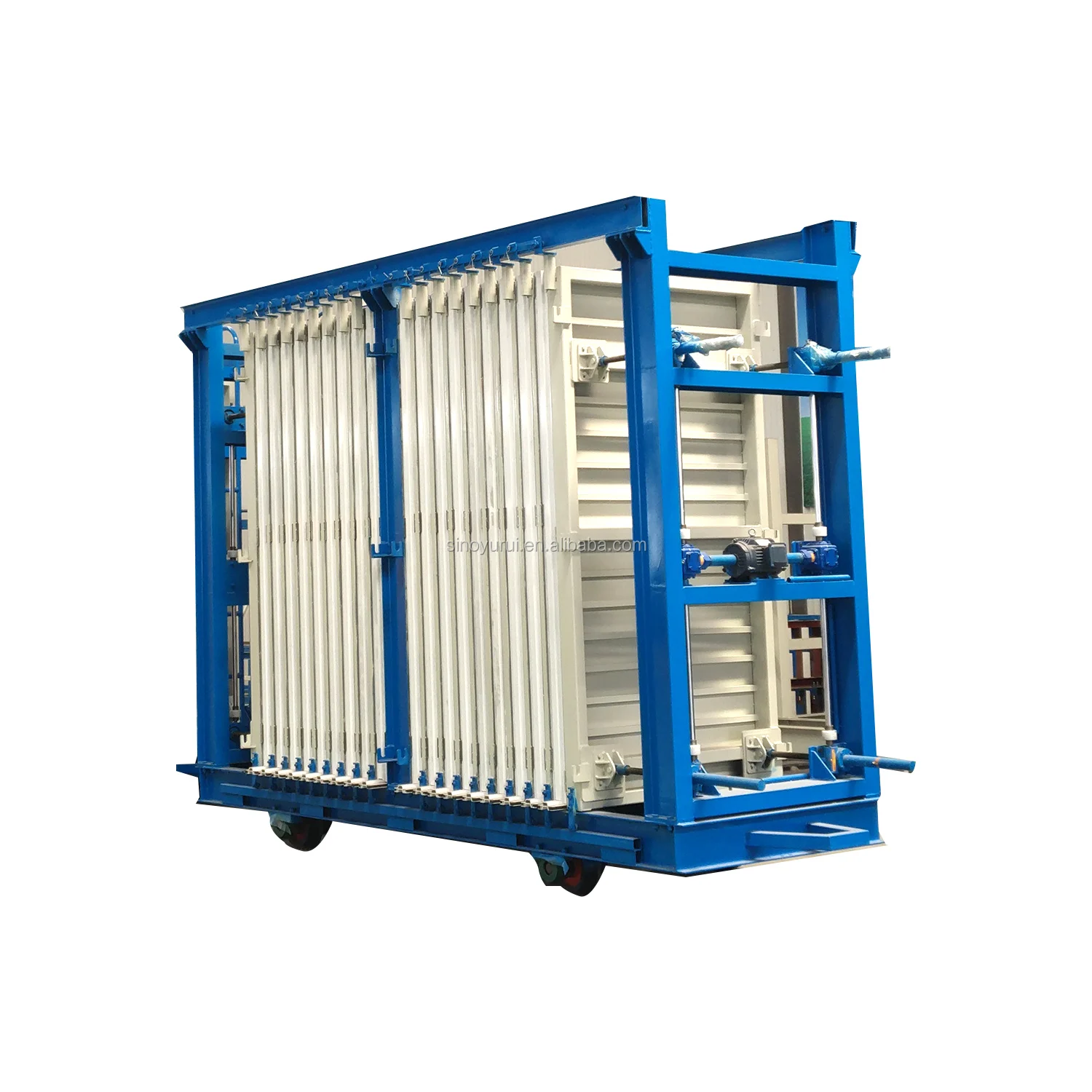

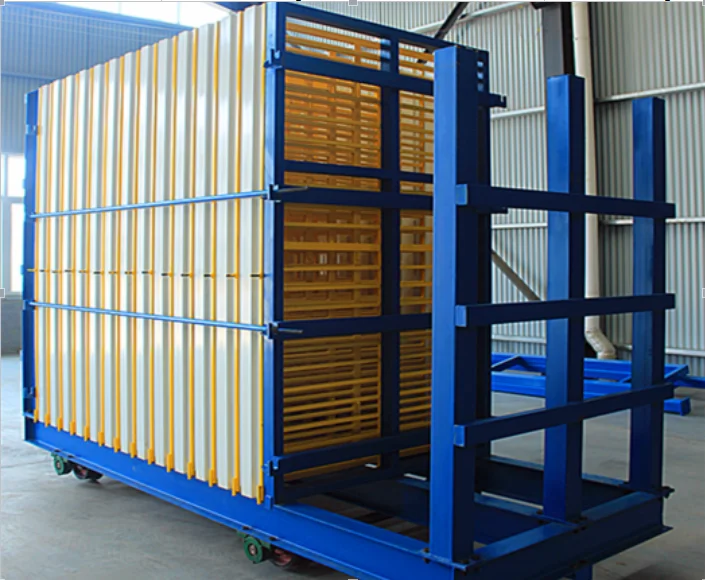

Type 1: vertical mold car

Finished product type: Composite wall panel

Finished product size: 2400 3200*610/600*40-200mm

Opening and closing mode: Manual opening and closing

Demold method : Crane/Hoist machine/New type plate unloading machine

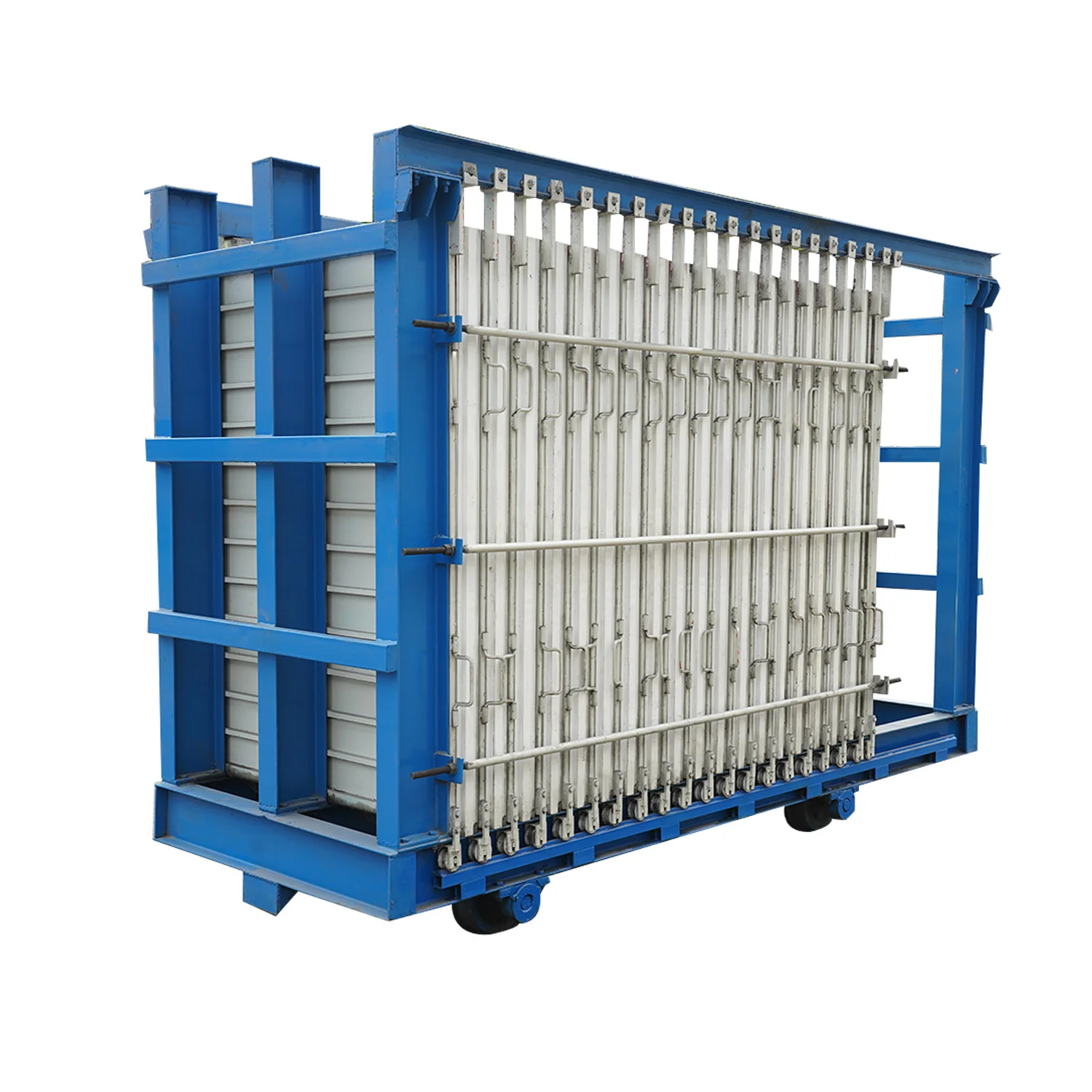

Type 2: vertical mold car

Finished product type: Composite wall panel and Solid wal panel

Finished product size:2400-3000*610/600*40-200mm

Opening and closing mode: Manual opening and closing

Demold method : Crane/Hoist machine

Type 3: vertical mold car

Finished product type: Composite wall panel and Solid wal panel

Finished product size:2400-3200*610/600*75-200mm

Opening and closing mode: Hydraulic opening and closing,

Demold method : Automatic demold machine

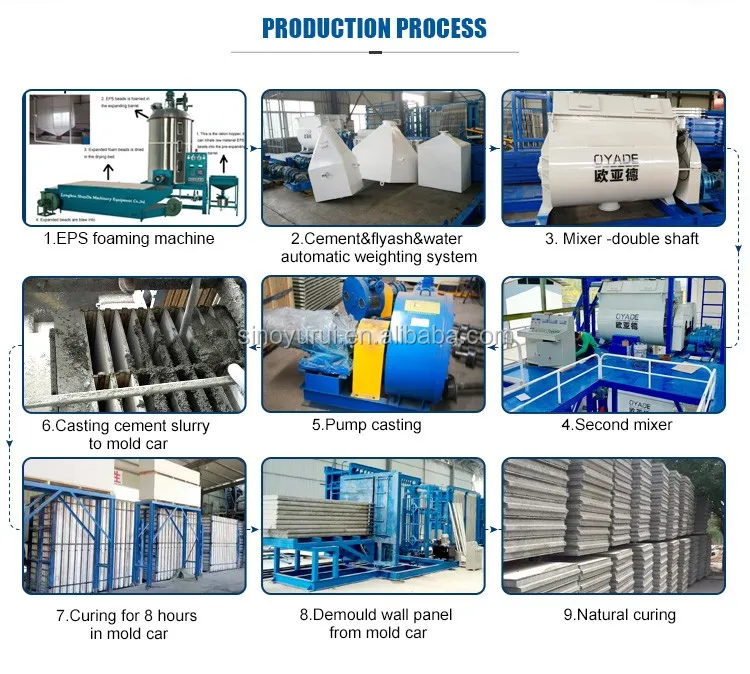

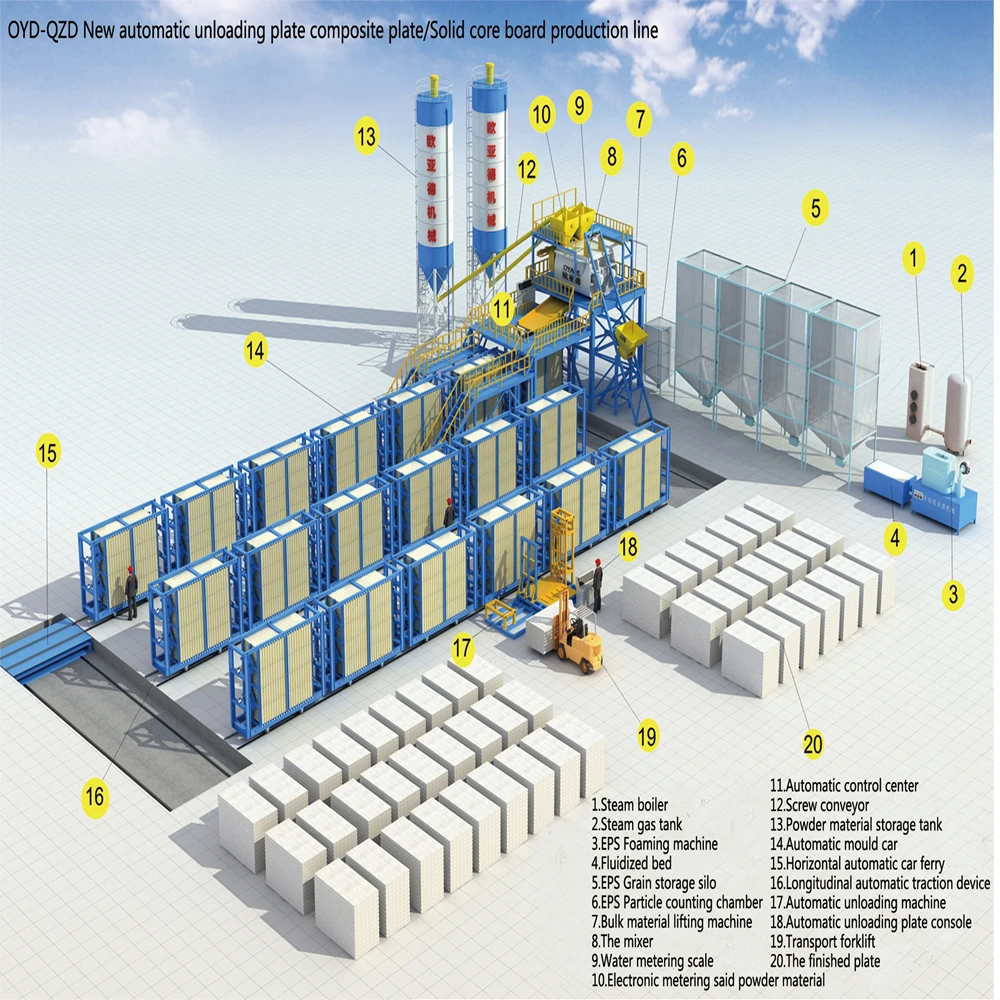

Full automatic precast eps concrete sandwich wall panel making machine/production line

(1)The weight is more lighter

(2)The thickness of wall more thinner

(3)More easy to install, take a modular assembly, saving installation time

(4)Higher strength, more anti-aging

(5)Higher energy efficiency

(6)More waterproof

(7)The fireproof performance meets the national A standard and it is non-combustible;

(8)Non-toxic, harmless, non-polluting, non-radioactive, it is a green building material

(9) Low Operating Risk

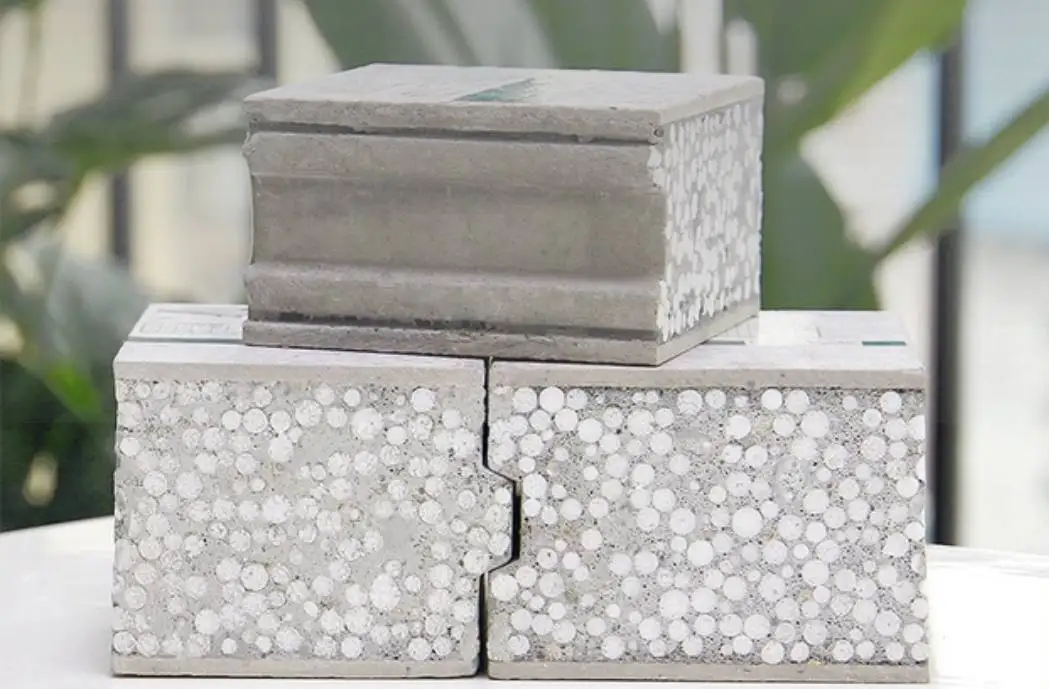

Sandwich wall panel

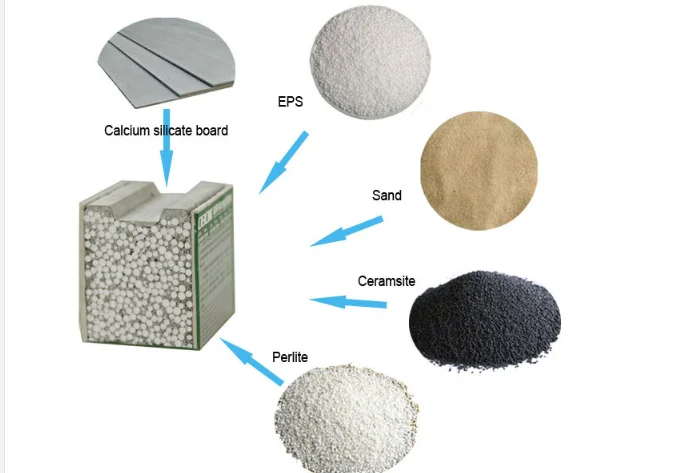

For the sandwich wall panel ,its raw materials are calcium silicate board，cement, sand, fly ash, eps particle, ceramsite and chemical additives. since there are the calcium silicate board on the surface, so if you need this kind of panel, then you need to make sure if you could easily find the calcium silicate board locally.

Raw material detailed introduction
Cement	It is the basic raw material for wall panel.
Fly ash	1:Reduce the amount of cement 2:Increase the area density of the wall panels 3:Increase the fluidity of the slurry 4:It can be replaced to cement
Eps particle	It makes wall panel lighter, higher performance in thermal insulation
Surface board	Calcium silicate board of fiber cement board,you can check which kind is available in your market
Sand	Add some sand (diameter < 3mm) improve strength of wall panel
Chemical additives	It makes cement foaming, which reduce cement usage quantity

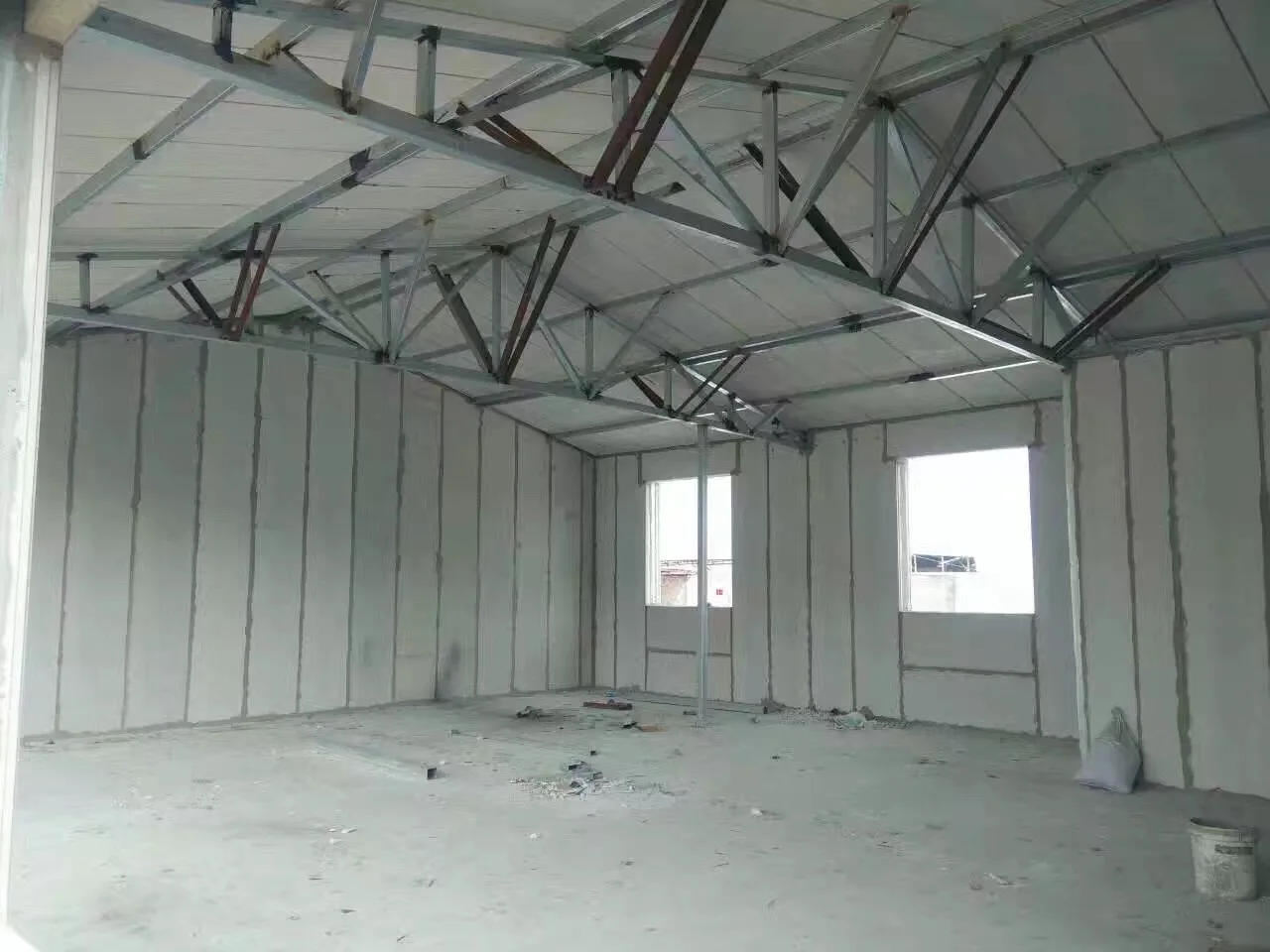

Application:

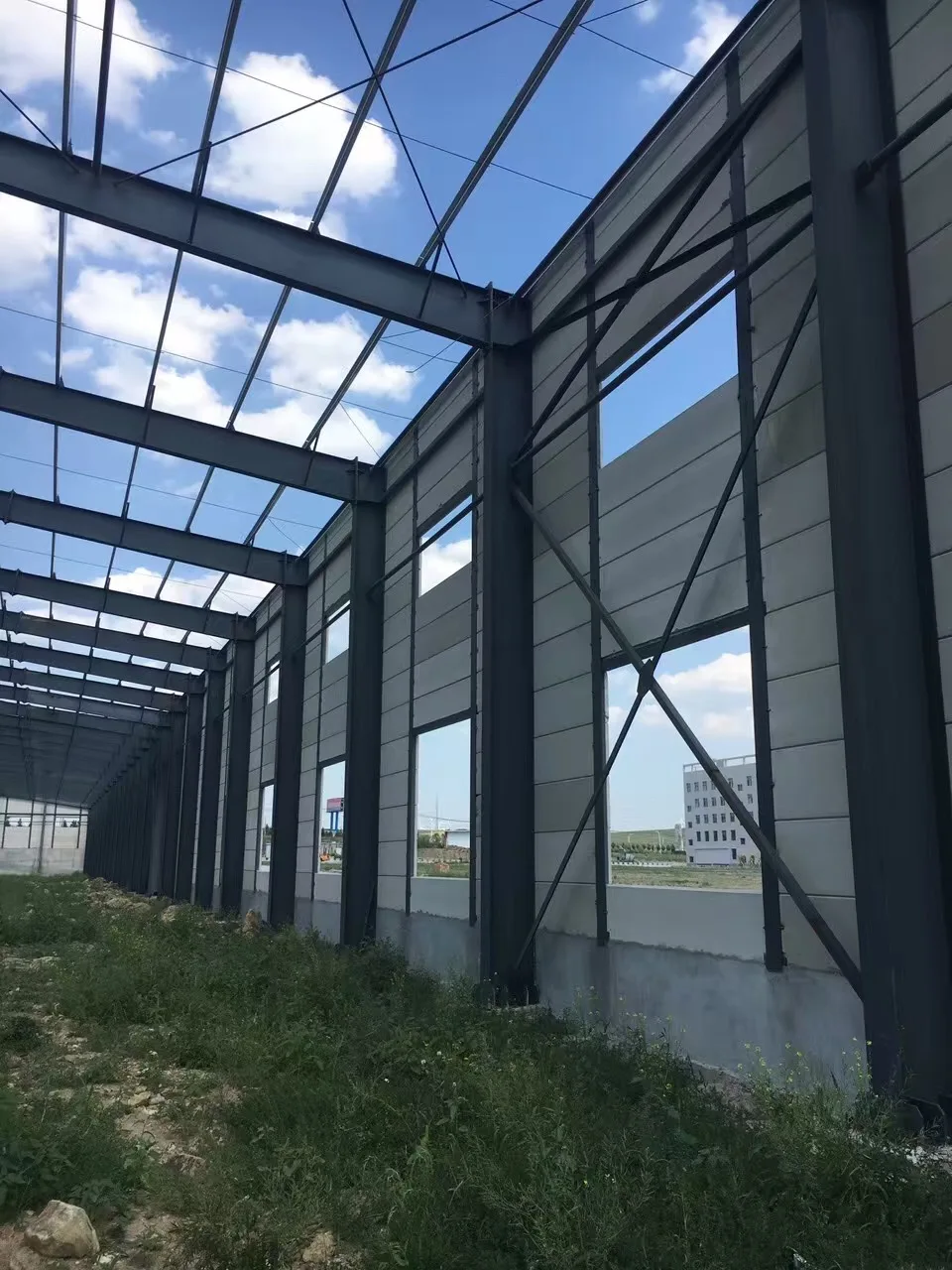

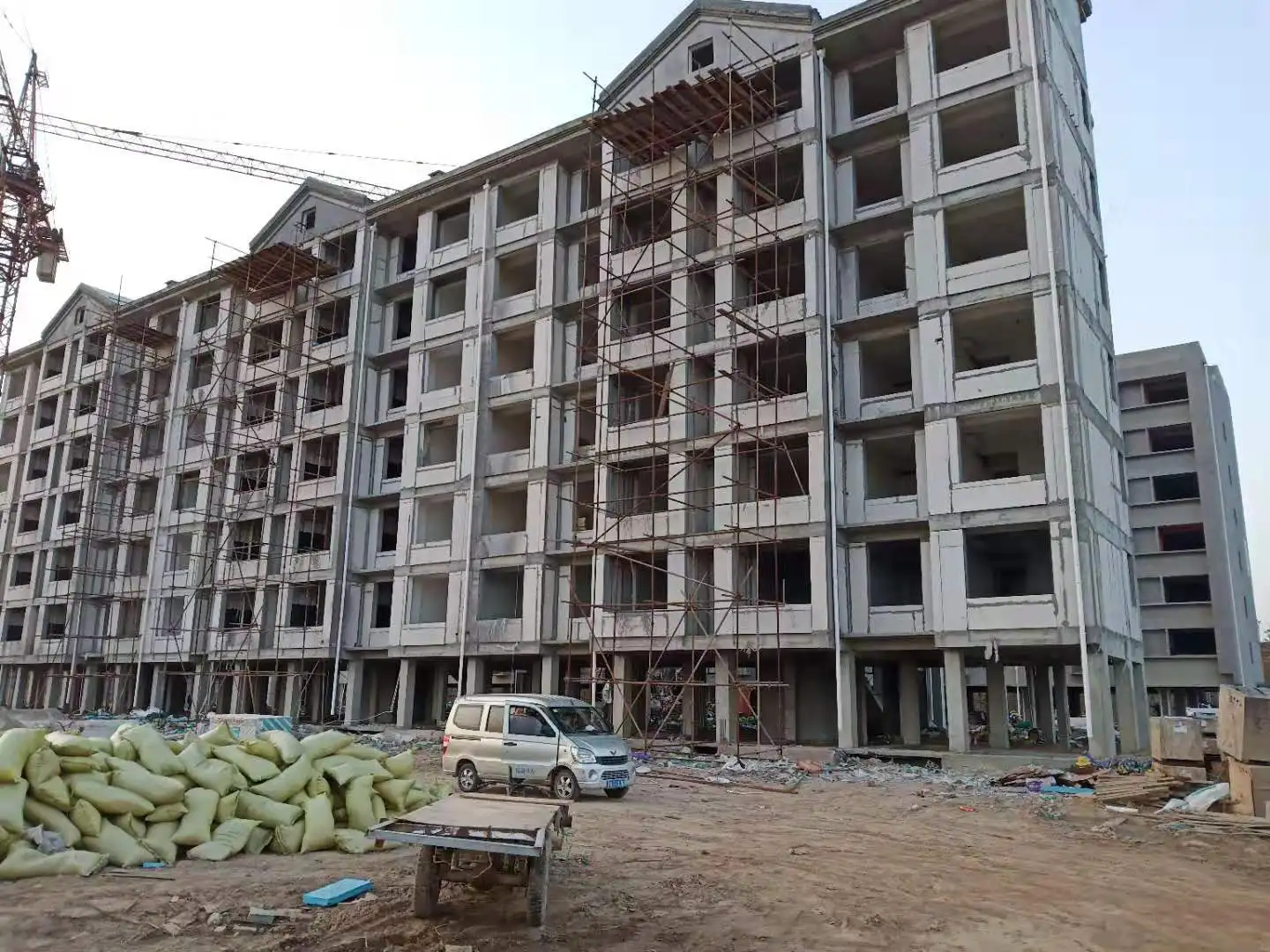

1. Exterior Wall
Solid and firm, high bonding strength, fireproof and thermal insulation, can keep indoor
temperature at an invariable temperature level, widely applied to various prefab house,
low buildings, apartment, villas, and city house, etc.

2. Interior Partition Wall
Sound insulation, waterproof, convenient for wire groove and water pipe inbuilt, easy to make
wall decoration, and what is more, it can enlarge using area. Widely used for offices, bedrooms,
apartments, hotels etc.

3. Floor
With the excellent performance of anti-static electricity, friction resistance, high strength,
convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation,
no split etc., this wall panel can be creatively used for floor.

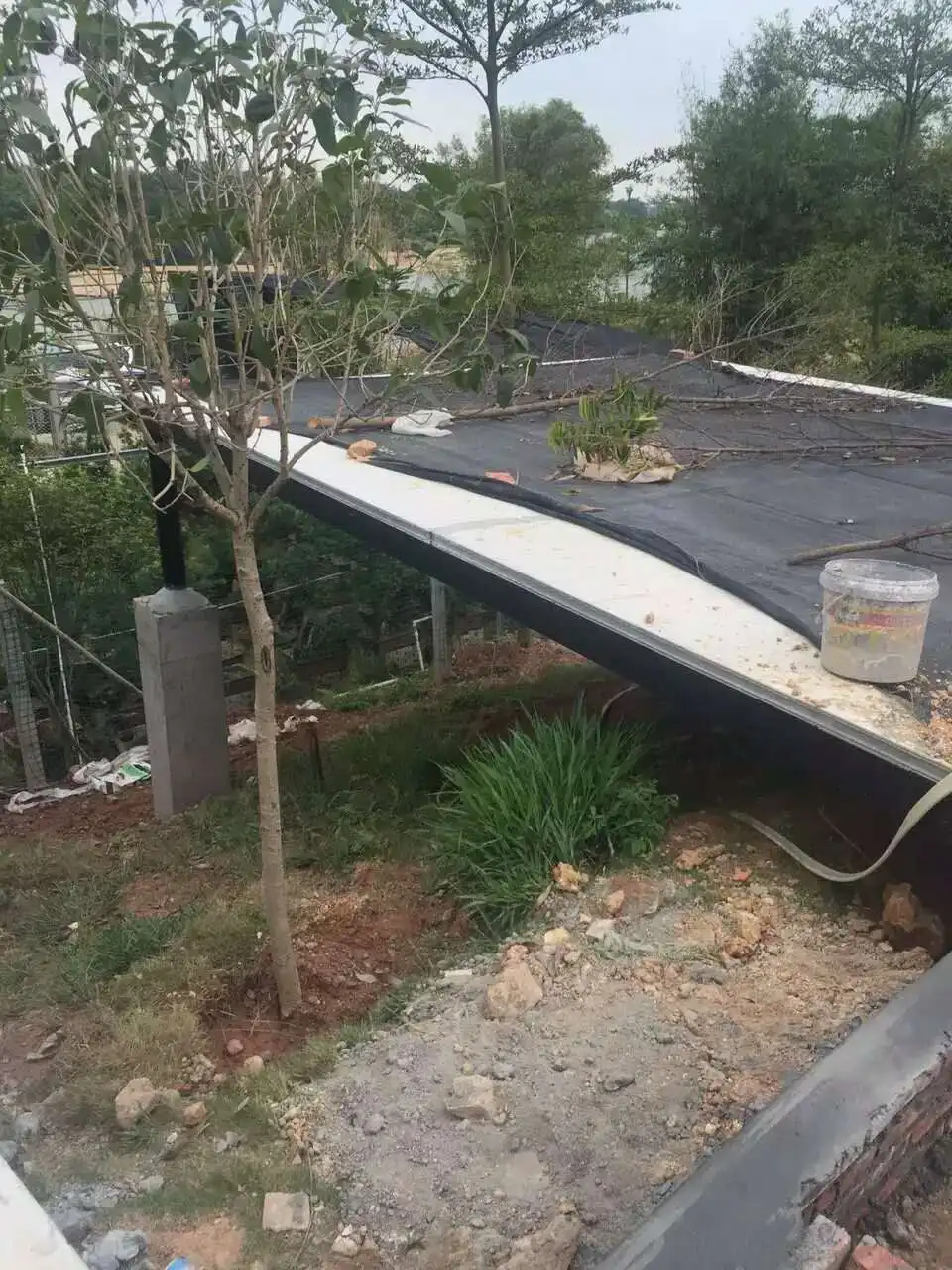

4. Roof
This sandwich panel can not only solve the problem of roof leakage,
but also has the advantages of lightweight, neat joint surface, high temperature resistance, etc.

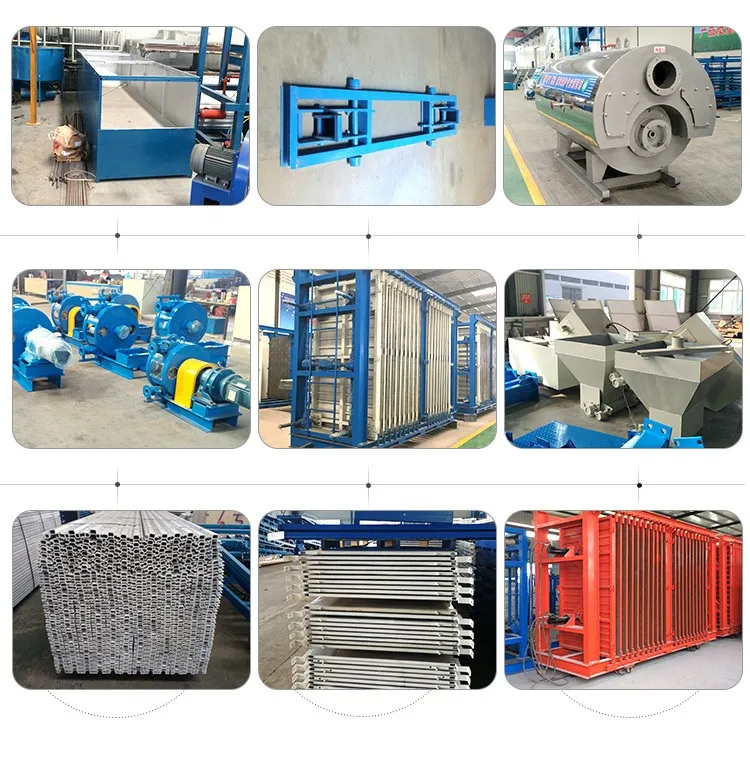

Detailed Images

Packing & Delivery

Certifications

Our Company

Contact information

Company Profile

Shandong Yunhui International Trade Co., Ltd.

Our company is manufacturer and trader of construction machinery with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
