500-2500pcs/day automatic china factory fireproof mgo decoration board equipment and machine line
Product Picture
Brief Introduction
| Capacity | 500-2500 pcs per day |
| Automation | simple line, semi degree automatic or high degree automatic |
| Main materials | mgcl2, mgo, perlite, non-woven fabrics glass colth, sawdust,water, etc |
| Product dimension | thickness: 3mm-25mm, width:1200, 1220mm, length:2400-3600mm |
Product Description

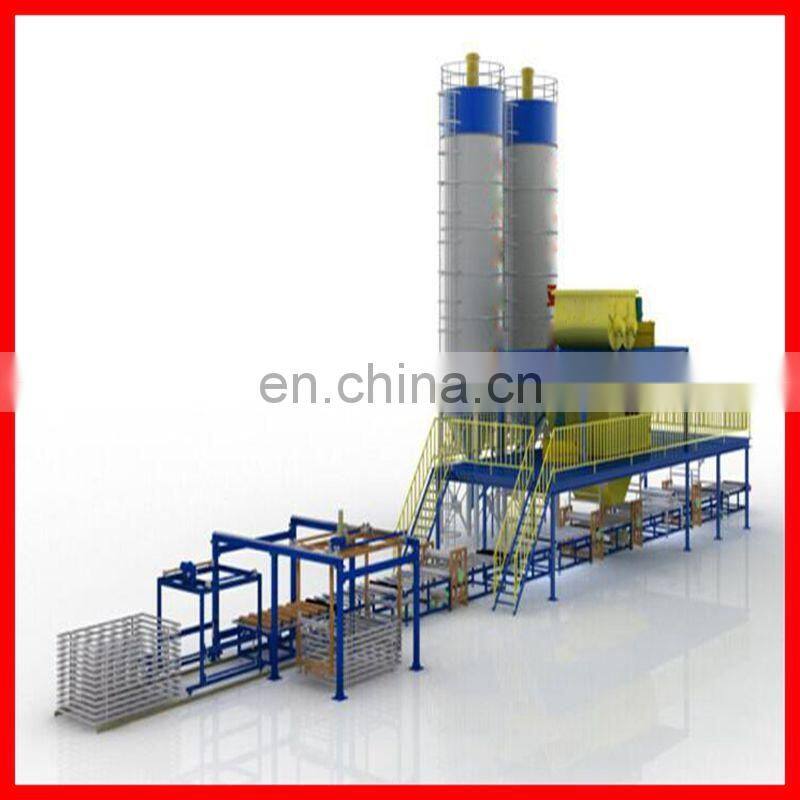

automatic china factory decorative fireproof magnesium oxide mgo wall board making production equipment machine process flow

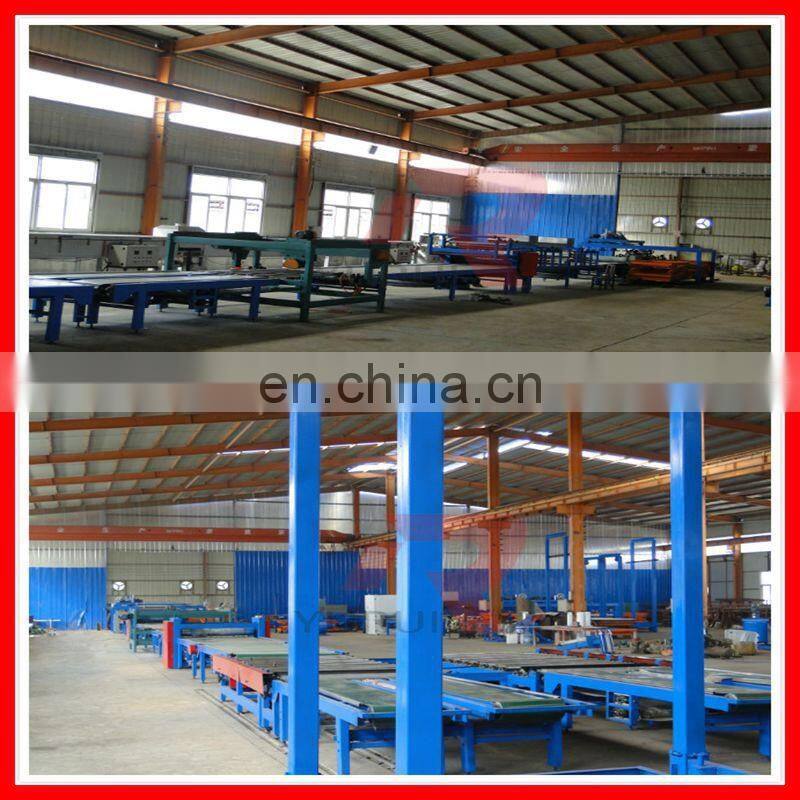

The magnesium oxide board production line is highly automatic and reduces workforce. The products are formed one time, smooth and uniformly.

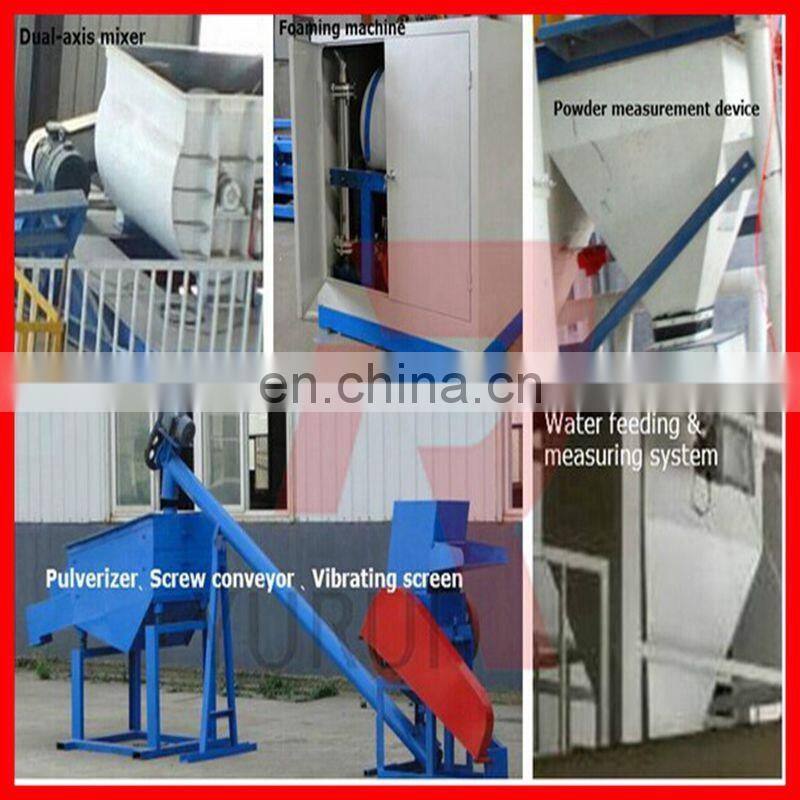

1.Raw material preparation system of mgo board production line/mgo board machine/equipment/plant

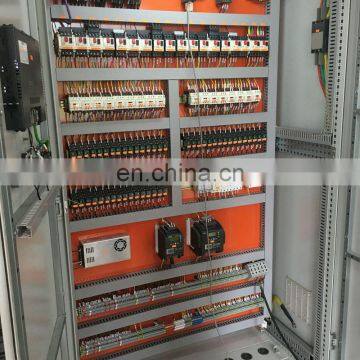

Including PLC automatic control system for raw material preparation, Screw conveyor, Powder measurement device, Water feeding and measuring system, Dual-axis mixer, Brine mixer, Foaming machine.

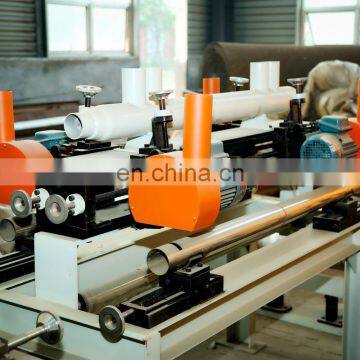

2.Forming system of mgo decoration board equipment and machine line
Including: Electrical mould feeding machine, PLC automatic controlling system for board making machine, Automatic oiling machine, Forming system, Finishing system, Automatic cutting machine.
3.Semi-finished products stacking system of automatic china factory magnesium oxide mgo wall board making production equipment machine line

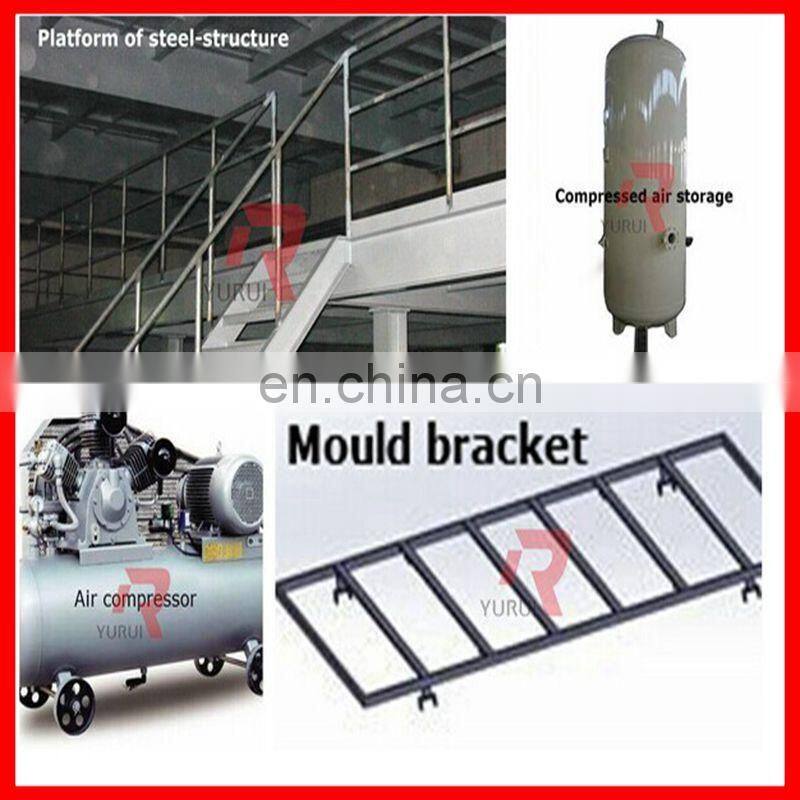

Including: PLC automatic controlling system for semi-finished products stacker, Semi-finished formed board offline transshipment, Semi-finished formed board automatic placing machine of mould bracket, Semi-finished formed board offline automatic stacker.
4.Mold releasing system of mgo decoration board equipment and machine line
Including: Automatic mold releasing machine, Automatic stacker for mould, Automatic stacker for mould bracket, Mould cleaning machine.
5.Board cutting system of mgo decoration board equipment and machine line

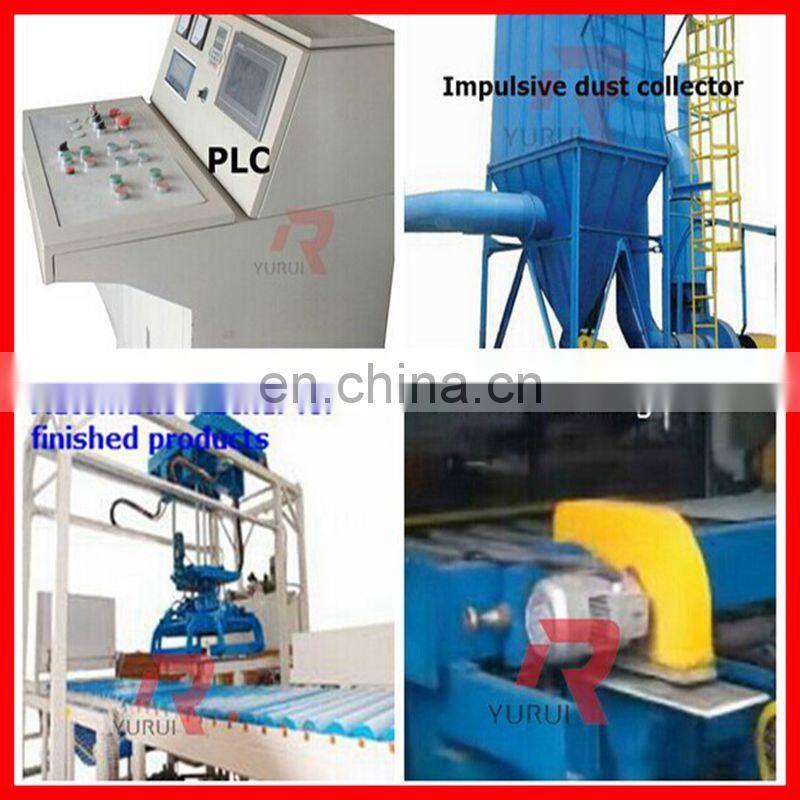

Including: Flow line cutting machine, Automatic stacker for finished products, Impulsive dust collector.
6. Transporting system of automatic magnesium oxide board equipment / mgo board machines
Including: Transverse tranport electric trailer,semi finished board cage vehicle, automatic conveying machine of tray, other ancillary facility.

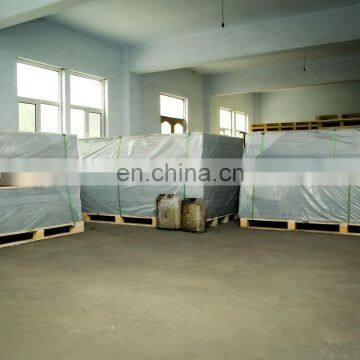

Packaging&Shipping
1. 20FT/40FT/40FR standard sea and land package;
2. The PLC controller covered by foam film;
3. Spare parts and some small parts packed in box;
4. All Components Fixed by steel wire with Container.
Company Information
Shandong Yurui International is one of the subsidiary companies of Shandong Jinhu Group, who has been in construction material industry for more than 20 years, and Yurui is specialized in the exporting business with the support of advanced technology and expertise experience from Shandong Jinhu Group. Started from 1994, Shandong Jinhu Group is a comprehensive enterprise group with the business of construction material industry, chemical industry, machinery manufacturing industry, modern logistics, and real estate and so on.
Our Service
1. Installation and training:
a. If buyers visit our factory and check the machine, we will show you sample running machine plant, talk all the details face to face, also can design the machine line according your detial request..
b. Our engineers are available for over -seas, technical supported until the workers know how to operate the mgo board production line.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling.
c.If there is any problem found of the machine, we will repair it for free in one year.
FAQ
1: Do you have sample project?
A: Of course. Welcome to our sample projects in anytime.
2. How to visit your company?
A: By plane From Beijing airport to Linyi airport (1.5 hours), from Shanghai airport to Linyi airport (1.5 hours),from Guangzhou airport to Linyi airport(2.5 hours)then we can pick you up from linyi airport.
3. Do you have after sales support?
A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We can help your machines running in order to keep your business running.
4. What can you do if the machine broken?A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send thenew parts replace the broken parts free,if after warranty period,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
A: It is OK, please tell me the destination port or address.we have rich experience in transport.
6. How long the machine could be made?
A:Normally speaking, it is about 30-80 working days, also depends on the detail machines.
Contact Us
Kindly contact me if any questions.
Sherry Sun
Tel: 0086 0539-8191393
Mobile: 0086-17853908196
