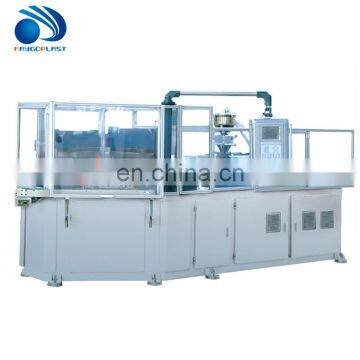

used Nissei injection blow molding machine FG-45
- 10 Set / Sets per Month
- shanghai
- T/T Credit Card
- Plastic injection blow molding machine for paint pail/ bucket FG45
- Polyurethane Visco Foam Injection blow Molding Machine FG-45
- one step injection stretch blow molding machine PET pharmaceutical bottle blowing machine
- Faygo single stage PET/HDPE/PP plastic bottle injection blow moulding machine with price
- Hot sale !! HDPE/ LDPE/ PP / PET plastic bottle injection stretch blow moulding machine with CE certificate
- Manufacturers price servo motor 100ton plastic injection blow moulding machine for sale
Product Details
Brand Name: | Faygo | Place of Origin: | Jiangsu, China | Model Number: | FG45 |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 Year |
Weight: | 3.5ton | Dimension(L*W*H): | 3*1.3*1.7 | Voltage: | 380V/50HZ |
Application: | Bottle | Condition: | New | Automatic: | Yes |
Blow Moulding Type: | Injection Blow Moulding | Plastic Processed: | PE |
Product Description
Technical parameters
Name | Unit | FG40 | FG60 | FG80 | FG100 |
Screw diameter | mm | 40 | 45 | 50/55 | 60 |
L/D Ratio | 22:1 | 22:1 | 22:1 | 22:1 | |
Injection Capacity | 9 | 176 | 260 | 314 | 415 |
Heating power | KW | 7.5 | 10 | 10.8 | 12 |
Heating section | 3+N | 3+N | 4+N | 4+N | |
Injection mould clamping force | KN | 400 | 600 | 800 | 1000 |
The injection mold opening stroke | mm | 140 | 140 | 140 | 150 |
Mould clamping force | KN | 60 | 100 | 120 | 150 |
Blow mold opening stroke | mm | 140 | 140 | 140 | 150 |
Injection stroke | mm | 160 | 160 | 160 | 160 |
Mold Size | mm | 480*340 | 600*390 | 800*400 | 1000*460 |
Min. Thickness of Mold | mm | 180 | 240 | 280 | 280 |
Main motor power | KW | 11 | 18.5 | 22 | 30 |
Reject Stroke | mm | 210 | 230 | 230 | 230 |
Dry Cycle Time | s | 3.5 | 4 | 4 | 4 |
Total power | KW | 20 | 30 | 40 | 45 |
Operating power | % | 52-70 | 52-70 | 52-70 | 52-70 |
System pressure | Map | 14 | 14 | 14 | 14 |
Compressed air pressure | MPa | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 |
Cooling water pressure | MPa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Product maximum diameter | mm | 120 | 120 | 120 | 120 |
Product maximum length | mm | 200 | 220 | 220 | 220 |
Product volume | ml | 3-800 | 3-800 | 3-1000 | 3-1000 |
Dimensions | M | 3*1.3*1.7 | 3.5*1.4*1.8 | 4*1.6*2 | 4.5*1.8*2 |
Equipment weight | Ton | 3.5 | 5 | 8 | 10 |
Mode cavity number control table
Product Size | ZQ40 | ZQ60 | ZQ80 | ZQ100 | |||
Volume | Neck Dia. | Height | Body Dia. | Cavities | Cavities | Cavities | Cavities |
5ML | 10 | 35 | 45 | 9 | 14 | 18 | 22 |
10ML | 12 | 40 | 20 | 9 | 12 | 16 | 20 |
20ML | 15 | 50 | 25 | 8 | 10 | 14 | 18 |
30ML | 20 | 60 | 30 | 7 | 9 | 13 | 16 |
40ML | 22 | 65 | 35 | 7 | 8 | 12 | 15 |
60ML | 28 | 75 | 40 | 6 | 8 | 12 | 14 |
80ML | 30 | 80 | 45 | 5 | 7 | 10 | 13 |
100ML | 32 | 85 | 50 | 4 | 6-7 | 10 | 12 |
150ML | 35 | 90 | 53 | 3 | 5-6 | 8 | 9 |
200ML | 38 | 100 | 58 | 3 | 4-5 | 7 | 8 |
400ML | 42 | 120 | 65 | 2 | 3-4 | 6 | 7 |
650ML | 50 | 160 | 80 | 1 | 2 | 5 | 6 |
800ML | 40 | 200 | 90 | 1 | 2 | 4 | 5 |
100ML | 45 | 200 | 90 | 1 | 2 | 3 |
FG Series Automatic Injection Blow Molding Machine (European)
The machine is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.
This machine has used the European standard injection blowing mode, which has absorbed the advantages of domestic injection.
Has the following characteristics:
Close mould cylinder, ensure product cleaning. The clamping force of the clamping force on the internalbalance, uniform.
Decreased the Machine height for easy assemble the mold.
Unique hydraulic servo system, reasonable layout of the pipeline, so that the machine is running high efficiency and energy saving.
The unique structure of the boost lock structure increases the clamping force and reduces the energy consumption of the system.
With servo system to control the mold rotary & increase rotary accurancy and reduce the dry cycle time.
Special double cylinder horizontal valve plate superimposed injection system, so that the injection, storage more smooth and fast, beautiful appearance, Special plastic components, to meet the requirements of different products, multi-level injection, pressure projection.
Internal layout optimization, equipment maintenance,maintenance more convenient.
Release the digital sensor detection, and increase the mandrel rotary detection function, realize the unattended, automatic operation.
Optional air conditioning mandrel function, shorten the product cooling cycle,solve the problem of sticking mandrel.
The conveyor belt can be connected with the visual inspection, Leakage Thester labeling and other equipment.
Injection Molding Machine samples:
Equipment Productive Flow Sheet
1,STOCK PREPARATION/INJECTION DEVICE
2,HOT-FLOW CHANNEL
3,ENTIRE BAR
4,BOTTLE BLANK
5,INJECTION MOLD
6,INJECTION STATION
7,BLOW STATION
8,BLOW MOLDING
9,STRIPPER STATION
