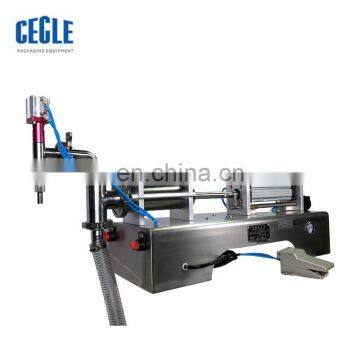

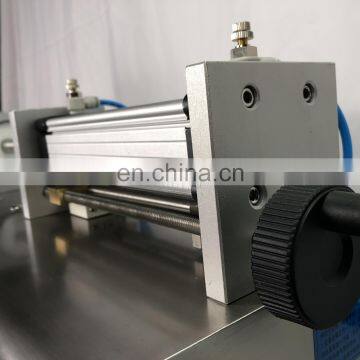

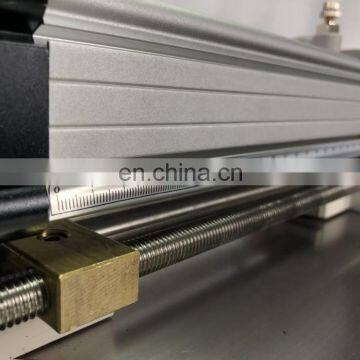

SS 201 Pneumatic Small Beer Filling Machine

FOB Price

US$ 718 - 1,288 / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	T&D	Place of Origin	Zhejiang, China
Certification	CE
Weight	30/22kg	Dimension(LWH)	1013335cm
Application	Food, Beverage, Commodity
Condition	New	Automatic Grade	Semi-Automatic
Packaging Material	Plastic, Paper, Metal, Glass
Packaging Type	Cartons, Cans, Bottles, Barrel

Product Description

Features:

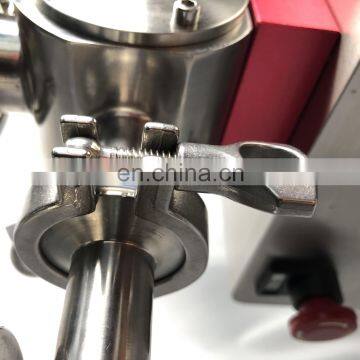

Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations; The diameter of the filling nozzle optional within 3mm-12mm;

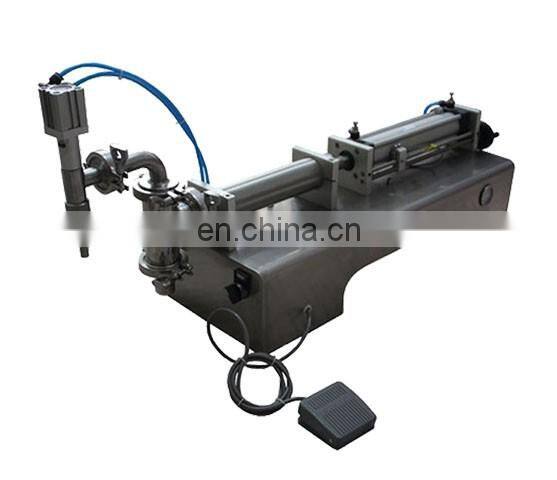

Piston type filling, can be operated by foot pedal or by automatic timer, could transfer between semi-automatc and automaitc;

Use silica gel O-ring(cam bear 200 Celsius degree), comply with the food safety; Can optional silica gel ring or rubber sealing ring, rubber sealing ring used for anti-corrosion produce;

One head with one cylinders, filling head can optional single head, two head;

Can optional the machine model: 10-100ml 20-200ml 50-500ml 100-1000ml 250-2500ml 500-5000ml;

Application:

Use for filling liquidity is good material, such as water, cooking oil, juice, milk, wine, liquid medicine, liquid detergent etc;

Adopt Airtac pneumatic components, full pneumatic drive does not need electrical power, need to contact to the air compressor; safety explosion-proof type, simple operation, high filling accuracy;

Parameters:

Model:	F2-100	F2-200	F2-500	F2-1000	F2-2500	F2-5000
Filling range:	10-100ml	20-1200ml	50-500ml	100-1000ml	25-2500ml	500-5000ml
Filling nozzle:	one nozzle
Filling speed:	10-40 times/min
Filling accuracy:	within 1%
Air pressure:	0.4-0.6mpa
Control mode:	Full Pneumatic

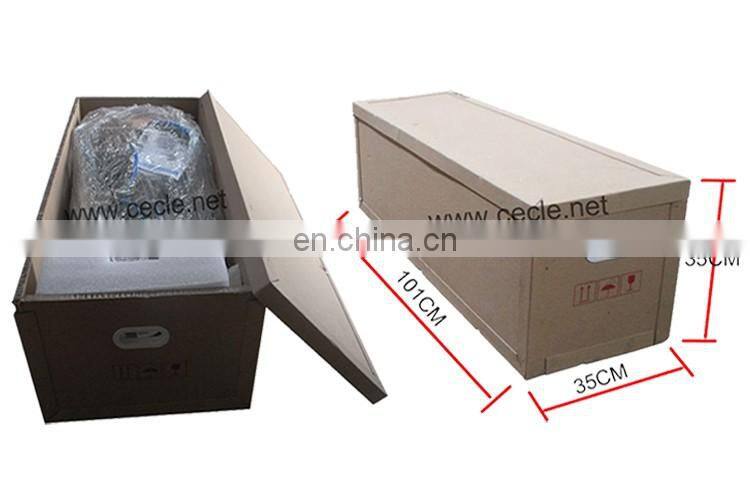

Packaging dimension:	1013335cm				1224039cm
Weight:	30/22kg				40/32kg

Model:	Automatic powder filling line
Composition	Including bottle distributing machine, powder filling machine, capping machine and labeling machine.
Suitable Products	Vial powder, auger powder, spices powder and many powder products.
Filling Container	Including bottles, vial bottle, jar and so on.
Filling Speed	20-60 times/min.
Automaitc Grade	It's full automatic filling line.

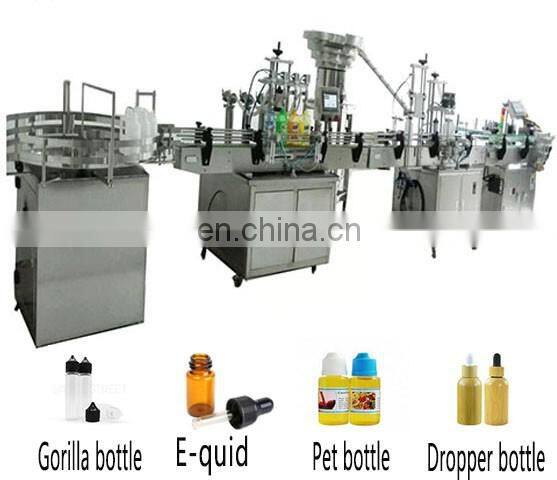

Model:	Automatic liquid filling line
Composition	Including bottle distributing machine, liquid filling machine, capping machine and labeling machine.
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	6*10-40 times/min.
Automaitc Grade	It's full automatic filling line.

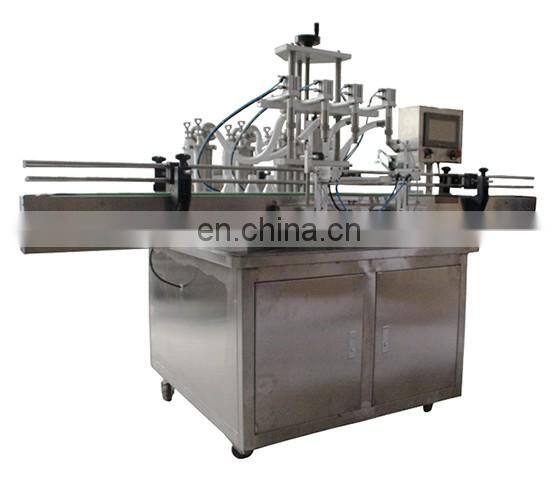

Model:	Automatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It's full automatic liquid filling machine.

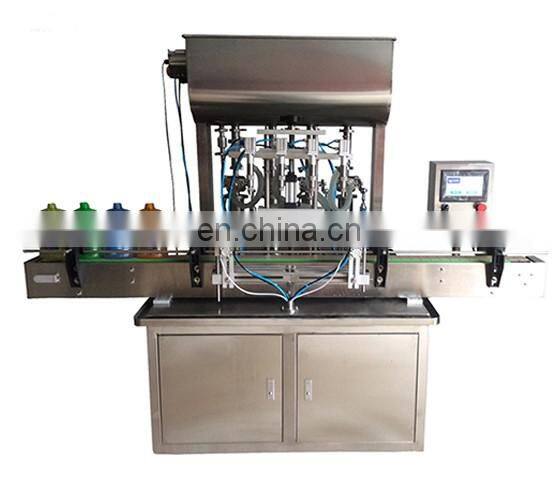

Model:	Automatic paste filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It's full automatic paste and liquid filling machine.

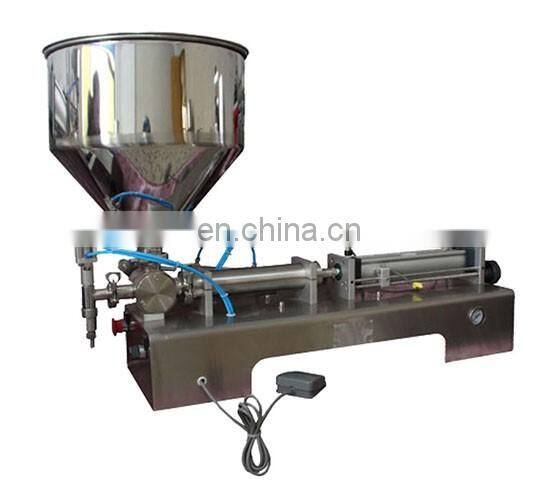

Model:	Pneumatic paste and liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It's semi automatic paste and filling machine.

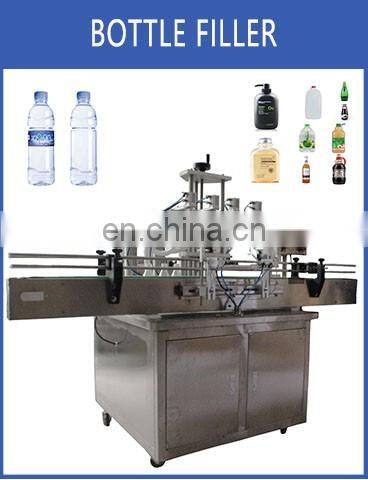

Model:	Pneumatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It's semi automatic filling machine.
