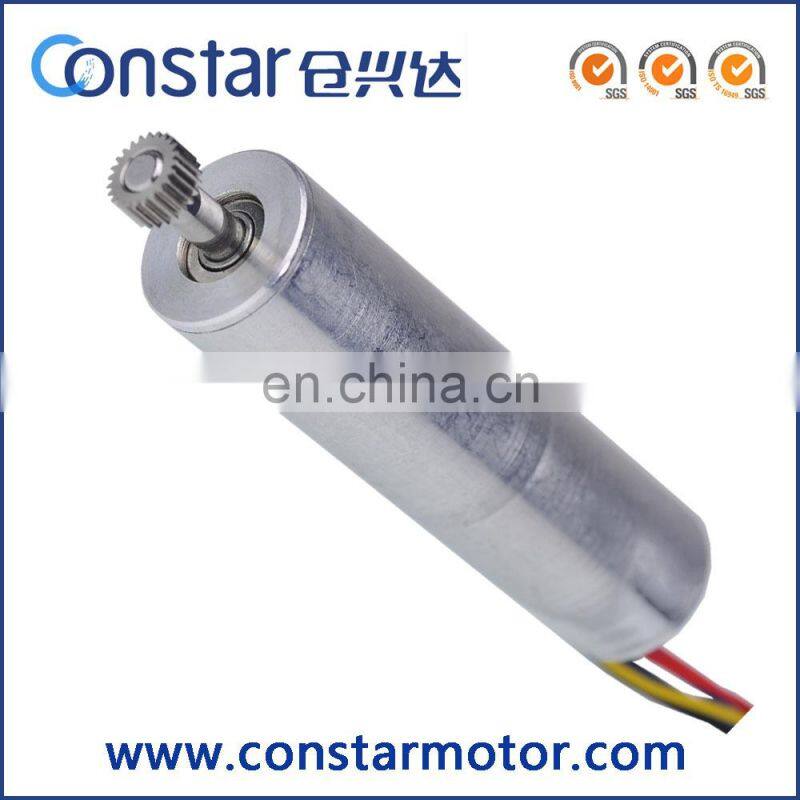

High Torque 1hp 48v brushless dc motor
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Precision driving field in medical equipment, industrial automation, etc.
| -1-48.0 | |||
| 1 | Voltage | V | 48 |
| 2 | Terminal resistance | Ω | 14.5 |
| 3 | No-load speed | rpm | 29000 |
| 4 | No-load current | A | 0.1 |
| 5 | Stall torque | mNm | 49 |
| 6 | Stall current | A | 3.3 |
| 7 | Nominal torque | mNm | 3.4 |
| 8 | Nominal speed | rpm | 27000 |
| 9 | Nominal current | A | 0.32 |
| 10 | Max. output power | W | 37 |
| 11 | Max. efficiency | % | 65 |
| 12 | Back-EMF constant | mV/rpm | 1.6 |
| 13 | Torque constant | mNm/A | 15.3 |
| 14 | KV Value | rpm/V | 600 |
| 15 | Speed/torque gradient | rpm/mNm | 600 |
| 16 | Rotor inertia | gcm2 | 4 |
| 17 | Weight | g | 29 |
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1250ZWN | Φ12*50 | 48 | 29000 | 100 | 600 | 15.3 |
| 2040ZWN | Φ20*40 | 12 | 14500 | 350 | 1200 | 7.7 |
| 2050ZWN | Φ20*50 | 12 | 5000 | 90 | 425 | 21.5 |
| 2940ZWN | Φ29*40 | 24 | 35000 | 650 | 1480 | 6.3 |
| 2950ZWN | Φ29*50 | 28 | 15500 | 450 | 550 | 16.9 |
| 3336ZWN | Φ33*36 | 12 | 31500 | 340 | 2630 | 3.6 |
| 4040ZWN | Φ40*40 | 24 | 42000 | 170 | 1 750 | 5.3 |
High Torque 1hp 48v brushless dc motor
Send Inquiry to This Supplier
