16mm diameter 8700rpm dc motor 6v
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications: Precision driving field in medical,health care and industrial automation.
2. Operating Environment: -20~+100°C;15~90%RH
3. Characteristics:
series |
Performance Code |
Dimension |
Voltage |
Terminal resistance |
No-load Speed |
No-load Current |
Load Torque |
Load Speed |
Load Current |
1630RCN |
-1 |
Φ16*30 |
3 |
3.5 |
4500 |
15 |
1.4 |
3300 |
240 |
-2 |
Φ16*30 |
6 |
3.2 |
8700 |
20 |
3 |
5950 |
220 |
|
-3 |
Φ16*30 |
12 |
15.4 |
10900 |
20 |
3 |
7170 |
270 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder , bearing type

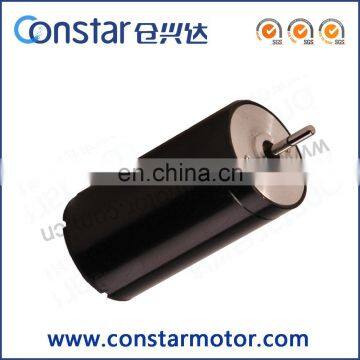

5,Photo:
6,Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
7,Other Item:
| Series | Dimension (mm) |
Voltage (V) |
Termanal resistence (Ω) |
No-load Speed (rpm) |
No-Load Current (mA) |
Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 15 | 22.2 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
