High Speed Electric DC 24V Micro Motor Carbon Brush
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -20~+85°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
Series | Performance Code | Commutation Structure | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) |
1640RCG | 1-12.0 | Graphile Brush | Φ16*40 | 12 | 8.5 | 12000 | 60 | 6.0 | 6420 | 688 |
3-24.0 | Graphile Brush | Φ16*40 | 24 | 10.7 | 13700 | 60 | 6.5 | 11230 | 450 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder

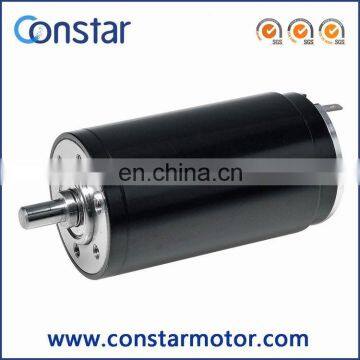

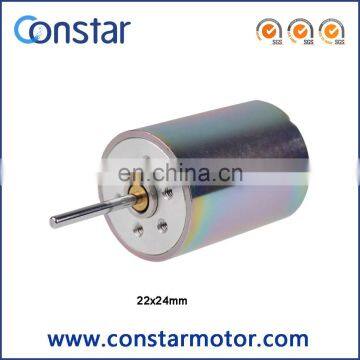

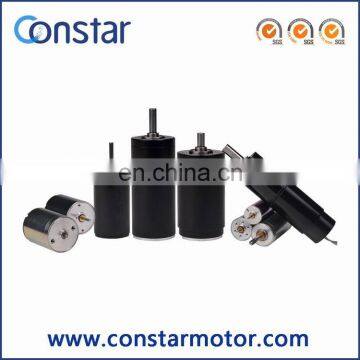

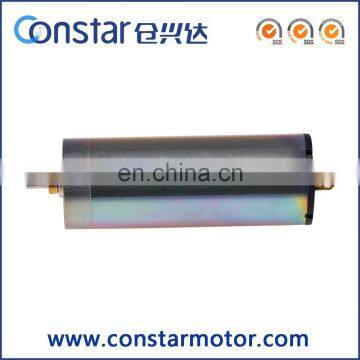

5.Photo:
6.Other Item;
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1625RCG | Φ16*25 | 12 | 13 | 15000 | 25 | 7.4 |
| 1630RCG | Φ16*30 | 24 | 52.5 | 9500 | 15 | 23.5 |
| 1640RCG | Φ16*40 | 24 | 10.7 | 13700 | 60 | 16.3 |
| 2233RCG | Φ22*33 | 24 | 19.6 | 7600 | 20 | 29.7 |
| 2430RCG | Φ24*30 | 7.4 | 0.85 | 13700 | 180 | 5.1 |
| 2543RCG | Φ25*43 | 24 | 6.3 | 6300 | 25 | 36.1 |
| 3068RCG | Φ30*68 | 24 | 0.7 | 8500 | 150 | 26.9 |
| Φ30*68 | 36 | 1.5 | 8600 | 130 | 39.8 | |
| 3257RCG | Φ32*57 | 24 | 2.2 | 5900 | 130 | 38.4 |
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
High Speed Electric DC 24V Micro Motor Carbon Brush
