Home > Electrical & Electronics > Electric Motor > DC Motor > Factory Low Price 8600rpm 24v Dc Motor
US$ 15 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
3068RCG-1SP-24.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Power 24v Corelss dc Motor for Cordless DrillUS$ 7 - 50MOQ: 1 Piece -
6V 12V Watch Winder Motor Electric Air Compressor MotorUS$ 5 - 35MOQ: 2 Pieces
-
High Quality 16mm Electric Car Motor Micro Corelss 12v Dc MotorUS$ 10 - 50MOQ: 2 Pieces
-
Constar Wholesale Micro 12v DC Motor High Torque 24 Volt DC MotorUS$ 5 - 45MOQ: 2 Pieces
-
Shenzhen Factory Brush 12v dc Motor 2000rpm High Quality 24v 5000rpm MotorUS$ 8 - 50MOQ: 1 Piece
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
3068RCG-1SP-24.0
Type
Micro Motor
Certification
CE, ROHS
Torque
60.0mNm
Efficiency
IE 1
Voltage(V)
24V
Output Power
60W
Continuous Current(A)
0.15A
Speed(RPM)
8500rpm
Commutation
Brush
Factory Low Price 8600rpm 24v Dc Motor
| |||
| CONSTAR MICROMOTOR | |||
| | | |
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -20~+100°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
| -1SP-24.0 | -2SP-36.0 | |||
| 1 | Voltage | V | 24.0 | 36.0 |
| 2 | Rotor resistance | Ω | 0.7 | 1.5 |
| 3 | No-load speed | rpm | 8500 | 8600 |
| 4 | No-load current | mA | 150 | 130 |
| 5 | Stall torque | mNm | 977.4 | 954.2 |
| 6 | Stall current | mA | 36400 | 24000 |
| 7 | Nominal torque | mNm | 60.0 | 86.0 |
| 8 | Nominal speed | rpm | 7930 | 7820 |
| 9 | Nominal current | mA | 2460 | 2270 |
| 10 | Max. output power | W | 218 | 215 |
| 11 | Max. efficiency | % | 88 | 86 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder
5.Characteristics Curve:

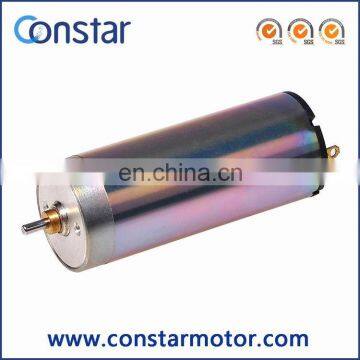

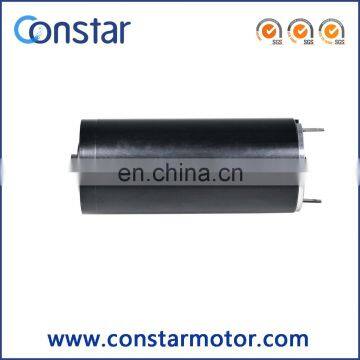

6.Photo:
Click here for more information

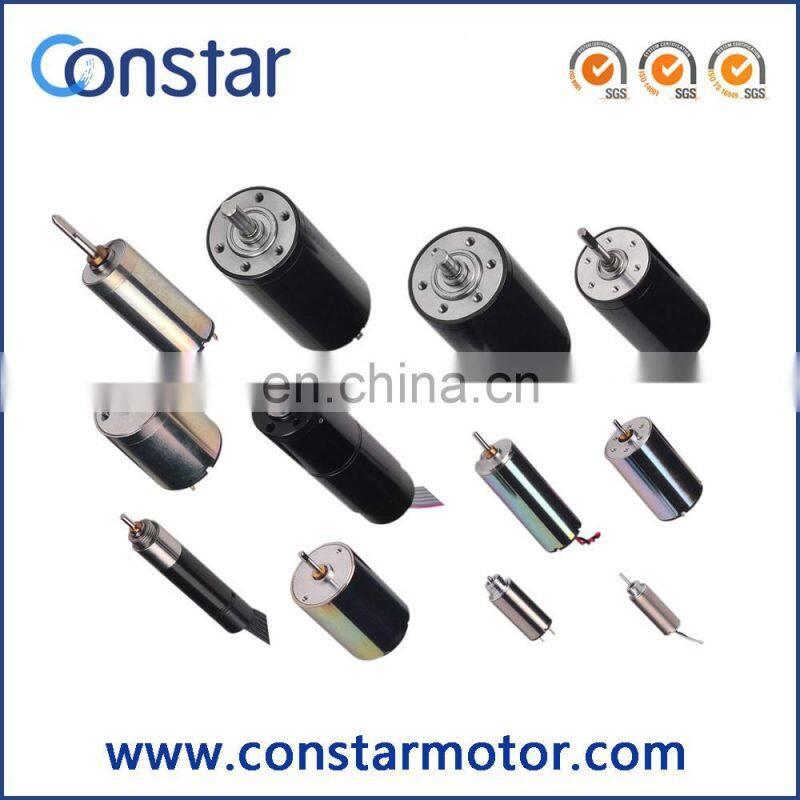

7.Other Item:
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1625RCG | Φ16*25 | 12 | 13 | 15000 | 25 | 7.4 |
| 1630RCG | Φ16*30 | 24 | 52.5 | 9500 | 15 | 23.5 |
| 1640RCG | Φ16*40 | 24 | 10.7 | 13700 | 60 | 16.3 |
| 2233RCG | Φ22*33 | 24 | 19.6 | 7600 | 20 | 29.7 |
| 2430RCG | Φ24*30 | 7.4 | 0.85 | 13700 | 180 | 5.1 |
| 2543RCG | Φ25*43 | 24 | 6.3 | 6300 | 25 | 36.1 |
| 3068RCG | Φ30*68 | 24 | 0.7 | 8500 | 150 | 26.9 |
| Φ30*68 | 36 | 1.5 | 8600 | 130 | 39.8 | |
| 3257RCG | Φ32*57 | 24 | 2.2 | 5900 | 130 | 38.4 |
