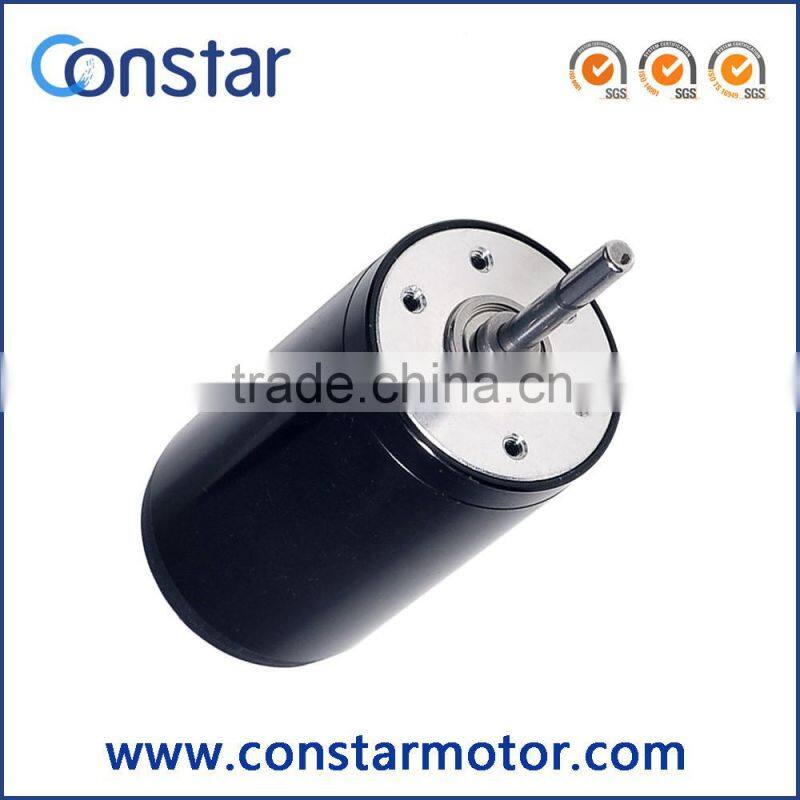

25mm Coreless Tubular Motor,24V Graphite Brush Slotless Dc Motor
|
|||
| CONSTAR MICROMOTOR | |||
|
|
|
|
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -20~+100°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
|
Series |
Performance Code |
Commutation Structure |
Dimension (mm) |
Voltage (V) |
Termanal resistence (Ω) |
No-load Speed (rpm) |
No-load Current (mA) |
Load Torque (mNm) |
Load Speed (rpm) |
Load Current (mA) |
|
2543RCG |
1SP-24.0 |
Graphile Brush |
Φ25*43 |
24 |
6.3 |
6300 |
25 |
137.7 |
4570 |
1070 |
4. Options: Lead wires length, shaft length, special coils, gearheads, encoder
5,Outline Drawing:
6,Photo:
7,Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
8,Other Item:
| Series | Dimension
(mm) |
Voltage
(V) |
Termanal resistence
(Ω) |
No-load Speed
(rpm) |
No-Load Current
(mA) |
Torque Constant
(mNm/A) |
|---|---|---|---|---|---|---|
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 15 | 22.2 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
