Home > Electrical & Electronics > Electric Motor > DC Motor > Customized 12 Volt Electric Motors Double Shaft
US$ 5 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
1627RCN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22mm Electric Motor Parts 3V Hight Rpm DC Coreless MotorUS$ 6 - 35MOQ: 5 Pieces -
25mm Coreless Tubular Motor 24V Graphite Brush Slotless Dc MotorUS$ 5 - 50MOQ: 2 Pieces
-
30mm Graphite Brush Small Coreless DC Motor for MedicalUS$ 6 - 40MOQ: 2 Pieces
-
16mm Diameter 8700rpm dc Motor 6vUS$ 5 - 40MOQ: 2 Pieces
-
High Quality DC 24v Motor 6500rpmUS$ 8 - 50MOQ: 2 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
1627RCN
Type
Micro Motor
Certification
CE, ROHS
Torque
15.6mNm
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
12V
Output Power
5.04W
Continuous Current(A)
1400mA
Speed(RPM)
10000rpm
Commutation
Brush

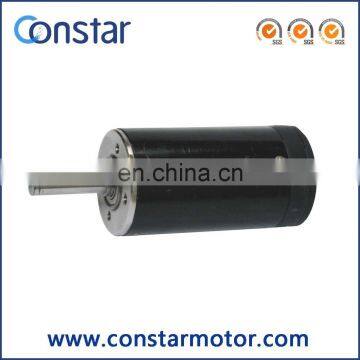

Customized 12 Volt Electric Motors Double Shaft
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Applications
Precision driving field in medical, health care, automobile, industrial automation, etc.
Specifications
| -7-4.5 | -13-6.0 | -14-12.0 | |||
| 1 | Voltage | V | 4.5 | 6.0 | 12.0 |
| 2 | Terminal resistance | Ω | 1.5 | 2.0 | 8.5 |
| 3 | No-load speed | rpm | 10100 | 10000 | 10000 |
| 4 | No-load current | mA | 45 | 35 | 35 |
| 5 | Stall torque | mNm | 12.6 | 17.0 | 15.6 |
| 6 | Stall current | mA | 3000 | 3000 | 1400 |
| 7 | Nominal torque | mNm | 4.5 | 4.5 | 4.5 |
| 8 | Nominal speed | rpm | 6410 | 7350 | 7150 |
| 9 | Nominal current | mA | 1120 | 820 | 420 |
| 10 | Max. output power | W | 3.33 | 4.45 | 4.10 |
| 11 | Max. efficiency | % | 78 | 81 | 73 |
| 12 | Back-EMF constant | mV/rpm | 0.4 | 0.6 | 1.2 |
| 13 | Torque constant | mNm/A | 4.2 | 5.7 | 11.2 |
| 14 | Speed/torque gradient | rpm/mNm | 800 | 590 | 640 |
| 15 | Rotor inertia | gcm2 | 0.6 | 0.6 | 0.7 |
| 16 | Weight | g | 25 | 25 | 25 |
Options
Lead wires length, shaft length, special coils, gearheads, encoder , bearing type

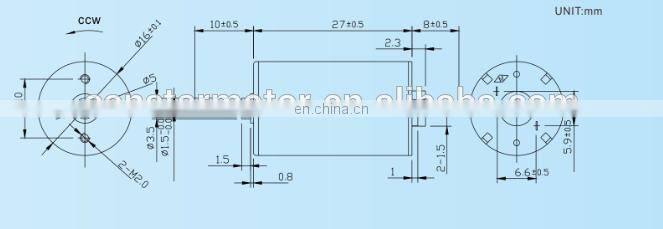

Outline Drawing

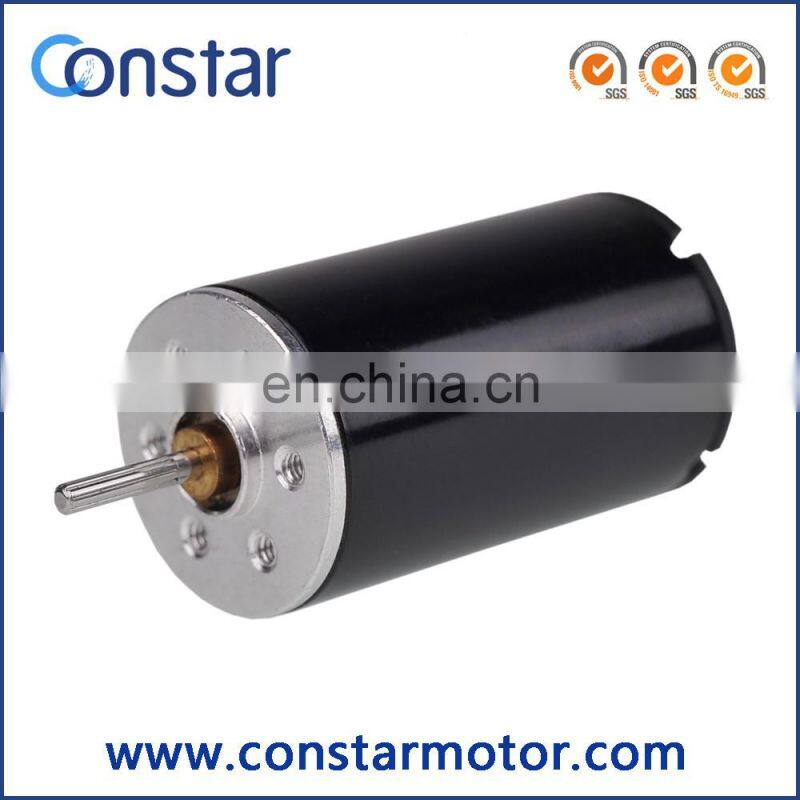

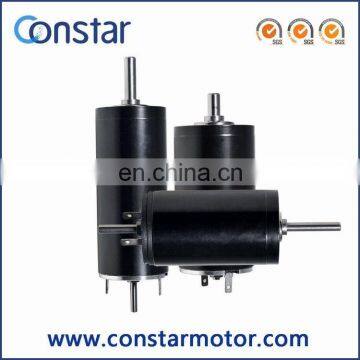

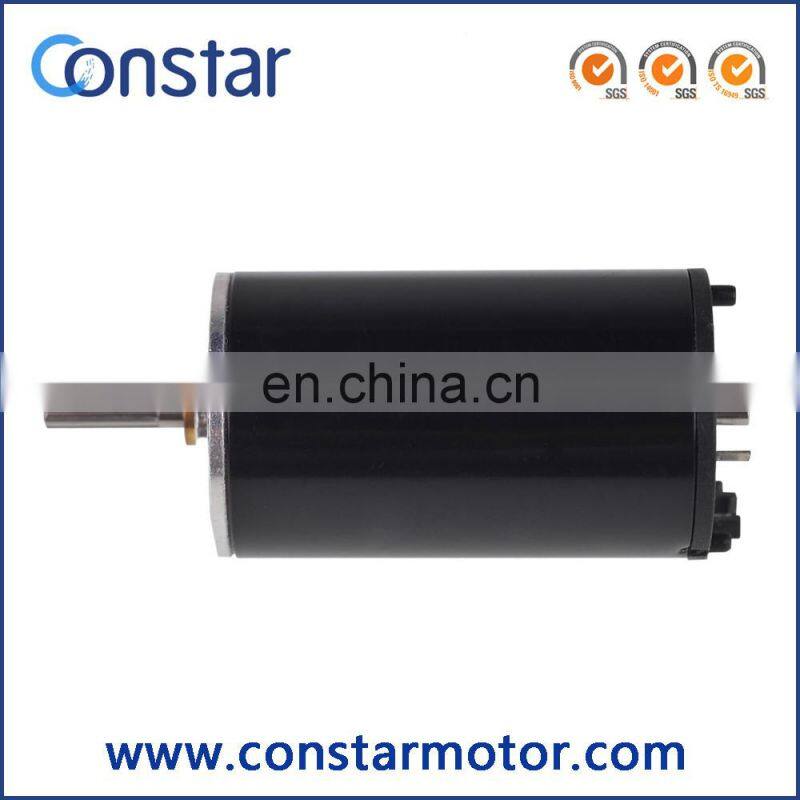

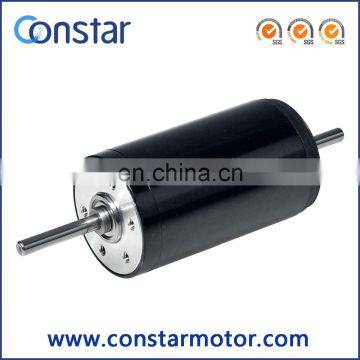

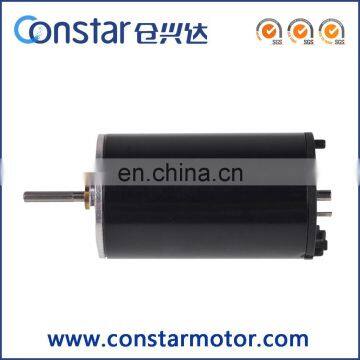

Product Show
Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension (mm) | Voltage (V) | Termanal resistence (Ω) | No-load Speed (rpm) | No-Load Current (mA) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 0615RCN | Φ6*15 | 3 | 19 | 12200 | 10 | 1.1 |
| 0816RCN | Φ8*16 | 8 | 60 | 15500 | 6 | 4.7 |
| Φ8*16 | 4.2 | 12.4 | 13700 | 15 | 2.8 | |
| 1025RCN | Φ10*25 | 12 | 28 | 11500 | 10 | 9.7 |
| 1220RCN | Φ12*20 | 3.3 | 6.9 | 7900 | 12 | 3.9 |
| Φ12*20 | 6 | 5.2 | 12000 | 30 | 4.7 | |
| 1230RCN | Φ12*30 | 24 | 59 | 10800 | 5 | 21 |
| Φ12*30 | 5.3 | 12.9 | 4450 | 10 | 11.1 | |
| 1331RCN | Φ13*31 | 9 | 17.7 | 6730 | 7 | 12.59 |
| 1416RCN | Φ14*16 | 3 | 2.6 | 11600 | 20 | 2.4 |
| 1515RCN | Φ15*15 | 3 | 6.1 | 6200 | 10 | 4.5 |
| 1620RCN | Φ16*20 | 5 | 4.7 | 10300 | 25 | 4.5 |
| 1625RCN | Φ16*25 | 3.7 | 7.6 | 6000 | 15 | 5.7 |
| Φ16*25 | 6 | 3.1 | 9800 | 20 | 5.8 | |
| Φ16*25 | 12 | 16.5 | 8100 | 10 | 14 | |
| 1627RCN | Φ16*27 | 4.5 | 1.5 | 10100 | 45 | 4.2 |
| Φ16*27 | 6 | 2 | 10000 | 35 | 5.7 | |
| Φ16*27 | 12 | 8.5 | 10000 | 35 | 11.2 | |
| 1630RCN | Φ16*30 | 6 | 3.2 | 8700 | 20 | 6.5 |
| Φ16*30 | 12 | 15.4 | 10900 | 20 | 10.2 | |
| 2018RCN | Φ20*18.2 | 6 | 1.8 | 9350 | 30 | 6.1 |
| Φ20*18.2 | 12 | 11.7 | 10000 | 15 | 11.3 | |
| 2224RCN | Φ22*24.2 | 6 | 2.2 | 7650 | 35 | 7.4 |
| 2225RCN | Φ22*25 | 7.2 | 1.9 | 16100 | 130 | 4.1 |
| 2232RCN | Φ22*32 | 6 | 2 | 8100 | 20 | 7 |
| Φ22*32 | 9 | 2.9 | 9400 | 17 | 9.1 | |
| Φ22*32 | 12 | 4.4 | 10100 | 15 | 22.2 | |
| Φ22*32 | 24 | 18 | 10200 | 15 | 22.2 | |
| 2233RCN | Φ22*33 | 3 | 0.5 | 9000 | 35 | 3.2 |
