Precision Drying ovens

Product model: bpj-9xxxa

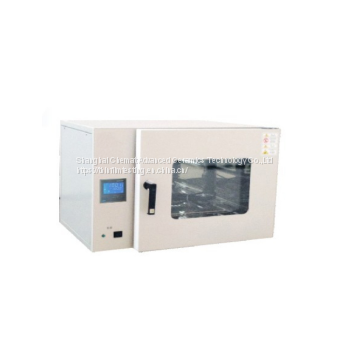

Product Name: [bpj-9xxxa] precision blast drying oven [LCD]

Product features: this precision oven (precision oven) is suitable for electronic components, rubber, plastic, decorative materials and other industries with strict temperature uniformity requirements.

Product details:

Technical parameters:

Product model bpj-9023a bpj-9053a bpj-9123a bpj-9203a bpj-9030a bpj-9070a bpj-9140a bpj-9240a

Product type LCD

Power supply voltage: AC 220 V ± 10% / 50 Hz ± 2%

Temperature control range + 10 ℃ - 200 ℃

The temperature resolution is less than 0.1 ℃

Constant temperature fluctuation ≤± 0.2 ℃

Temperature uniformity ≤± 1.5% ℃

Input power: 500W 1050W 1500W 2000W 750W 1050W 1500W 2100W

Studio size (width depth height) 300 * 300 * 270 420x350x350 550x350x550 600x550x600 340x320x320 400x350x500 450x550x550 500x600x750

Overall dimension (width depth height) 580 * 480 * 440 700x530x520 830x530x720 800x730x770 480x500x630 550x530x810 590x730x860 640x780x1060

Load bracket ﹥ 2 ﹥ 2 ﹥ 2 ﹥ 2 ﹥ 2 ﹥ 2 ﹥ 2

Timing range: 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes; 0-9999 minutes

System configuration and technical description:

Box structure:

33) the oven is composed of chamber, heating system, electrical control system, air supply system and protection system.

34) the box body is made of equipment and process, with smooth lines and beautiful appearance.

35) the studio is made of stainless steel, and the outer box is made of cold steel plate. The outer shell of the product is sprayed with environmental friendly metallic paint. The overall design is beautiful and elegant, which is suitable for the color matching of high-end laboratories.

36) the shelf height and the number of shelves can be adjusted according to the user's requirements.

37) the thermal insulation material between the working room and the outer box is ultra-fine glass fiber thermal insulation cotton, the thickness of the thermal insulation layer is > 70mm, the insulation effect is good, and the insulation structure is good. From the inside to the outside, there are inner cavity, inner shell, ultra-fine glass fiber, aluminum reflective foil, air interlayer, inner outer box and door bladder. The unique structure reduces the heat transfer from the inner cavity to the outside.

38) the door and door frames are sealed with a unique rubber seal structure, sealed, high temperature resistant and anti-aging.

39) the air duct in the box is composed of circulation system, stainless steel multi wing centrifugal fan and circulation air duct. The electric heater on the back of the box is discharged forward through the side air duct. After drying, it is sucked in by the centrifugal fan on the back to form a reasonable air duct, which can make the hot air convection fully, make the temperature in the box uniform, improve the heating capacity of air flow, and greatly improve the efficiency Good temperature uniformity of drying oven.

40) the heater is made of stainless steel electric heating tube, which has fast temperature rising and long service life.

Temperature measurement and control system

The digital display temperature controller of "aiset" brand imported from South Korea is adopted. The product adopts comprehensive electromagnetic compatibility design and humanized menu design, which makes the operation of the equipment completely stupid and has good temperature control effect. Double screen high brightness and wide window digital display, clear and intuitive value. Microcomputer intelligent control, after setting the temperature, the instrument automatically controls the heating power and displays the heating state, the temperature control accuracy is stable. Super high alarm and automatically cut off the heating power. With timing function, the timing time is up to 9999 minutes.

Electrical control system:

13) Electrical control components are brand "Chint".

14) The electric circuit design is novel, reasonable wiring, safe and reliable.

15) The top of the box is an electrical control cabinet, which is convenient for centralized inspection and maintenance.

Safety protection system:

17) Over temperature alarm

18) Over current protection

19) Fast fuse

20) Grounding protection

Optional parts (additional charge, please pay attention when ordering)

25) programmable liquid crystal controller can realize adjustable heating rate and holding time.

26) the independent temperature limiting controller can cut off the heating immediately when the equipment temperature rises too high after the main controller fails.

27) paperless recorder, which can import the recorded data into the computer for analysis and printing through USB interface, is an updated product of paperless recorder, with eight channel temperature recording.

28) equipped with RS-485 interface, it can connect computer and recorder to realize real-time monitoring of working status.

29) temperature test hole, which can insert different test lines or instruments into the equipment studio for various tests. The test hole diameters are Φ 25, Φ 50 and Φ 80.

30) carrier bracket. The oven equipment is equipped with 2 carrier brackets as standard. Customers can increase the number of carriers according to specific requirements.
