Glove Box

Super (1220/750/900)

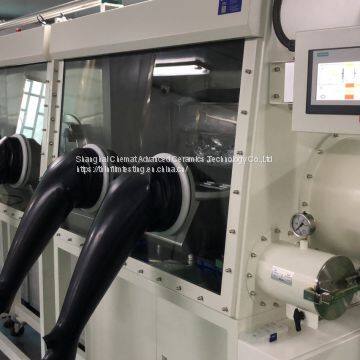

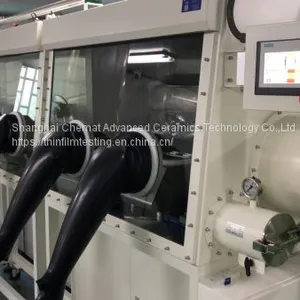

Glove box system made of stainless steel integrated Gas Purifier system and PLC controller with easy to use touch screen programming

Super (1220/750/900)

L x D x H=1220 x 750 x900mm

Single workstation system, with integrate Gas purification system(1 absorber), with PLC and HMI, incl. In and outward transfer automation, vacuum pump, integrated in pedestal single closed case, inclined operation sides and replaceable sight glass. In standard case that is 20⁰C constant temperature, 1 standard atmosphere pressure, relative humidity(RH)  is 65%, 99.999% inert gas supply, H₂O, O₂<1ppm.

Basic equipment

* 1 house made of 304 stainless steel, acid resistant, 3mm thickness

* 1 vacuum chamber made of stainless steel ø 360mm,length =600mm, right side

* 1 Mini antechamber Dia. 150mm, length=300mm, right side

* 1 sight tempered glass window with 2  glove ports

* 1 pair of gloves made of Butyl

* 1 lighting system

* 1 electrical feedthrough 220v

* 1 High performance ventilator 90m³/h，with frequency converter

* 1 Vacuum pump 8m³/h

* 4 blind flanges DN 40

* Rollers for stand

* Foot switch

Accessories

* 1 set of moisture analyser，Grade G，range:0-500ppm

* 1 set of oxygen analyzer ，z_ro₂ sensor,  Grade G ，range:0-1000ppm

   * 1 set of  solvent absorber
