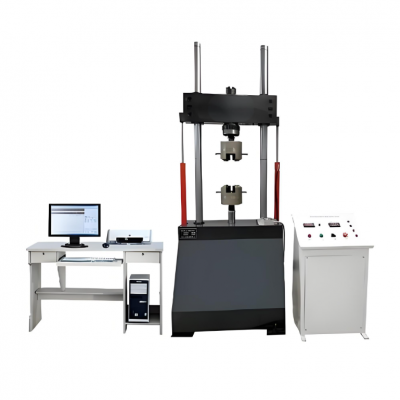

Servo hydraulic fatigue testing machine
- 3 Set / Sets per Month
- Qingdao, tianjin, shanghai
- T/T
- 45 days
You May Like
-
high frequency universal dynamic fatigue testing machine
-
2kn 5kn 10kn 20kn Electromagnetic Resonance High Frequency Fatigue Testing Machine
-
Electromagnetic Resonance High Frequency Fatigue Testing Machine
-
dynamic and static universal testing machine
-
Servo hydraulic fatigue testing machine
-
Fatigue tensile compression testing machine
Product Details
Type | Other, fatigue testing machine | Weight | 500-1000Kg | |
Power Source | AC380V | Accuracy Grade | 0.5 | |
Maxcapacity | <1000KN | Load Way | Mechanical Load | |
Oil Cylinder Position | Under | Control | Computer Control | |
Loading Method | Dynamic Load | Display | Digital | |
Origin | China |
Product Description
1. Application
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
2. Standards
2.1 GB / T2611-2007
2.2 GB / T16826-2008
2.3 GB 3075
2.4 JB / T9379-2002
2.5 GB / T228-2010
3. Working conditions:
3.1 Altitude: ≤1000 m
3.2 Ambient temperature: 20 ℃ ± 5 ℃
3.3 Relative humidity: ≤80%
3.4 Power supply: three-phase five-wire system, 380v ± 10% 50Hz, well grounded
3.5 The computer controlled servo fatigue testing machine should be installed on a solid basis.
3.6 servo hydraulic testing system should be equipped with no less than 200 liters laboratory
3.7 46 # hydraulic oil and cooling water circulation without precipitation.
