Description:

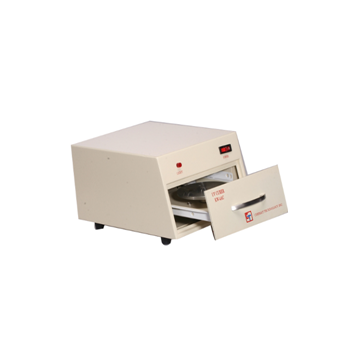

KW-4 AC is specially designed for curing photosensitive coatings and thin films.It equips four UV light sources with radiations at 365 nm and 254 nm ,The coated substrates up to 6 in diameter will be rotated at 5-6 rpm to ensure uniform curing.The built-in interlock door to prevent the exposure of UV radiation gives safe operation.
In conjunction with the KW-4A spin coater , the system can be used to make various coatings and thin films via the photo chemical process.
Key Features:
Built in interlock door to prevent the exposure of UV radiation
Simple design and user friendly
Strong UV light penetration
Easy to replace UV lamp.
Technical Specifications:
UV Lamps: 4 X 4 bulbs
Wavelength: 254 n m/ 365 n m
Turntable Diameter:4 inch
Turntable Rotary Speed:5-6 rpm
Dimension:5.8 inch X 9.5 inch X 6.3 inch
Power Requirement: 110/220 VAC,50/60 Hz,6A
