chihai motor 25-370K low noise DC6V 12V 24V wall climbing car motor WPL B-14 for Remote control car ,DIY smart robot
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
ChiHai Motor CHP-10GP-M10VA miniature plastic gear planetary geared motor dc 3V 57rpm for Mini Smart Lock And Transmission
-
ChiHai Motor CHH-2225 22mm Brush coreless 12V Hollow Reducer motor 2225 coreless Reducer gear motor for electric curtain
-
wholesales 1024-N20 DC 12V 6V 3V Mini Brush DC Fingerprint lock Motor High Torque right angle gear motor for toys and smart l
-
chihai motor CHR-K3448 Permanent magnet dc 24v 3700rpm mini carbon brush motor for vending machine
-
chihai CHR-S775 DC24V 8300RPM Permanent magnet Large Torque dc carbon brush motor
-
Chihai motor R370 25mm Mini charging vacuum suction negative pressure silent pump with solenoid valve
Product Details
Brand Name | chihai motor | Place of Origin | China | |
Model Number | 25-370K | Type | Gear Motor | |
Certification | CE | Torque | 6kg.cm | |
Usage | Home Appliance | Construction | Permanent Magnet | |
Efficiency | IE 2 | Continuous Current(A) | 0.6A | |
Speed(RPM) | 2000rpm | Commutation | Brush |
Product Description

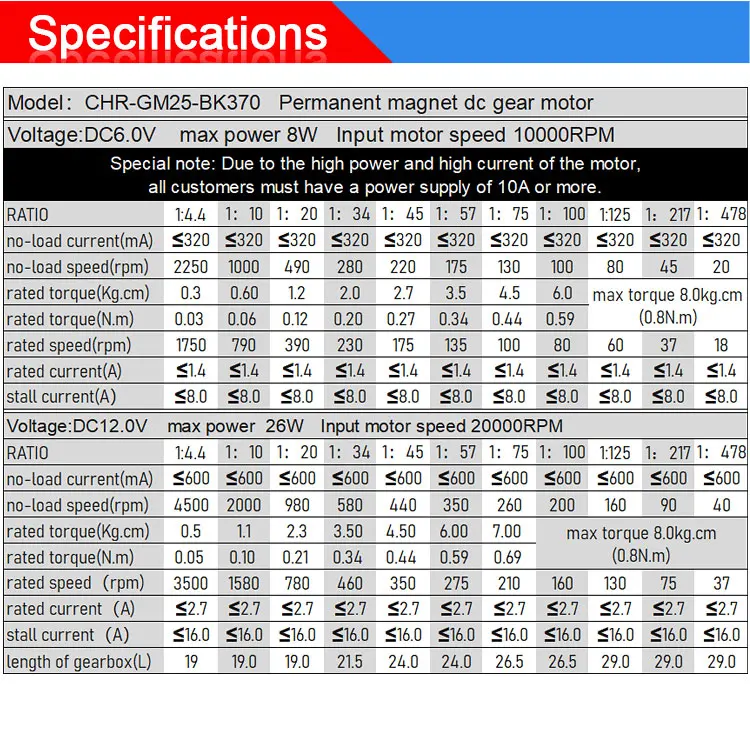

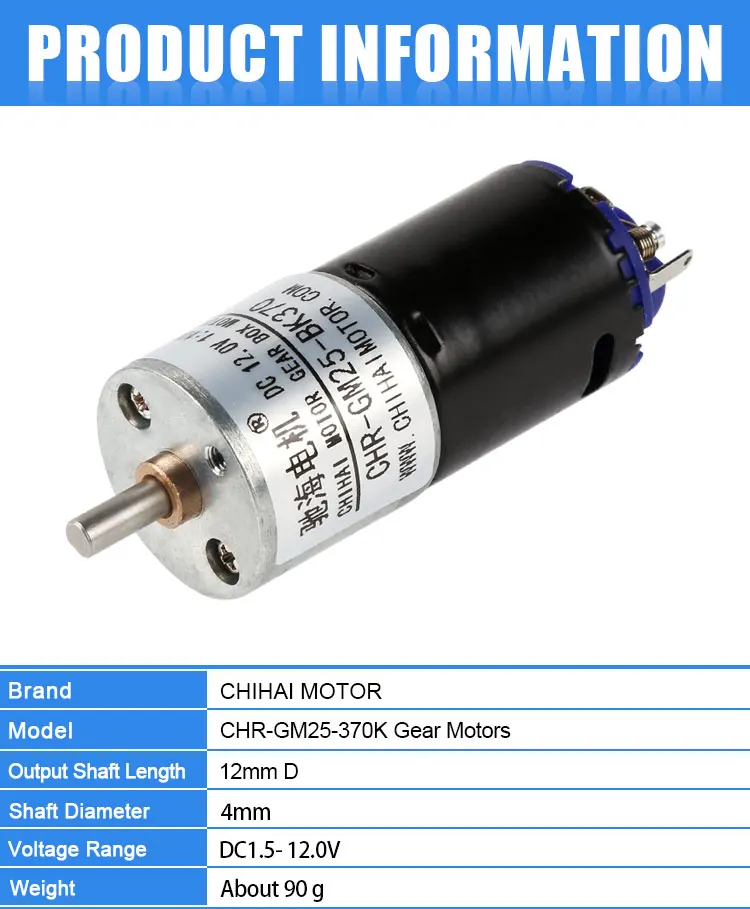

Product Type: | CHR-GM25-370K dc gear motor | ||||||

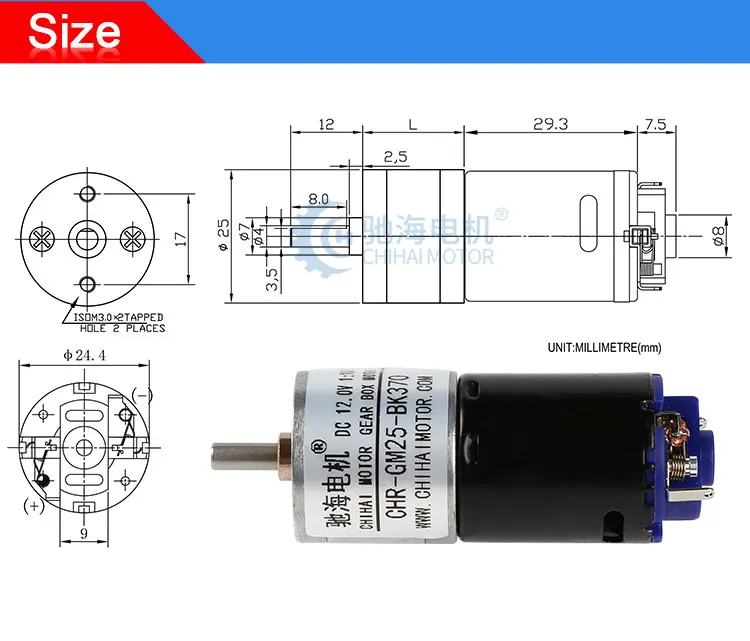

Output shaft length: | 12mm D | ||||||
Shaft diameter: | 4mm | ||||||
Voltage range: | DC1.5- 12.0V | ||||||
Weight: | About 90 g |
increases the motor torque.
2. D type shaft: more convenient to install,not easy to skid,save installation time.

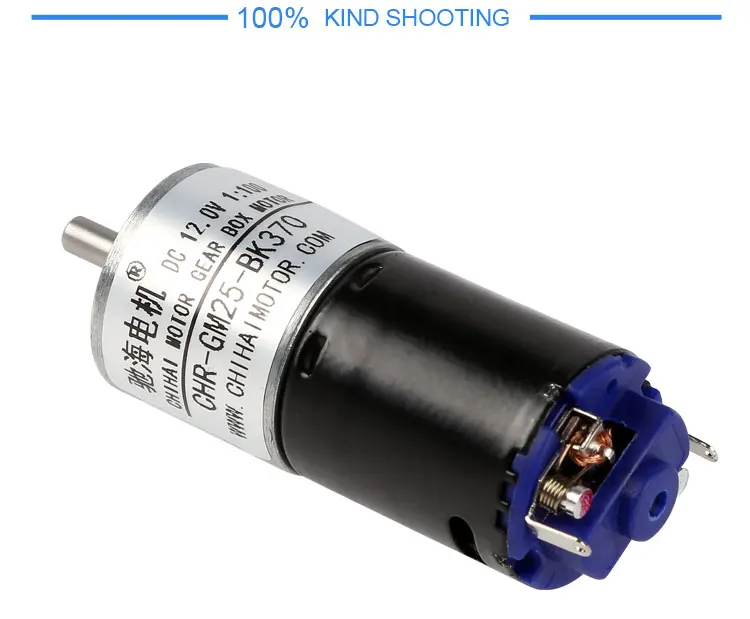

3. Extended carbon brush:tool extended carbon brush,replaceable
Application:
Suitable for WPL B-14 B-14K B-24 B-24K B-16 B-16K B-36 B-36K C-14 C-14K C-24 C-24K Series
For jjrc Q60, Q61
Suitable for MN90 MN90K MN91 MN91K series
For the FY001 FY002 series
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
