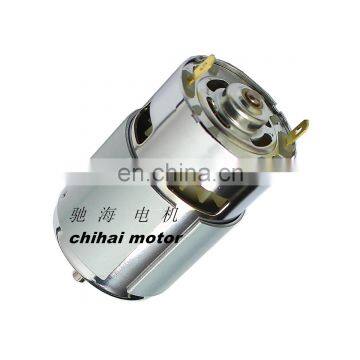

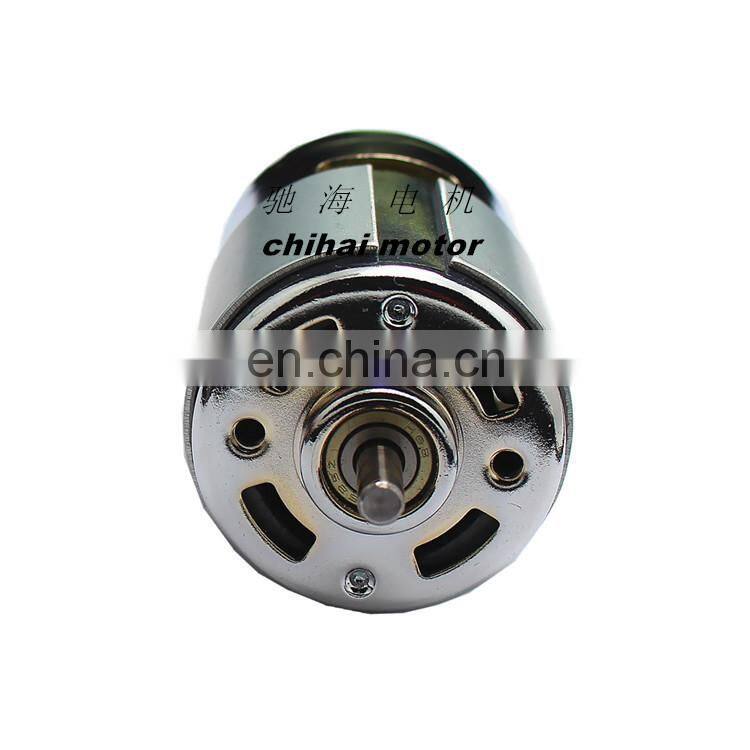

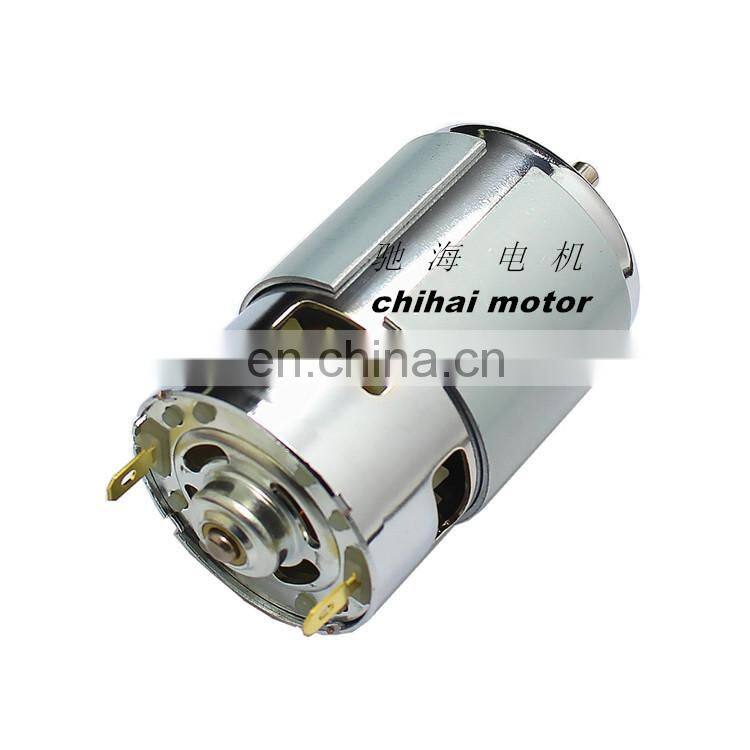

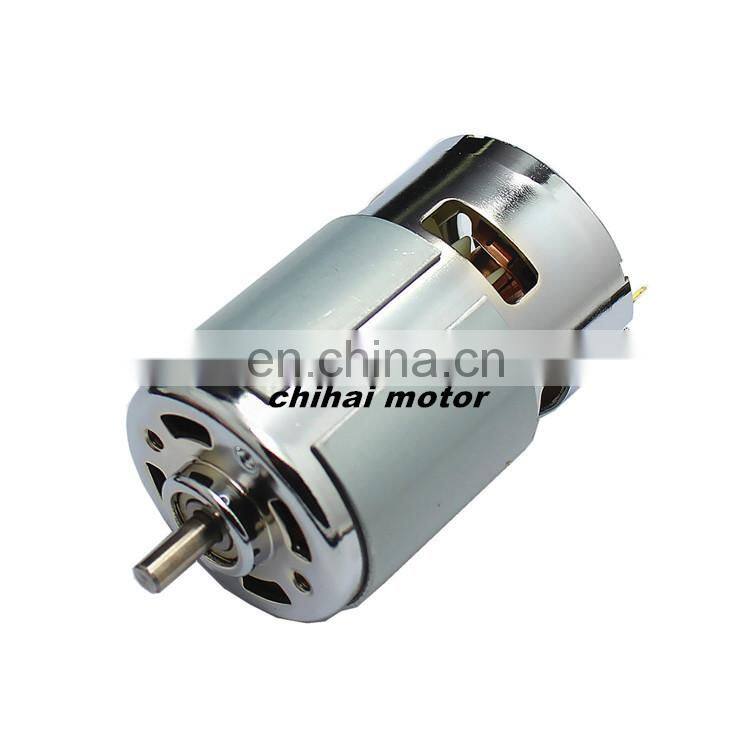

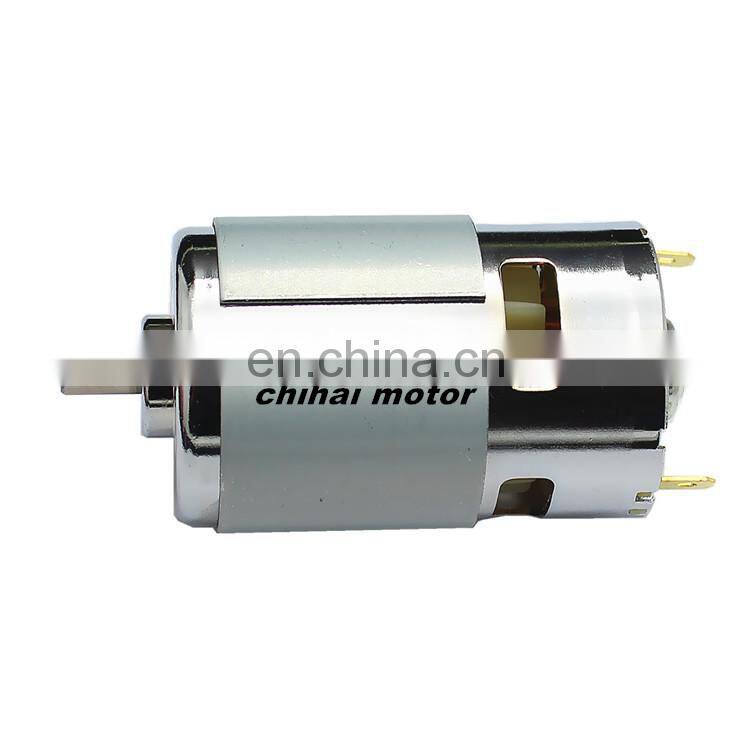

chihai CHR-S775 DC24V 8300RPM Permanent magnet Large Torque dc carbon brush motor
chihai motor CHR-S775 DC24V 8300RPM Permanent magnet Large Torque dc carbon brush motor
Brand: |
Chihai motor |
Model: |
CHR-S775 Permanent magnet dc carbon brush motor |

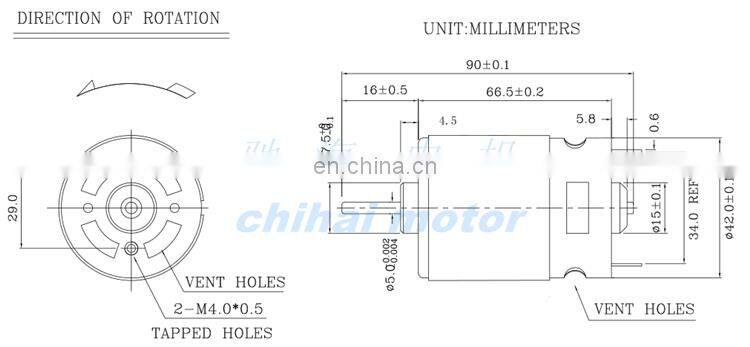

Motor size: |
With protection magnetic ring Φ45mm Without protection magnetic ring Φ42mm |
Shaft size: |
Φ5mm Length 16mm |
Voltage : |
DC 6-24V |

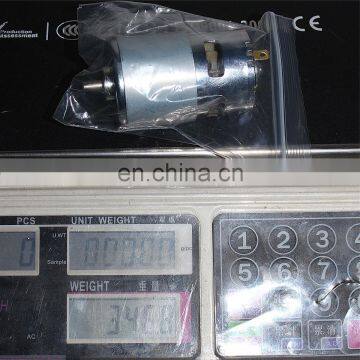

Weight: |
About 360g |
Inner structure: |
High insulation grade for ferromagnetic magnet rotor with additional cooling fan |

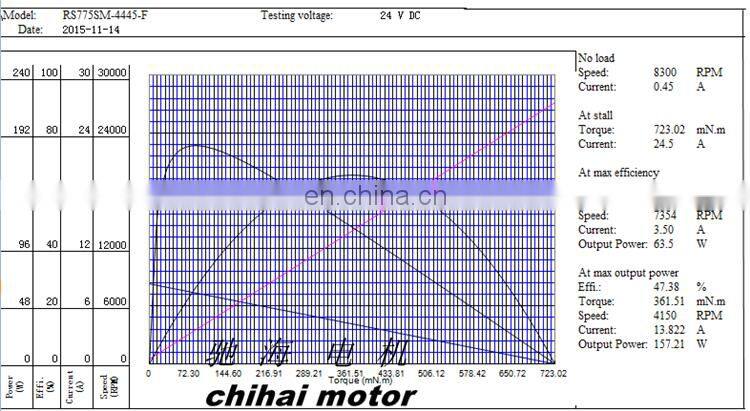

performance parameters: |
DC 6V 2000rpm rated torque 1.0kg.cm/1000rpm DC 12V 4100rpm rated torque 2.0kg.cm/2000rpm DC 24V 8300rpm rated torque 4.0kg.cm/4000rpm |
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 15-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
