Home > Products > Stepper motor > chihai motor CH-10BY-1557 DC 6.0V 10mm micro slider linear stepping motor screw motor with bracket

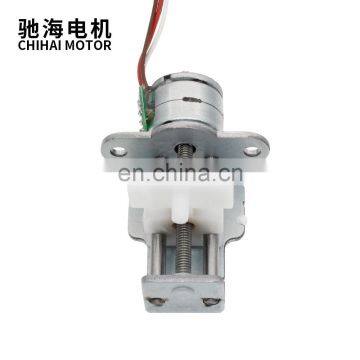

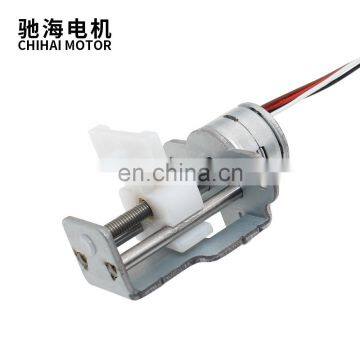

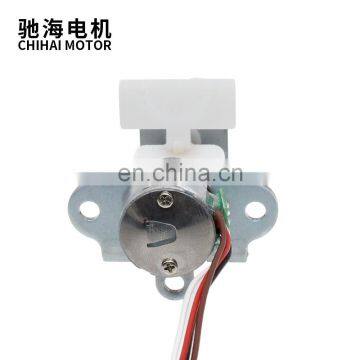

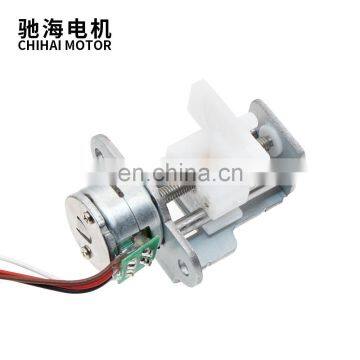

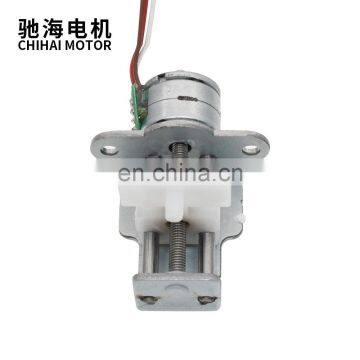

chihai motor CH-10BY-1557 DC 6.0V 10mm micro slider linear stepping motor screw motor with bracket
- 1000 Piece / Pieces per Month
- T/T Credit Card
- SM1545-M3*P0.5 1mm Micro Linear Stepping Motor 9V Screw motor Permanent Magnetic bipolar 18 degree stepping motor for 3D printer
- CHIHAI motor CHR-GM12-15BY Permanent magnet brushless stepper motor for smart selfie stick and robot
- Chihai Motor CHS-GM12-15BY-50-32.3 M3 DC Stepping Motor Intelligent Pan Head Instrument Robot Motor for Monitor cradle
- ChiHai Motor CHS-GM12-10BY 10mm 2 phase 4 wire mini dc Stepper gear motor for ip camera 39 Ohm DC 5.0V for medical equipment
- ChiHai Motor CHS-GM1024-10BY 2 phase 4 wire Stepper Gear Motor 39 Ohm DC 5.0V Intelligent Pan Head Instrument Robot Motor
- Chihai Motor CHP-42BY-4226 short Planetary gear deceleration stepper motor Manipulator 3D photography guide rail motor
Product Details
Brand Name: | chihai motor | Place of Origin: | Guangdong, China | Model Number: | CH-10BY-1557 |
Product Description
product model: | CH-10BY-SM1577 mini permanent magnet brushless stepping linear motor | ||||||
axle diameter: | Output shaft M3XP0.5 drive screw Material SUS303 Right handed the CW | ||||||
Drive mode: | Two phase four wire drive | ||||||
voltage range: | DC 3.0-12.0V rated 9.0V drive | ||||||
Weight: | About 50g | ||||||
Application: | Intelligent lamps, intelligent robots, intelligent lifting system |
Rated voltage: | DC6.0V test drive IC chip | ||||||
current: | 400mA/phase | ||||||
resistance: | 15±10% ohm | ||||||
Drive mode: | Two -phase four- wire system | ||||||
Step angle: | 15°/step | ||||||
Pull-out torque: | 200g AT 500pps | ||||||
Max starting frequency: | 900pps | ||||||
Max response frequency: | 1200pps | ||||||
Insulation class: | Class E for coils | ||||||
Insulation resistance: | 50MΩ DC500V | ||||||
Temperature range: | 0 - +55℃ |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ATTENTION:
If special customs clearance documents are required, please contact us in advance for confirmation.
Q:1.What kind of motors you can provide?
A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5.Could you send me free samples?
Yes,also we can return your samples fee back when you place order.
