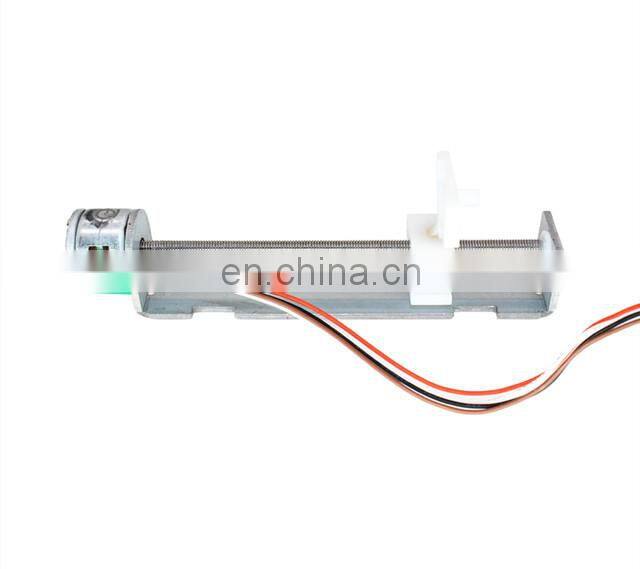

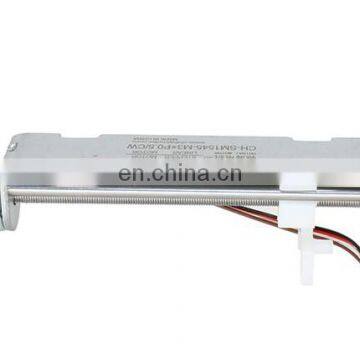

SM1545-M3*P0.5 1mm Micro Linear Stepping Motor 9V Screw Motor Permanent Magnetic Bipolar 18 Degree Stepping Motor for 3D Printer
US$ 3.8 - 5
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
chihai
Place of Origin:
Guangdong, China
Model Number:
CH-SM1545-M3*P0.5
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHIHAI Motor CHR-GM12-15BY Permanent Magnet Brushless Stepper Motor for Smart Selfie Stick and RobotUS$ 9 - 9MOQ: 1 Piece -
Chihai Motor CHS-GM12-15BY-50-32.3 M3 DC Stepping Motor Intelligent Pan Head Instrument Robot Motor for Monitor CradleUS$ 2 - 12.5MOQ: 1 Piece
-
ChiHai Motor CHS-GM12-10BY 10mm 2 Phase 4 Wire Mini dc Stepper Gear Motor for ip Camera 39 Ohm DC 5.0V for Medical EquipmentUS$ 2.5 - 12.5MOQ: 1 Piece
-
ChiHai Motor CHS-GM1024-10BY 2 Phase 4 Wire Stepper Gear Motor 39 Ohm DC 5.0V Intelligent Pan Head Instrument Robot MotorUS$ 9.5 - 12MOQ: 1 Piece
-
Chihai Motor CHP-42BY-4226 Short Planetary Gear Deceleration Stepper Motor Manipulator 3D Photography Guide Rail MotorUS$ 36.2 - 53.5MOQ: 1 Piece
Brand Name
chihai
Place of Origin
Guangdong, China
Model Number
CH-SM1545-M3*P0.5
Certification
CE
SM1545-M3*P0.5 1mm Micro Linear Stepping Motor 9V Screw motor Permanent Magnetic bipolar 18 degree stepping motor for 3D printer

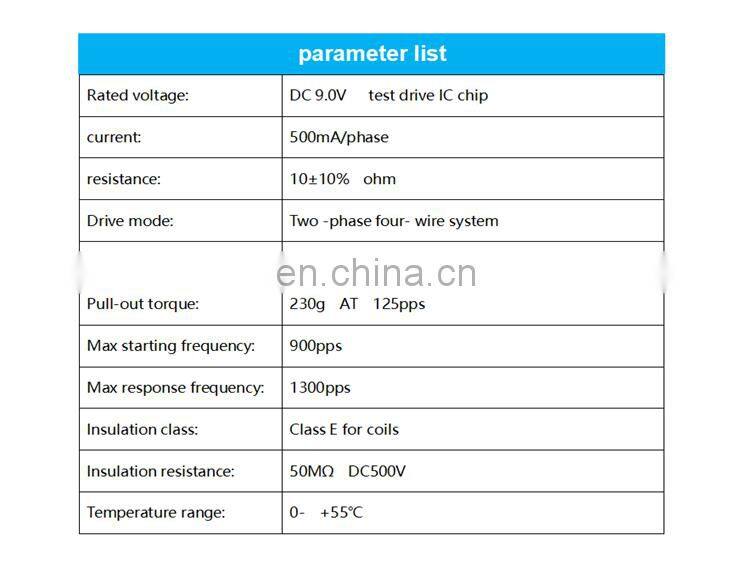

Technical data
Brand: |
Chihai motor |
Type: |
CH-SM1545-M3*P0.5 Permanent magnet Micro Linear Stepping Motor |
External diameter: |
15X14.5X88mm |
axle diameter: |
Output shaft M3XP0.5 drive screw Material SUS303 Right handed the CW |
Drive mode: |
|
Voltage range: |
DC 3.0-12.0V rated 9.0V drive |
Weight: |
About 40g |
Application: |
The micro sliding table,micro 3D printer, Micro engraving machine,Micro intelligent equipment |

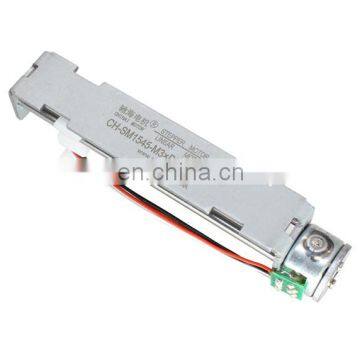

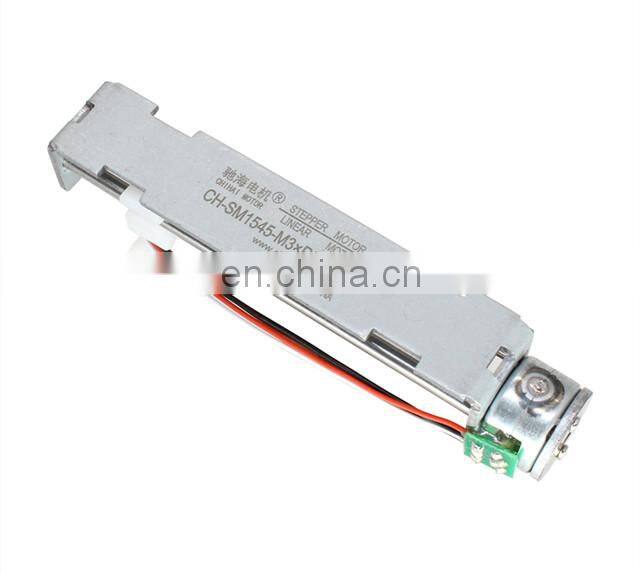

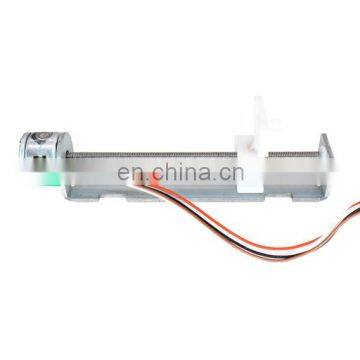

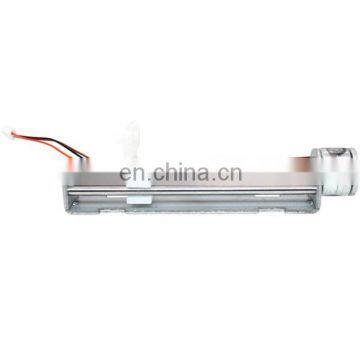

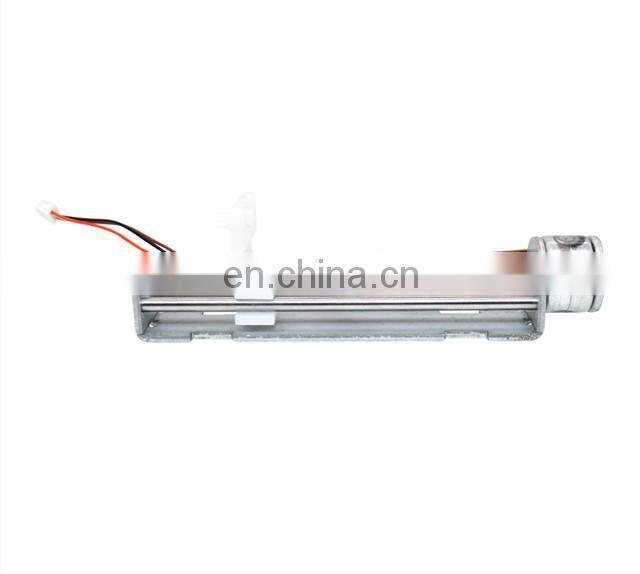

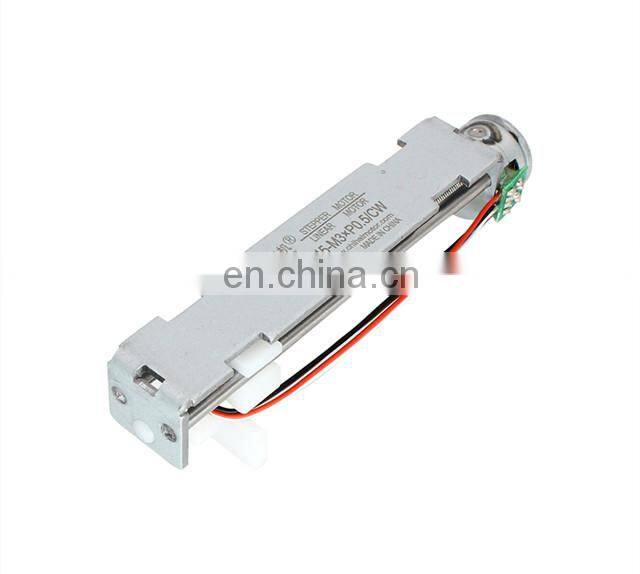

Detailed images

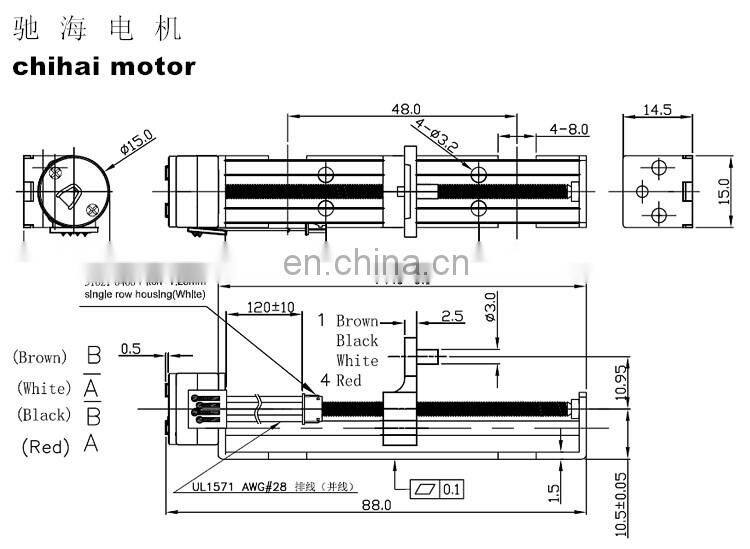

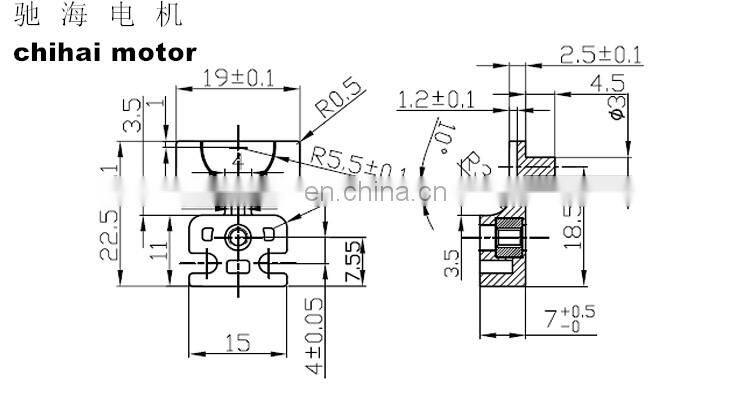

Gear Motor Dimension

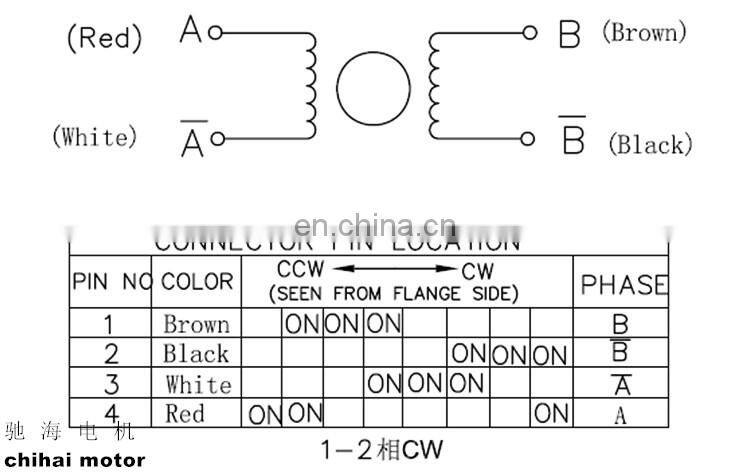

Functional descript
About us
package
faq
