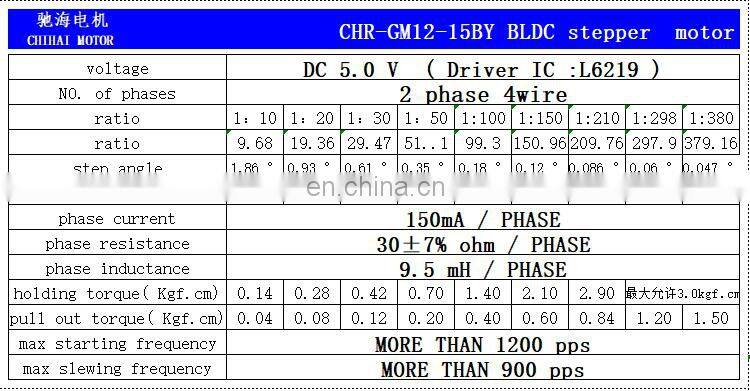

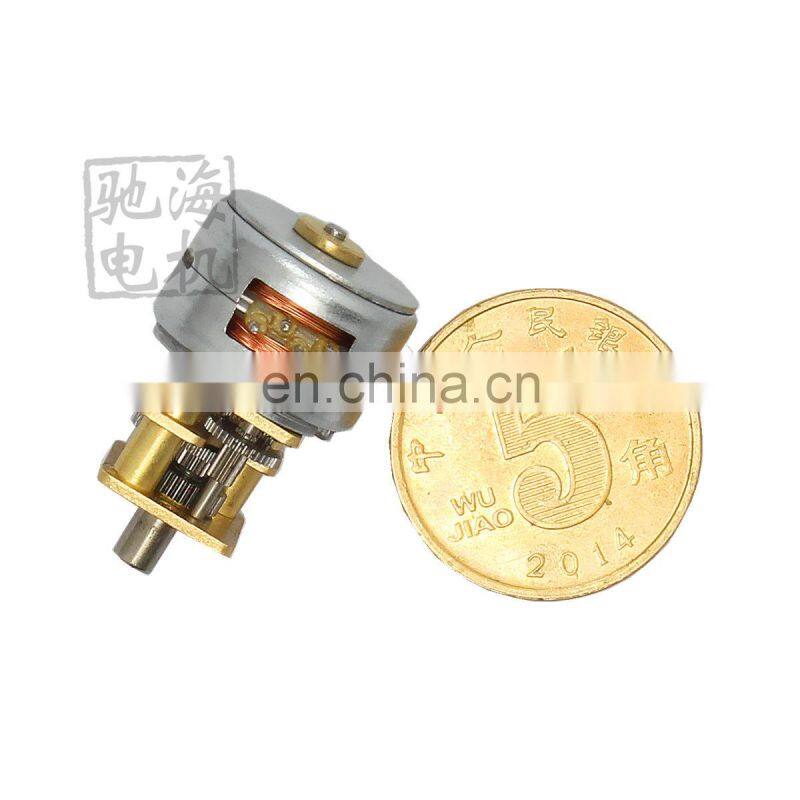

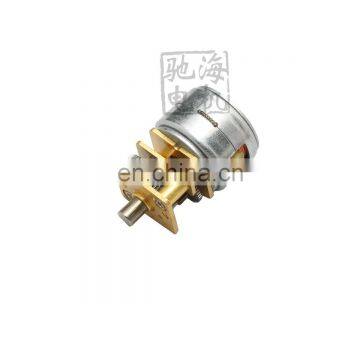

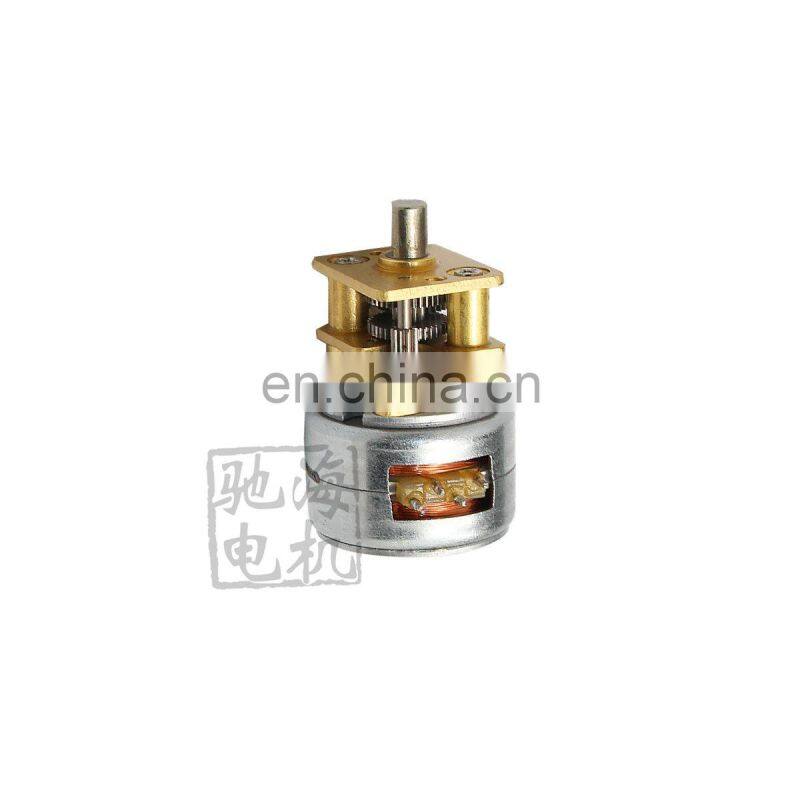

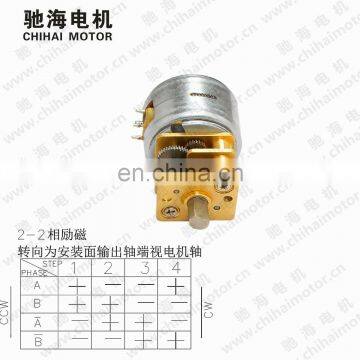

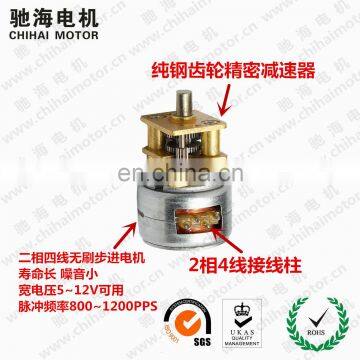

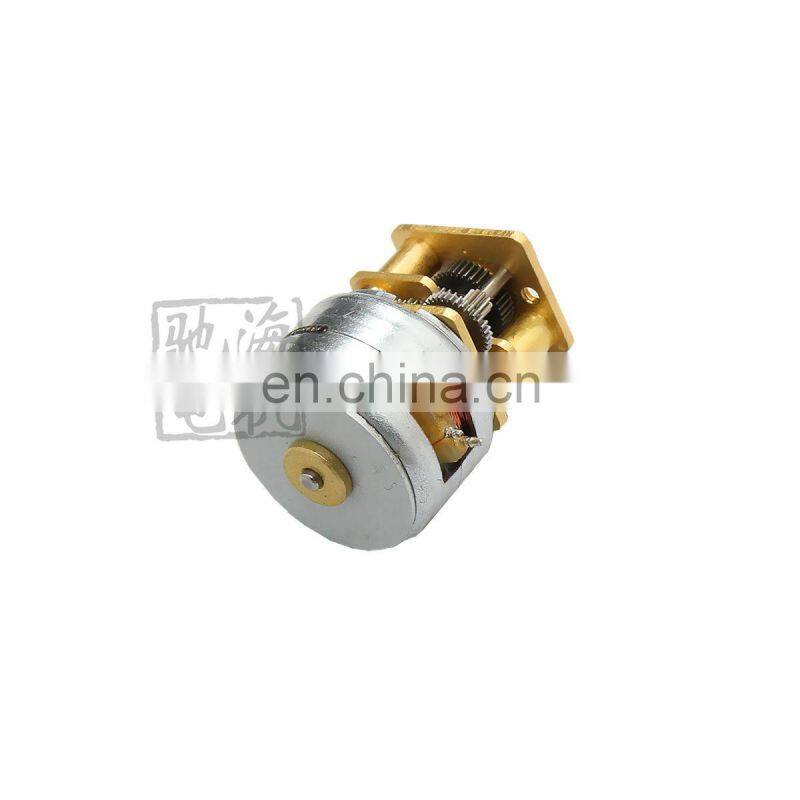

CHIHAI motor CHR-GM12-15BY Permanent magnet brushless stepper motor for smart selfie stick and robot

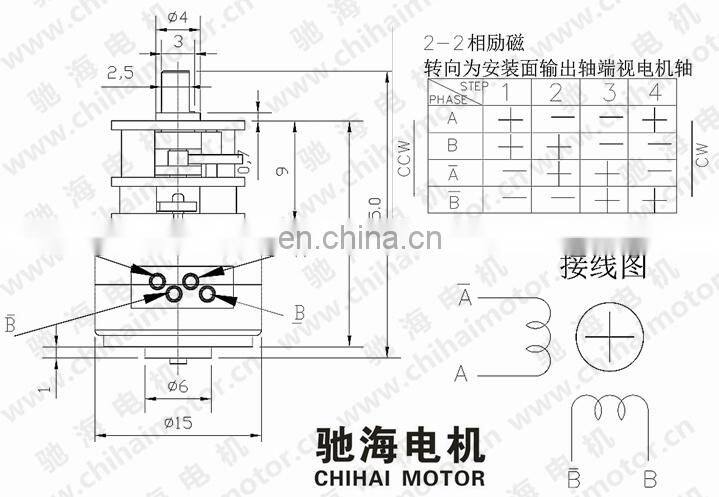

Model: |
GM15BY Permanent magnet stepping brushless dc reduction motor |

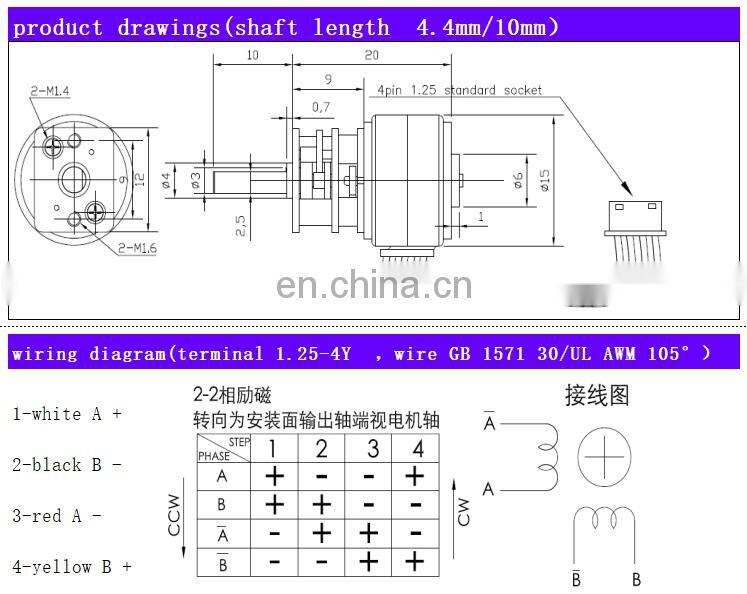

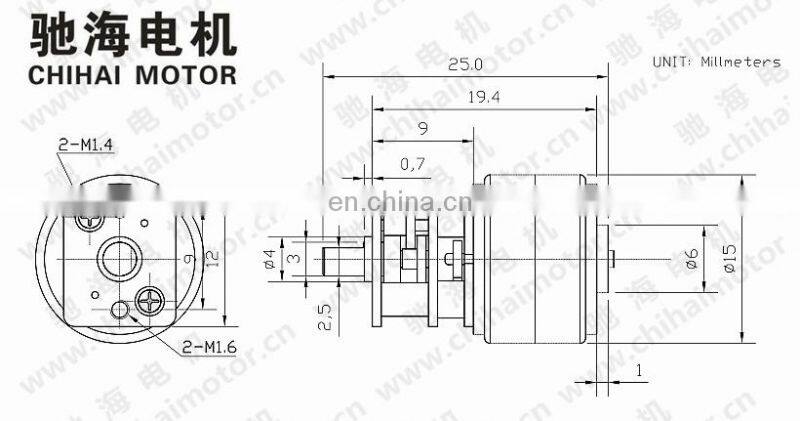

Size: |
¢15*20.5mm (not include the length of the axis) |
Shaft length: |
4.4mm One-way out shaft (have 10mm) |
Shaft diameter: |
3mm D type shaft |
Voltage: |
5-12V |
Weight: |
About 13g |
Speed reduction ratio can be customized
Stock:Ratio 1:150
This motor is a standard motor produced by our company. It has been widely used in the peripheral products of smart phones, such as smart selfie stick, smart camera cradle, smart robot camera Angle, smart micro robot Angle sensing and so on
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
