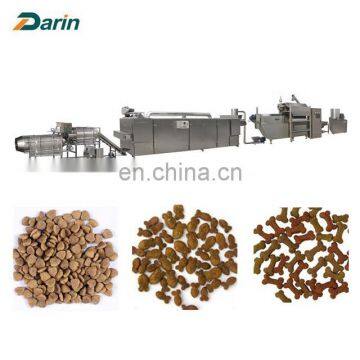

DR Series Pet food extruder is suitable to make dry pet food and floating fish food for dog, cat, fish, bird, etc.
Why Choose Us?
1. WEG or Siemens motor
2. PLC and touch screen to control the whole line, all faults will display on the touch screen
3. ABB or Schneider electric parts
4. All parts touch with raw materials or final products are made of stainless steel
5. 24V operation voltage, assure the safety of operators
Technical Parameters
Model |
DR-65 |
DR-70 |
DR-85 |
DR-90 |
Capacity |
120-150kg/hr |
150-300kg/hr |
500-800kg/hr |
800-1000kg/hr |
Power |
80kw |
90kw |
150kw |
200kw |
Dimension |
18 x 5 x 3m |
20 x 5 x 3m |
35 x 5 x 3m |
40 x 5 x 3m |
For each line, 6 sets molds are provided for free. The mold shape and size can be customized as client's request.
|
|
|
Flour mixer Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives. |
Screw conveyor Screw Conveyor is used to the convey the materials to the feeder of the extruder. |
|
|
|
Double screw extruder Double screw extruder can make dry pet food for dog, cat, fish etc. Different sizes and shapes can be made by changing the molds. Different capacity for choice, such as 150kg/hr, 300kg/hr, 500kg/hr, 800kg/hr, 1ton/hr, 3ton/hr.
|
Sifter & Air conveyor

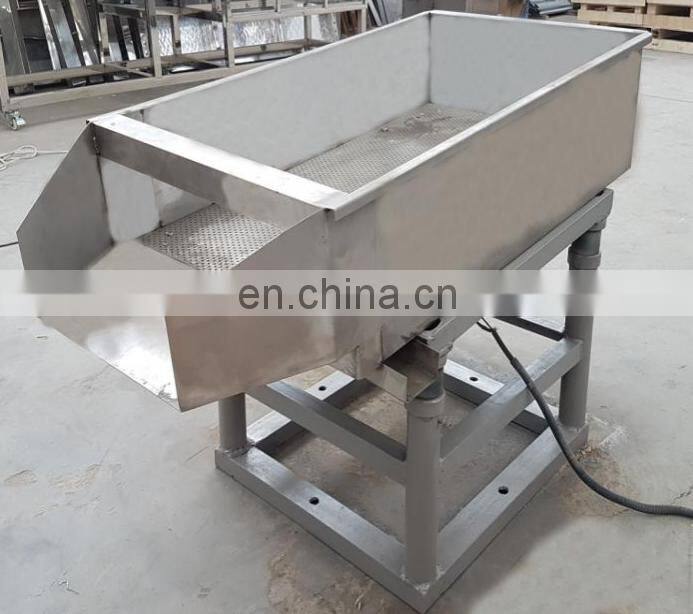

Vibrating Sifter is a conveyer. It uses to convey the raw material to next equipment, and at the same time, it sifts to prevent the raw materials sticking together. |
|
|
|

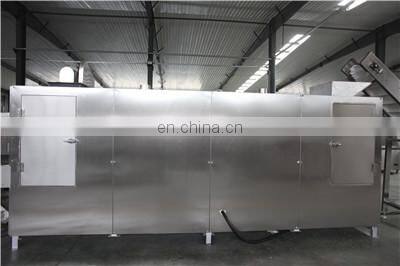

Dryer Roaster is used to dry a wide range of products, such as dog snacks, corn flakes, core filling food, pet food etc. |
Flavoring system Flavoring System is used to evenly spray the flavor powder and oil onto snacks.
|
1. Flow chart: flour mixing-screw covneying-extruding-sifting-air conveying-drying-flavoring-packaging
2. Raw materials: corn flour, rice flour, wheat flour, fish bone meal, chicken powder, glycerol etc.
3. Voltage: normally 380v, 50hz, 3 phase, also can customize as client's local voltage.
4. Adopt Siemens motor, prolong the machines usage life.
5. Siemens PLC and touch screen make the line more easier to operate, the fault will display on the screen directly, no need to check the machine one by one.
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. At buyer's request,1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line..
5. Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer’s detailed formula.
6. It normally costs 10-14 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
Now Darin team have installed our processing line in more than 60 countries of the world.
Darin use standard export wooden case, suitable for long terms transportation on the sea, and multi times loading and unloading by trucks or forklift.
Established in 2006, Darin is a fast growing manufacturer for automatic food processing machine. The leading machine includes:
For human food
Cereal bar molding machine
Muesli bar cutting machine
Mini granola bar former
Corn flakes extruding line
Core filling snack extruding line
Nutrition powder extruding line
For Pet food
Pet food extruding line
Pet treat extruding line
Meat strip machine with auto tray system
Cold extrusion machine
Pet treat injection molding machine
Rawhide bone pressing machien
Mini lab extruder
Darin manufacturers also supplementary machine like: extruding puffer, air puffer, sugar melting tank, mixer, puffing rice collector, chocolate coating, cooling tunnel, types of cutters, continuous fryer etc.
Now Darin is making efforts to make all machine high automatic. Keeping automation, quality and services always in mind, Darin is doing better and better.
Darin, a very reliable business partner, sincerely hope to do business with clients from all over the world.
Darin is an ISO9001 certified company, and all DARIN's machine are CE approved.
1. Could we visit your factory to check the machine carefully and closely?
You’re more than welcome to visit Darin, will provide machine test running, face to face discussion and turnkey project design solution.
2. Could you afford technician team to guide our installation and commissioning?
Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
3. How long is your machine's guarantee time?
One year since the machine arrive your factory.
4. If some parts break after warranty, what should we do?
Darin supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.
5. If we show our workshop size, can you design layout for the whole line?
Auto CAD layout will be provided as client’s workshop size.
6. What is the material of the machine?
Stainless steel, especially parts contacting with materials, conforming to food grade.
