Help Center100% Beef Natural Dog Treat Rawhide Dog Snack Pressing Machine
Related Products
-
Natural Rawhide Pressed Dog Bone Chews Pressing MachineUS$ 9,000 - 20,000MOQ: 1 Set -
Silicone Gel Dog Bones ,dog Chews Bleached Rawhide Knotted Bone Pressing MachineUS$ 9,000 - 20,000MOQ: 1 Set
-
Rawhide Dog Bones and Dried Fish Skin Dog Chews Pressing MachineUS$ 9,000 - 20,000MOQ: 1 Set
-
Fresh Sheet Meat Dog Treats Making MachineUS$ 25,000 - 100,000MOQ: 1 Set
-
Dog/cat/bird/fish/ China Pet Feed Production LineUS$ 29,000 - 35,000MOQ: 1 Set
2017 Darin Exhibition, Welcome to visit us!
Product Description

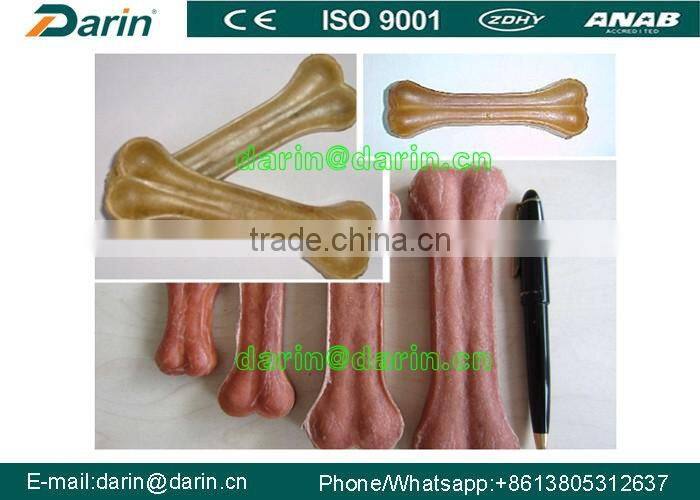

Dog Chew Bone Machine could produce pet chewing bone with cowhide, pigskin or sheepskin as material. It could press the material to be various shapes and sizes.
Features
1. This Dog Chew Bone Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2. It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
3. The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
4. Dog Chew Bone Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

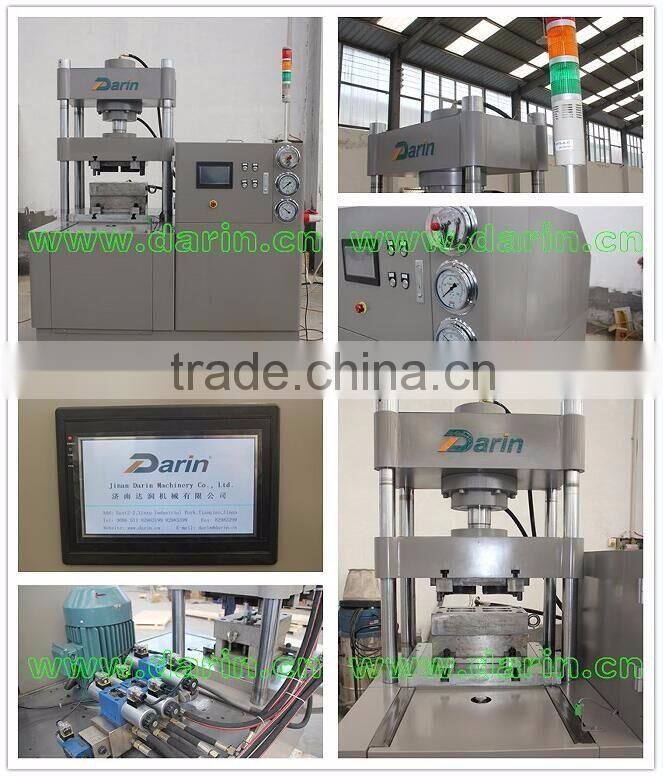

Machine Picture
Technical Parameters
Project |
DR-20T |
Liquid Pressure of Work (MPa) |
14-21 |
|
Theory Output (Ton) |
5-20 |
|
Working surface size (mm) |
Left and Right 500 |
| |
Working surface size (mm) |
|
Front and Back 400 | |
Height of Working Table Off the Ground(MM) |
780 |
Biggest Operational Height(mm) |
400 |
Close(mm) |
200 |
|
Cylinder Stroke(mm) |
200 |
Motor Power |
5.5KW |
Structural Style |
Flour Column Three Board |
|
Above Oil Cylinder |
|
Power source |
380VAC,50/60Hz |
Weight |
1108kg |
Dimension |
600*500*1780mm |
Certificate
Exhibition

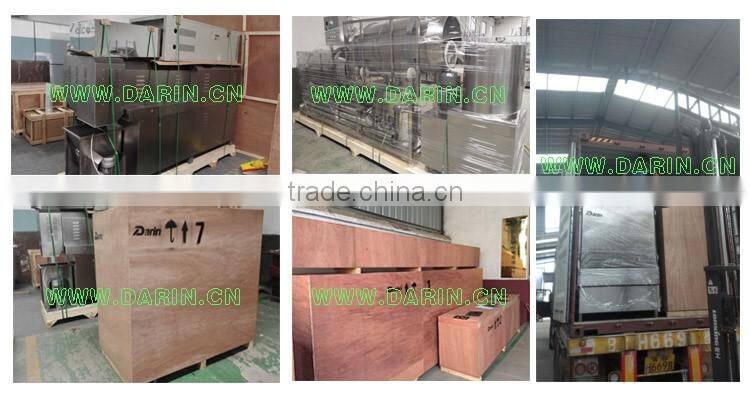

Packing & Shipping
Contact Us
We Provide You With Sincerely Service, if you have interest, contact us NOW!!!
