Chewing Dog Snack Making Machine

Product Specification

1. Chewing Dog Snack Making Machine can produce dog chew snacks and semi moist pet food.
2. It combines two processing lines into one: pet snacks and semi-moist pet food.
3. With different moulds, various shapes can be made, such as strip, stick, screw shape, etc.
4. All kinds of perfectly shaped non-crumbing chew snacks in a variety of color combinations.
5. Max. 3-color chew snacks can be produced.
6. Various shapes can be made, such as strip, stick, bone, screw shape, etc.
7. Many kinds of recipes to make different tastes to meet different market demands.
8. Turnkey project provided, from raw materials to packing procedures, fully continuous and automatic.
9. Fully stainless steel 304.

Why choose us?
1. Motors are from WEG, which has 3-year world-wide guarantee or Siemens Motor;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4. PLC and touch scrren controls whole processing line, not one or two single equipment;
5. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
6. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
7. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector

Technical Parameters

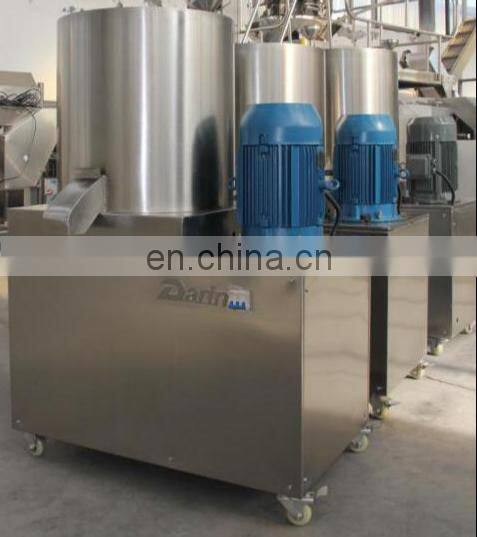

Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.

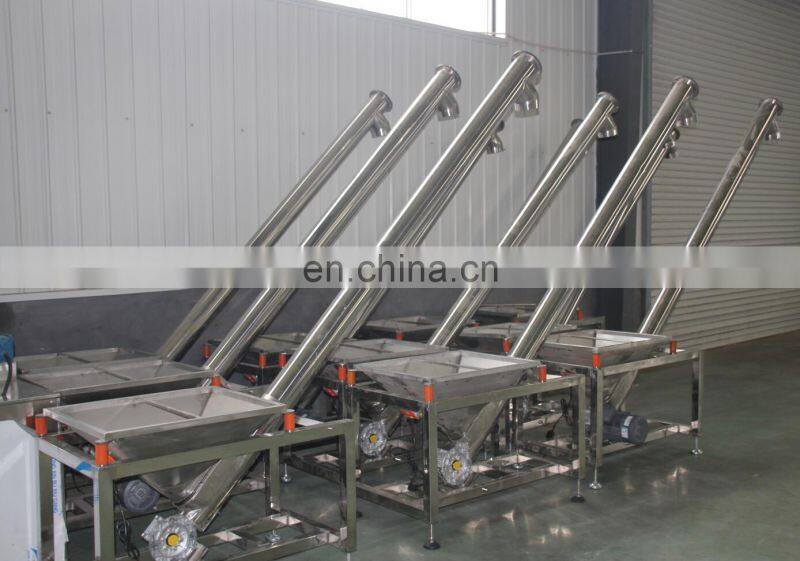

Screw Conveyor is used to the convey the materials to the feeder of the extruder.

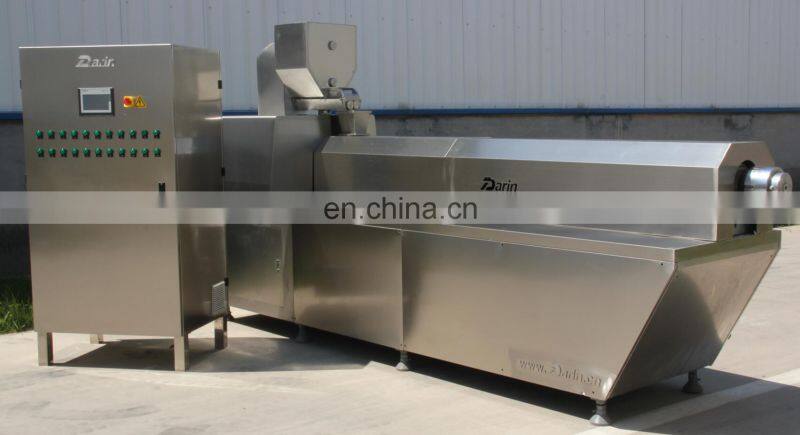

DRD-100/DRD-300 Single Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by one screw composed by sectional modules for the following functions: forward and backward transport, mixing, cooking and forming.

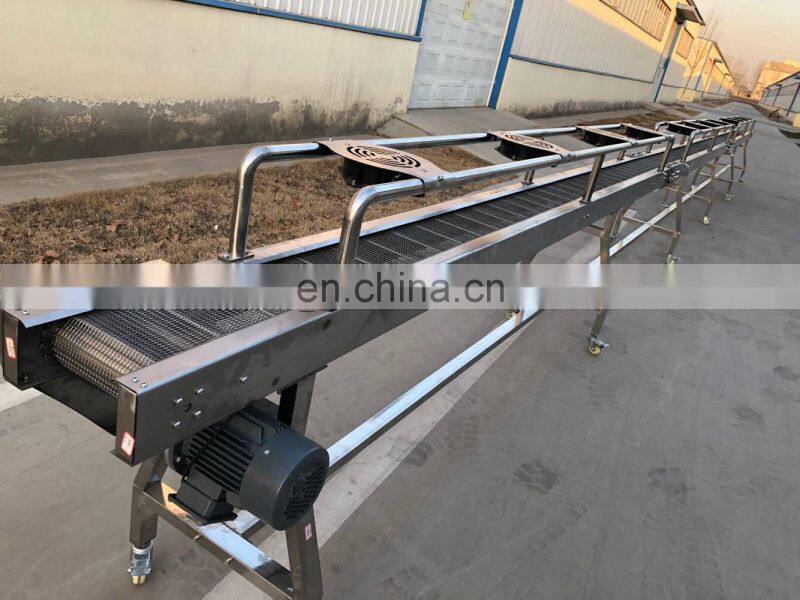

LQX8 Cooling Conveyer is to cool down the extruded chewing snacks.

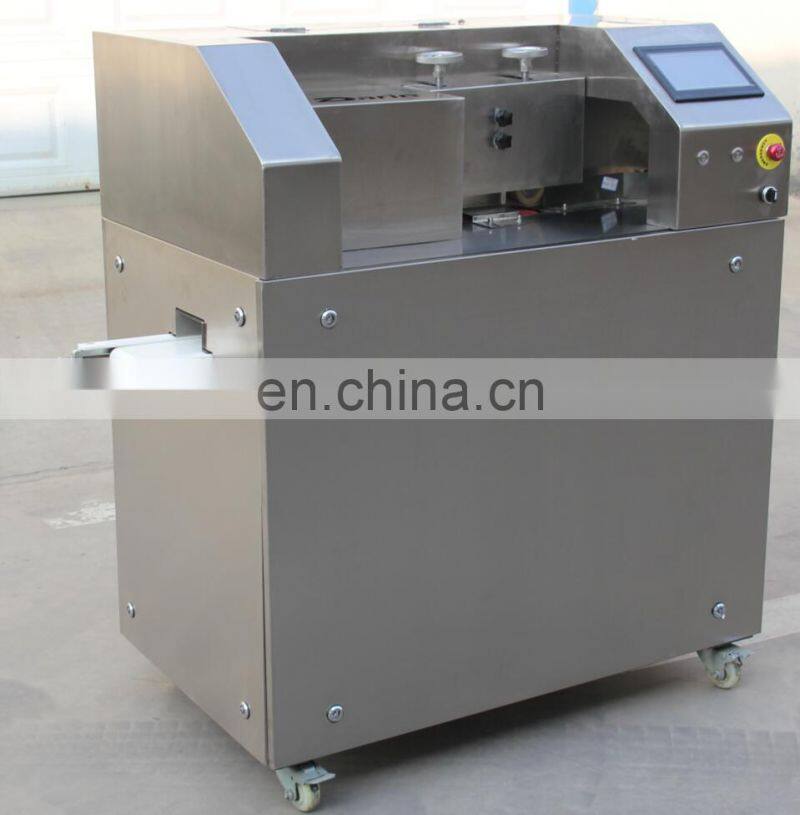

Cutting Machine is for cutting the pet treats as required length.

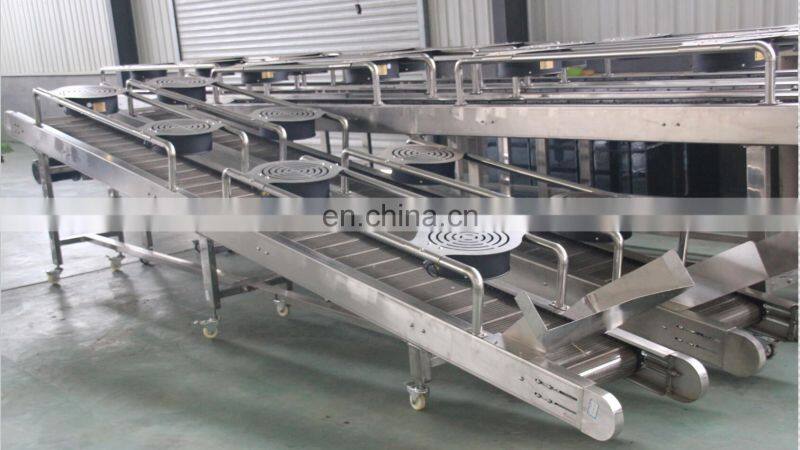

LQX-5 Cooling conveyer is used to cool the pet snacks after cutting.

Flow Chart

DARIN Factory

Commissioning Service

Youtube Link: https://youtu.be/cT6ifpTDcIkb, https://youtu.be/8z_6OiV0myg

Commissioning & After-sales Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

FAQ

1. Could we visit your factory to check the machine carefully and closely?

You’re more than welcome to visit Darin, will provide machine test running, face to face discussion and turnkey project design solution.

2. Could you afford technician team to guide our installation and commissioning?

Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.

3. How long is your machine's guarantee time?

One year since the machine arrive your factory.

4. If some parts break after warranty, what should we do?

Darin supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.

5. If we show our workshop size, can you design layout for the whole line?

Auto CAD layout will be provided as client’s workshop size.

6. What is the material of the machine?

Stainless steel, especially parts contacting with materials, conforming to food grade.
