Pet Treats/Dog Training Treats Injection Moulding Machine
Product Specification
Introduction
Injection Moulding Machine is special machinery for producing pet snacks. With suchmachine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
The shapes of pet treats are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.
Features
Injection Moulding Machine comes with user-friendly microprocessor controller with these following features:
a) Equipped with servo motor to realize higher efficiency and lower consumption.
b) Dust, oil proof and colorful touch switch control panel.
c) El display of pressure, speed, time and distance for each motion.
d) Shut-down device with 100 presets mold data memory.
e) Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
f) PID barrel temperature control: temperature abnormal & electrical wire breaking alarm.
g) SSR-solid state temperature controller.
h) Screw cold start protection.
i) Abnormal shot detection.
j) Output quantity and packaging quantity preset.
k) Clamping, injection and ejection, and carriage action (option) by linear potentiometer.
l) Screw rotating speed read-out.
m) Security code function to avoid missing data or careless changing.
n) Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.
Technical Parameters:
Item | Name of item | Unit | DM268B-I |
Injection Unit | Screw Diameter | mm | 55 |
Screw L/D Ratio | Ratio | 20 | |
Injection Volume (Theoretical) | cm | 601 | |
Injection Weight (PS) | g | 548 | |
Injection Pressure | Mpa | 185.1 | |
Injection Rate into Air | g/s | 223.7/276.1 | |
Injection Stroke | mm | 256 | |
Injection Speed | Mm/s | 95/116 | |
Screw Speed | rpm | 201/246 | |
Clamping Unit | Clamping Force | KN | 2600 |
Clamping Stroke | mm | 550 | |
Space Between Tie-bars | mm×mm | 580 x 580 | |
Max. Mould Height | mm | 600 | |
Min. Mould Height | mm | 250 | |
Ejector Stroke | mm | 160 | |
Hydraulic Ejection | KN | 68 | |
Ejector Rob Quantity | pcs | 9 | |
Others | Max. Pump Pressure | Mpa | 17.5 |
Pump Motor Power | kw | 22/30 | |
Heater Power | kw | 15.9 | |
Hopper Volume | L | 50 | |
Oil Pump Volume | L | 550 | |
Machine Weight | t | 8.5 | |
Mould Positioning Ring Diam | mm | 160 | |
Sphere Radius | mm | SR10 | |
Machine Dimension | m x m x m | 5.82 x 2 x 2 |

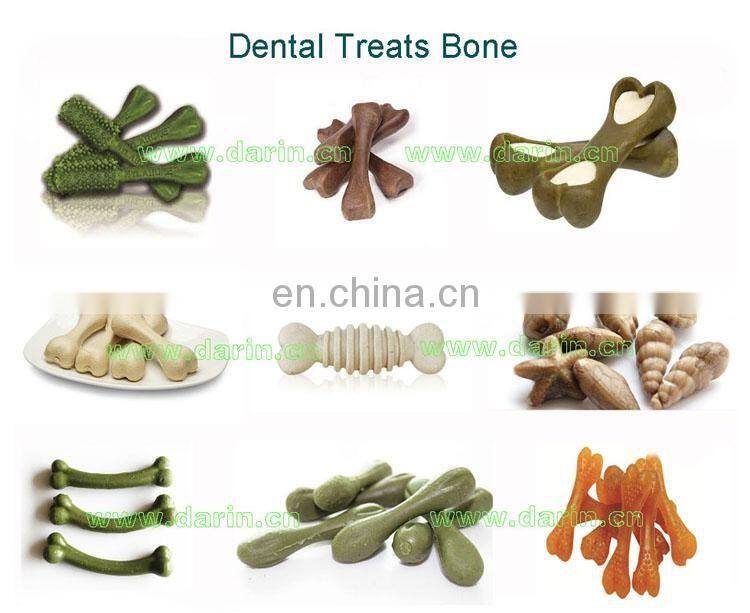

Sample Show

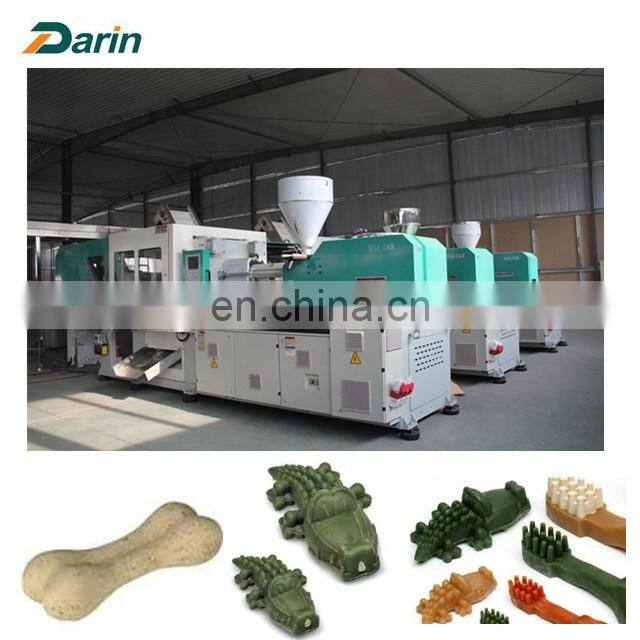

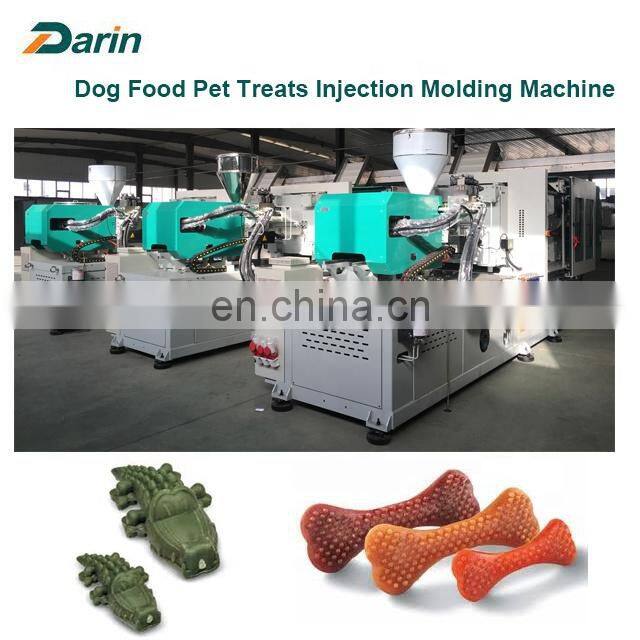

Machinery Show

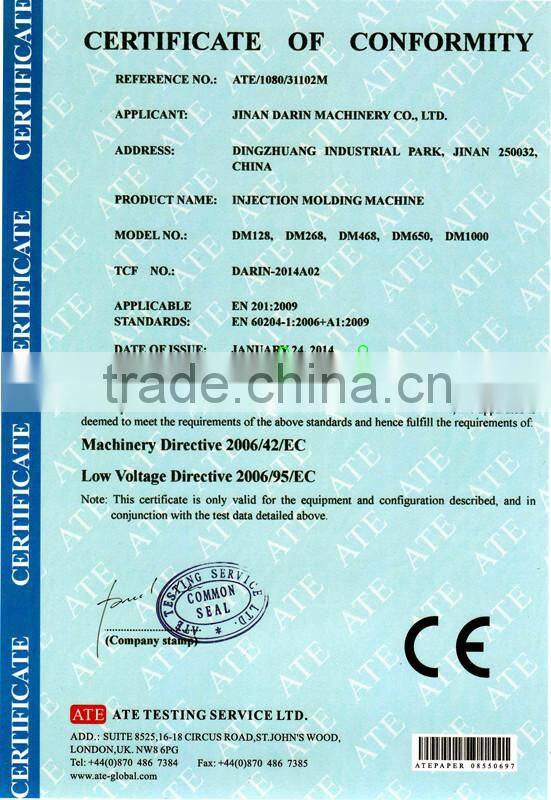

Certificate
CE CERTIFICATE AND ISO 9001 CERTIFICATE supplied with good quality and stable performance.
Trade Show
Customers All Over the World
Contact Us
If more information needed, please do not hesitate to contact us!!!
