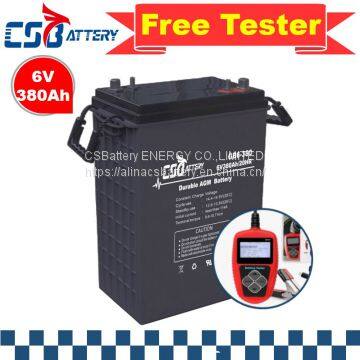

Help CenterCsbattery 6V210ah Sealed-Lead-Acid AGM Battery for Forklift/Charger/Telecom/Power-Tools/Solar/Ali
Related Products
-
Csbattery 12V15ah Rechargeable AGM Battery for RV/Marine/UPS/Solar/Security/Fire/Golf-CarUS$ 12.07 - 13.69MOQ: 12 Pieces -
Csbattery 6V380ah Solar-Akkumulator Gel Battery for Golf-Carts/Boats/Electric-Vehicles/Electric-Wheelchairs/Vs: Csb/Fortune/AliUS$ 168.98 - 204.665MOQ: 24 Pieces
-
Csbattery 12V26ah Rechargeable Gel Battery for Electric-Folklifts/Electric-Bicycles/Scooters/Pump/Medical/AliUS$ 35.69 - 48.67MOQ: 500 Pieces
-
Csbattery 2V1200ah Maintenance-Free-Rechargeable AGM Battery for High-Recombination-Efficiency/VFD-Systems/Stationary/RenewableUS$ 498.65 - 675.36MOQ: 24 Pieces
-
Csbattery 12V160ah Front Access Telecom AGM Battery for Back-up/Cabinet-Telecom-Station/Switchgear/CommunicationsUS$ 146.98 - 175.639MOQ: 24 Pieces
Voltage: 12V
Capacity: 12V15Ah~12V250Ah
Designed floating service life: 8-10 years @ 25 °C/77 °F.
Summary for solar agm battery
CSBattery GB series lead acid batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle. The CSBattery VRLA AGM battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the GB range features 30% higher cyclic life with 10 years of float life when compared to the other standard Duration range.
Features and Advantages for sealed free maintenance lead acid battery
30% more cyclic life through innovation at the PAM additives
Long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20 °C to 50°C
3% Low self-discharge rate
Very good deep cycle performance: up to 700 cycles @50% DOD
Excellent deep discharge recovery capability
Construction for VRLA AGM battery
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover -Fire resistance ABS, water proof
Pillar seal - Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
Applications for VRLA SMF battery
Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Servers, Telecom, Emergency systems, Security systems, and so on.
Charging voltage and settings for Sealed MF VRLA AGM battery
l . Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
6. Max. charge current allowable : 0.25C
| 6V SEALED FREE MAINTENANCE AGM BATTERY | |||||||||
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| GB6-180 | 6 | 180/10HR | 260 | 180 | 247 | 251 | 27.5 | 27.7 | M8 |
| GB6-180A | 6 | 180/10HR | 306 | 168 | 220 | 226 | 27 | 27.2 | M8 |
| GB6-200 | 6 | 200/10HR | 260 | 180 | 247 | 251 | 29.5 | 29.7 | M8 |
| GB6-200A | 6 | 200/10HR | 323 | 178 | 224 | 229 | 29.5 | 29.7 | M8 |
| GB6-200D | 6 | 200/20HR | 306 | 168 | 220 | 222 | 30 | 30.3 | M8 |
| GB6-210D | 6 | 210/20HR | 260 | 180 | 247 | 249 | 29.5 | 29.8 | M8 |
| GB6-220D | 6 | 220/20HR | 306 | 168 | 220 | 222 | 31.5 | 31.8 | M8 |
| GB6-225D | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.5 | 30.8 | M8 |
| GB6-310D | 6 | 310/20HR | 295 | 178 | 346 | 366 | 46 | 46.5 | M8 |
| GB6-330D | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | 47.1 | M8 |
| GB6-380D | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | 55.8 | M8 |
| GB6-420D | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | 57.3 | M8 |
CSBattery Product Structure
-------------------------------------------------------------------------------------------------
| Component | Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar seal |
| Features | Thick high Sn low Ca grid with Special paste | Balanced Pb-Ca grid for improved recombinati on efficiencv |
Fire resistanc e ABS (UL94-V0octional) | Flame Si-Rubber and aging resistance |
Female Copper lnsert | Advanced PVC /AGM separator for high pressure cell desbm |
Silicon Gel | Two layers epoxy resin seal |
Ø Separator : Imported Amer-sil PVC separator for Gel battery Ø Electrolyte : nano GEL electrolyte
Ø Battery container and cover : ABS for higher temperature Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Ø Relief valve : Complete with integrated flame arrestor
CSBattery Assembling
CSBattery Quality Control
CSBattery Certifications
Ø IEC 60896-21/22 Ø IEC 61427 Ø ISO9001/14001/18001 Ø Eurobat guide, long life Ø BS6290 part 4
Ø GB/T 22473 Ø CE Ø MH63727-UL
CSBattery Packing and Loading
CSBattery Projects
CSBattery Applications
Ø Electric Powered Vehicles Ø Wheel Chairs Ø BTS Stations Ø Medical Equipment Ø Solar and Wind Ø Golf Cars and Buggies Ø Power Tools Ø Control System Ø UPS systems Ø Emergency systems
CSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.CSBattery Customers
