Home > Products > opZs > CSBattery High-Temp Deep Cycle GEL 12V/6V/8V Battery HTB12V Patented High-Temp Deep Cycle Solar Gel Battery, Own 15-20years Long Life, Your Best Partner for Solar Market and Hot Area. CSBattery HTB Series of 12V GEL Deep Cycle Batteries Are Recognized as
CSBattery High-Temp Deep Cycle GEL 12V/6V/8V Battery HTB12V Patented High-Temp Deep Cycle Solar Gel Battery, Own 15-20years Long Life, Your Best Partner for Solar Market and Hot Area. CSBattery HTB Series of 12V GEL Deep Cycle Batteries Are Recognized as
- shenzhen
- T/T
- 7 days
You May Like
-
Csbattery 6V210ah Sealed-Lead-Acid AGM Battery for Forklift/Charger/Telecom/Power-Tools/Solar/Ali
-
Csbattery 6V380ah Solar-Akkumulator Gel Battery for Golf-Carts/Boats/Electric-Vehicles/Electric-Wheelchairs/Vs: Csb/Fortune/Ali
-
Csbattery 12V26ah Rechargeable Gel Battery for Electric-Folklifts/Electric-Bicycles/Scooters/Pump/Medical/Ali
-
Csbattery 2V1200ah Maintenance-Free-Rechargeable AGM Battery for High-Recombination-Efficiency/VFD-Systems/Stationary/Renewable
-
Csbattery 12V160ah Front Access Telecom AGM Battery for Back-up/Cabinet-Telecom-Station/Switchgear/Communications
-
Csbattery 12V250ah Solar Gel Battery for Industrial/VRLA/Forklift/Maintenance-Free/Lighting/Ali
Product Details
| Brand Name | CSBattery | Place of Origin | China | |
| Model Number | OPzV1200 | Size | 275*210*645*681mm | |
| Weight | 93 | Voltage | 2v | |
| Usage | Other, solar | Nominal Capacity | 1200 | |
| Maintenance Type | Free | Sealed Type | Sealed |
Product Description

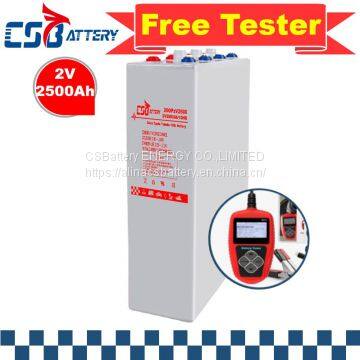

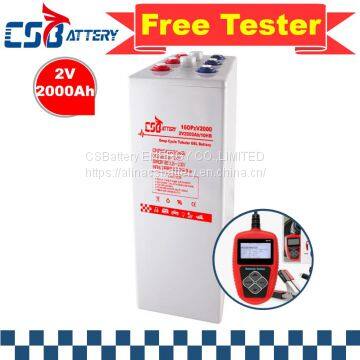

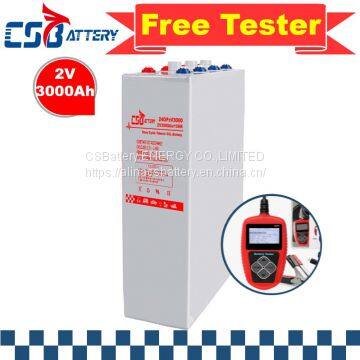

CSBattery GEL Battery solar storage 2V250ah 4OPzV250
OPzV Tubular Deep Cycle Solar gel battery, own 20-25years long life, your best partner for big Solar Power Sytem/Telecom System.
CSBattery OPzV 2V 12V Tubular GEL deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 20-25 years, 80% DOD over 2000 cycle Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.
OPzV Tubular Deep Cycle GEL Batteries 2V500Ah, 1000Ah, 1500Ah 2000Ah most popular models Advanced Features:
Ø Environmentally friendly Ø Completely Maintenance-Free ØNon-Spillable construction design.
Ø Wide Operating Temperature Range(-20°C~+60°C) Ø Longer Life(20years designed life) Ø Explosion Proof
Ø Valve Regulated & High Discharge Rate Capability Ø Low Self Discharge Ø Independent of Position
Ø Ease of Shipment Ø No need of balanced charge or boost Ø No Memory
Chinese Best Quality OPzV Tubular Deep Cycle Solar GEL Battery Applications:
Ø Communication equipment Ø Telecommunication control equipment Ø Emergency lighting systems Ø Electric power systems Ø Power station
Ø Nuclear power station Ø Solar powered and wind powered systems Ø Load leveling and storage equipment Ø Marine equipment Ø Power generation plants
Ø Alarm systems ØUninterruptible power supplies and stand-by power for computers Ø Medical equipment Ø Fire and security systems Ø Control equipment
Ø Stand-by electric power.
Product Parameters
-------------------------------------------------------------------------------------------------

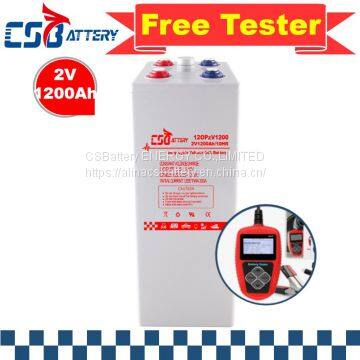

CSBattery GEL Battery solar storage 2V1000ah 12OPzV1200 sepcidication
| 12OPzV1200 | |||
| Nominal Voltage | 2V(Single Cell) | ||
| Design Floating Life @ 25ºC | 25 Years | ||
| Nominal Capacity @ 25ºC | 10 hour rate@120.0A,1.8V | 1200Ah | |
| Capacity @ 25ºC | 20hour rate (63A,1.8V ) | 1260Ah | |
| 5 hour rate (204A,1.75V ) | 1020Ah | ||
| 1 hour rate (758.4A,1.6V ) | 758.4Ah | ||
| Internal Resistance | Full Charged Battery@ 25ºC | ≤0.25mΩ | |
| Ambient Temperature | Discharge | -40ºC~70ºC | |
| Charge | -0ºC~50ºC | ||
| Storage | -20ºC~60ºC | ||
| Max.Discharge Current | @ 25ºC 4000A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40ºC | 105% | |
| 25ºC | 100% | ||
| 0ºC | 89% | ||
| -15ºC | 79% | ||
| Self-Discharge@25ºCper Month | 2% | ||
| Charge (Constant Voltage) @ 25ºC | Standby Use | Initial Charging Current Less than 240.0A Voltage 2.25-2.3V | |
| Cycle Use | Initial Charging Current Less than 240.0A Voltage 2.37-2.4V | ||
| Dimension (mm*mm*mm) | Length 275±1 * Width 210±1 * Height 666±1 (Total Height 681±1) | ||
| Weight (kg) | 92.5±3% | ||
| 2V OPzV Tubular GEL SEALED FREE MAINTENANCE BATTERY | |||||||||
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| 4OPzV200 | 2 | 200 | 103 | 206 | 375 | 390 | 18 | 19 | M8 |
| 5OPzV250 | 2 | 250 | 124 | 206 | 375 | 390 | 22.5 | 23.5 | M8 |
| 6OPzV300 | 2 | 300 | 145 | 206 | 375 | 390 | 25 | 26 | M8 |
| 5OPzV350 | 2 | 350 | 124 | 206 | 473 | 505 | 28 | 29 | M8 |
| 6OPzV420 | 2 | 420 | 145 | 206 | 473 | 505 | 32 | 33 | M8 |
| 7OPzV490 | 2 | 490 | 166 | 206 | 491 | 506 | 38 | 39 | M8 |
| 6OPzV600 | 2 | 600 | 145 | 206 | 666 | 681 | 46 | 47 | M8 |
| 8OPzV800 | 2 | 800 | 191 | 210 | 666 | 681 | 65 | 66 | M8 |
| 10OPzV1000 | 2 | 1000 | 233 | 210 | 666 | 681 | 74 | 75 | M8 |
| 12OPzV1200 | 2 | 1200 | 275 | 210 | 666 | 681 | 93 | 94 | M8 |
| 12OPzV1500 | 2 | 1500 | 275 | 210 | 795 | 831 | 112 | 113 | M8 |
| 16OPzV2000 | 2 | 2000 | 399 | 214 | 792 | 807 | 152 | 153 | M8 |
| 24OPzV2500 | 2 | 2500 | 487 | 212 | 792 | 807 | 187 | 188 | M8 |
| 24OPzV3000 | 2 | 3000 | 576 | 212 | 792 | 807 | 225 | 226 | M8 |
| 12VOPzV100 | 12 | 100 | 407 | 177 | 225 | 225 | 36 | 37 | M8 |
| 12VOPzV140 | 12 | 140 | 532 | 207 | 214 | 219 | 53.5 | 54.5 | M8 |
| 12VOPzV160 | 12 | 160 | 532 | 207 | 214 | 219 | 57 | 58 | M8 |
| 12VOPzV200 | 12 | 200 | 521 | 262 | 220 | 225 | 73 | 74 | M8 |
| Component | Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar seal |
| Features | Turbular Plate high Sn low Ca grid with Special paste | Balanced Pb-Ca grid for improved recombinati on efficiencv | Fire resistanc e ABS (UL94-V0octional) | Flame Si-Rubber and aging resistance | Female Copper lnsert | Advanced PVC separator for high pressure cell desbm | Silicon Gel | Two layers epoxy resin seal |
Ø Separator : Imported Amer-sil PVC separator for Gel battery Ø Electrolyte : nano GEL electrolyte
Ø Battery container and cover : ABS for higher temperature Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Ø Relief valve : Complete with integrated flame arrestor
CSBattery OPzV Tubular Deep Cycle GEL Battery 2volt 12Volt Assembling
CSBattery Quality Control
CSBattery certifications
Ø IEC 60896-21/22 Ø IEC 61427 Ø ISO9001/14001/18001 Ø Eurobat guide, long life Ø BS6290 part 4 Ø GB/T 22473 Ø CE Ø MH63727-UL
CSBattery OPzV Tubular Deep Cycle GEL Battery 2volt 12Volt Projects
CSBattery Applications
Ø Electric Powered Vehicles Ø Wheel Chairs Ø BTS Stations Ø Medical Equipment Ø Solar and Wind Ø Golf Cars and Buggies Ø Power Tools Ø Control System Ø UPS systems Ø Emergency systems
CSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.CSBattery Customers
CSBattery Packing-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
