Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > Csbattery 12V105ah Maintenance Free AGM Battery for Electric-Forklift-Truck/Engine/Telecom-Control-Equipments
Csbattery 12V105ah Maintenance Free AGM Battery for Electric-Forklift-Truck/Engine/Telecom-Control-Equipments
US$ 91.47 - 91.47
MOQ: 12 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSBattery
Place of Origin:
China
Model Number:
FB12-105
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Csbattery 12V15ah Rechargeable AGM Battery for RV/Marine/UPS/Solar/Security/Fire/Golf-CarUS$ 12.07 - 13.69MOQ: 12 Pieces -
Csbattery 12V40ah Long-Life Gel Battery for Power-Tools/Home-Appliances/Consumer-Electronics/Vs: Sacred-Sun/Ritar/AliUS$ 56.98 - 75.36MOQ: 50 Pieces
-
Csbattery 2V200ah Deep Cycle Opzs Battery for High-Recombination-Efficiency/VFD-Systems/Stationary/Renewable/AliUS$ 62.39 - 75.9MOQ: 24 Pieces
-
Csbattery 6V220ah Long-Life Gel Battery for Electric-Folklifts/Electric-Bicycles/Scooters/Pump/Medical/Vs: Trojan/Narada/AliUS$ 89.67 - 98.65MOQ: 24 Pieces
-
CSBattery High-Temp Deep Cycle GEL 12V/6V/8V Battery HTB12V Patented High-Temp Deep Cycle Solar Gel Battery, Own 15-20years Long Life, Your Best Partner for Solar Market and Hot Area. CSBattery HTB Series of 12V GEL Deep Cycle Batteries Are Recognized asUS$ 342.69 - 402.36MOQ: 24 Pieces
Brand Name
CSBattery
Place of Origin
China
Model Number
FB12-105
Size
394*110*286*286mm
Weight
30.5
Voltage
12V
Usage
Other, telecom
Nominal Capacity
105ah
Maintenance Type
Free
CSBattery Front terminal 12V105ah SEALED FREE MAINTENANCE AGM BATTERY
Product Parameters
-------------------------------------------------------------------------------------------------
CSBattery Front terminal 12V105ah SEALED FREE MAINTENANCE AGM BATTERY sepcidication
| FB12-105 | |||
| Nominal Voltage | 12V (6 cells per unit) | ||
| Design Floating Life @ 25ºC | 10 Years | ||
| Nominal Capacity @ 25ºC | 10 hour rate@10.5A,10.8V | 105Ah | |
| Capacity @ 25ºC | 20hour rate (5.57A,10.8V) | 111.4Ah | |
| 5 hour rate (18.5A,10.5V) | 92.5Ah | ||
| 1 hour rate (67.0A,9.6V) | 67.0Ah | ||
| Internal Resistance | Full Charged Battery@ 25ºC | ≤5.6mΩ | |
| Ambient Temperature | Discharge | -15ºC~45ºC | |
| Charge | -15ºC~45ºC | ||
| Storage | -15ºC~45ºC | ||
| Max.Discharge Current | @ 25ºC 630A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40ºC | 105% | |
| 25ºC | 100% | ||
| 0ºC | 85% | ||
| -15ºC | 65% | ||
| Self-Discharge@25ºCper Month | 3% | ||
| Charge (Constant Voltage) @ 25ºC | Standby Use | Initial Charging Current Less than 26.250A Voltage 13.6-13.8V | |
| Cycle Use | Initial Charging Current Less than26.250A Voltage 14.4-14.9V | ||
| Dimension (mm*mm*mm) | Length(mm) 552±1 Width(mm) 110±1 Height(mm) 239±1 Total Height(mm) 239±1 | ||
| Weight (kg) | Weight(kg) 30.5±3% | ||
CSBattery Applictions
Applications for durable AGM VRLA battery
Ø Telecom Control Equipment
Ø UPS system
Ø Solar & Wind Power System

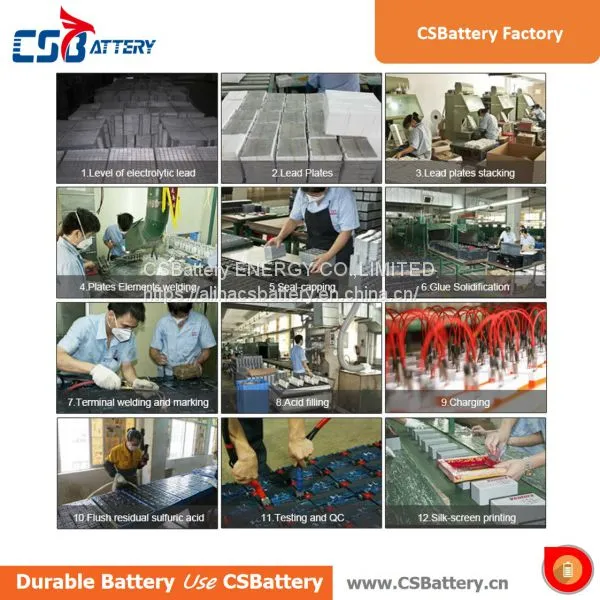

CSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Ø Telecom Control Equipment
Ø UPS system
Ø Solar & Wind Power System
Ø Communication Equipments
Ø Emergency Power SystemsCSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Product specifications and models
-------------------------------------------------------------------------------------------------
| Front terminal 12V SEALED FREE MAINTENANCE GEL BATTERY | |||||||||
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| FB12-55G | 12 | 55/10HR | 277 | 106 | 223 | 223 | 16.1 | 16.4 | M6 |
| FB12-80G | 12 | 80/10HR | 562 | 114 | 188 | 188 | 25.1 | 25.4 | M6 |
| FB12-100G | 12 | 100/10HR | 507 | 110 | 223 | 223 | 29.6 | 30 | M8 |
| FB12-105G | 12 | 105/10HR | 394 | 110 | 286 | 286 | 30.7 | 31.1 | M8 |
| FB12-125G | 12 | 125/10HR | 552 | 110 | 239 | 239 | 38.2 | 38.6 | M8 |
| FB12-150G | 12 | 150/10HR | 551 | 110 | 288 | 288 | 44.2 | 44.7 | M8 |
| FB12-160G | 12 | 160/10HR | 551 | 110 | 288 | 288 | 44.7 | 45.2 | M8 |
| FB12-175G | 12 | 175/10HR | 546 | 125 | 316 | 323.5 | 53.7 | 54.2 | M8 |
| FB12-180G | 12 | 180/10HR | 560 | 125 | 316 | 316 | 55.2 | 55.7 | M8 |
| FB12-200BG | 12 | 200/10HR | 560 | 125 | 316 | 316 | 57.2 | 57.7 | M8 |
| FB12-200AG | 12 | 200/10HR | 560 | 125 | 316 | 316 | 58.2 | 58.7 | M8 |
