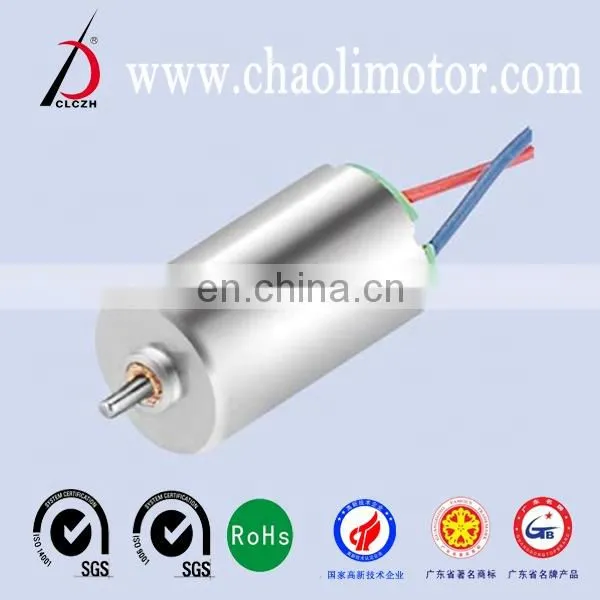

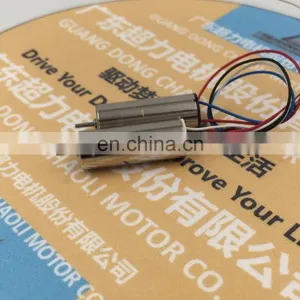

Help Center8mm 0820 High Speed Coreless Motor for Airplane
Related Products
-
Gear Motor CL-R370 for Prosthetic Arm, Robotic Gear MotorUS$ 5 - 5MOQ: 50000 Units -
High Quality CL-RE260 Micro DC Motor With Metal-brush for Toy andUS$ 0.3 - 0.3MOQ: 50000 Units
-
Coreless dc Motor CL-0720, Coreless dc Motor 7mmUS$ 0.86 - 0.86MOQ: 10000 Units
-
8.0mm 8020 High Speed Coreless Motor for QuadcopterUS$ 1.25 - 1.25MOQ: 10000 Units
-
8.5mm 8520 High Speed Coreless MotorUS$ 1.31 - 1.31MOQ: 10000 Pieces
1.This product

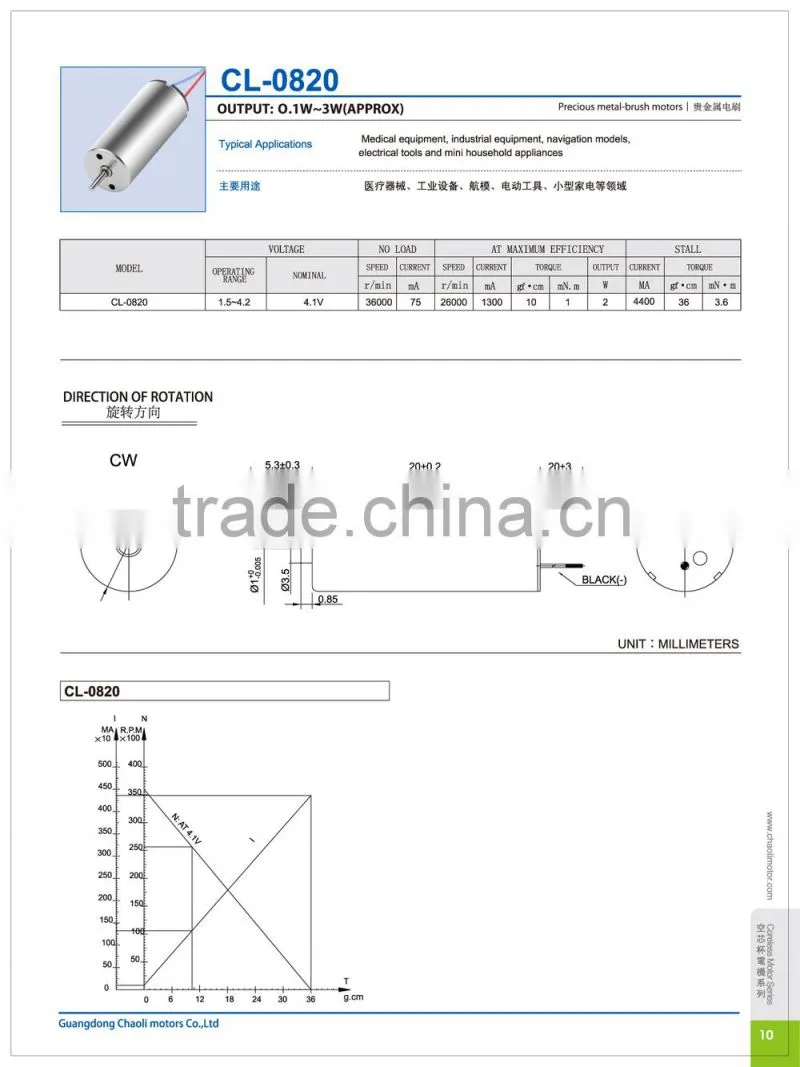

- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
- Special features/structure:
- Motor type: PMDC coreless motor
- Motor housing (D*F* L): Φ8*20mm
- Housing material: SECD-O
- Shaft (diameter): 1.0mm SUS304 steel (nickel coating)
- Way of commutation: Precious metal-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Weight: 1.4g(approx)
- Options:
- Length and shape for the extended shaft
- EMI/EMC suppression
- Gear, eccentric wheel or reducer Increased
- Magnet type
- Wire diameter and turn number
- Key parameters/performance
- Rated voltage: 4.1V DC
- At no load:
- Speed: 36000rpm
- Current: 75mA
- At maximum efficiency:
- Speed: 26000rpm
- Current: 1300mA
- Torque: 10gf.cm
- Output: 2.0W
- At stall:
- Current: 4.4A (maximum)
- Torque: 36gf.cm
- Application:
- This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
1. Company Profile
Beautiful Environment,Harmonious surrounding,
Welcome to visit our company.
.Outside view of our factory
. Our production line
.Our offices
.Our staffs
.Our showroom
2. R&D/QA/production/Trading
Market-oriented,Technology focus,Strict Quality Control.
. Our technology
. Our Quality assurance
. Our production
. During the xhibition
3. Qualification and Honor
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.
3) Our company possesses over 20 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
4. Contact us
.Contacts:May Wang
.Telephone:86 754 86381288
.FAX:86 754 86381168
.TradeManager: cn1501759855
.SKYPE: may-xiumei
.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China
.Zip Code:515800
.Website:
http://chaolimotor.en.china.cn
