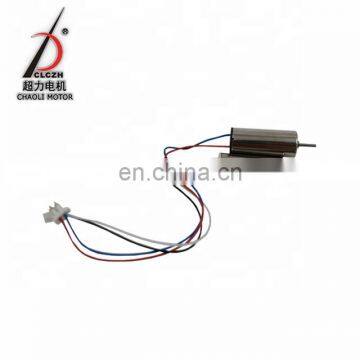

1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

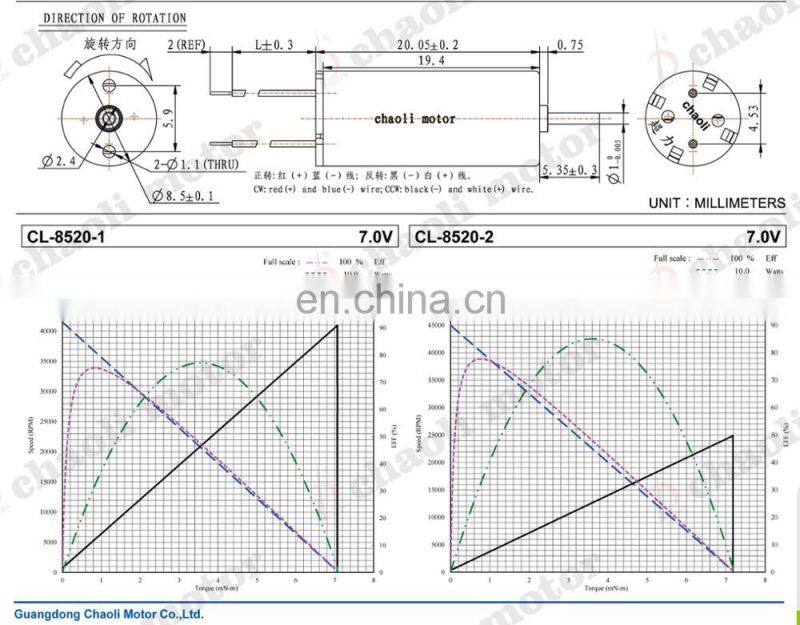

BASIC INFORMATION | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Terminal resistance | ||||||||||
Model | Calculate KV | Operation range | Nominal | Current | Speed | Current | Speed | Efficiency | Torque | Power | Current | Torque | |||
| rpm /V | VDC | VDC | mA | r/min | mA | r/min | ηmax | mN.m | gf.cm | mW | A | mN.m | gf.cm | ||
| CL-8520 | 5.9 | 6.0~8.0 | 7.0 | 80.0 | 41500 | 604.6 | 36651 | 75.29% | 0.830 | 8.469 | 3186.4 | 4.57 | 7.106 | 72.48 | 1.53 |
| 6.4 | 6.0~8.0 | 7.0 | 70.0 | 45000 | 591.6 | 40239 | 77.74% | 0.764 | 7.793 | 3219.0 | 5.00 | 7.221 | 73.65 | 1.40 | |
| 6.9 | 6.0~8.0 | 7.0 | 100.0 | 48000 | 830.7 | 42842 | 77.37% | 1.003 | 10.228 | 4498.6 | 6.90 | 9.332 | 95.19 | 1.01 | |
| 7.4 | 6.0~8.0 | 7.0 | 100.0 | 52000 | 836.7 | 46448 | 77.52% | 0.933 | 9.521 | 4540.0 | 7.00 | 8.743 | 89.18 | 1.00 | |
| 10.9 | 1.5~4.0 | 3.2 | 120.0 | 35000 | 889.3 | 30839 | 74.83% | 0.659 | 6.726 | 2129.3 | 6.59 | 5.546 | 56.57 | 0.49 | |
| 11.9 | 1.5~4.0 | 3.7 | 92.0 | 44000 | 651.2 | 38554 | 73.74% | 0.440 | 4.489 | 1776.8 | 4.61 | 3.556 | 36.27 | 0.80 | |
| 12.6 | 1.5~4.0 | 3.4 | 140.0 | 43000 | 982.9 | 37639 | 73.54% | 0.623 | 6.360 | 2457.3 | 6.90 | 5.001 | 51.01 | 0.49 | |
| 13.7 | 1.5~4.0 | 3.7 | 102.0 | 50700 | 675.2 | 44046 | 72.07% | 0.390 | 3.982 | 1800.4 | 4.47 | 2.975 | 30.34 | 0.83 | |
| 14.0 | 1.5~4.0 | 3.0 | 190.0 | 42000 | 1311.3 | 36685 | 73.12% | 0.749 | 7.637 | 2876.3 | 9.05 | 5.916 | 60.35 | 0.33 | |
| 16.0 | 1.5~3.7 | 2.4 | 170.0 | 38500 | 1166.2 | 33602 | 72.97% | 0.580 | 5.920 | 2042.2 | 8.00 | 4.562 | 46.53 | 0.30 | |
| 17.7 | 1.5~3.7 | 2.4 | 280.0 | 42500 | 1446.2 | 35606 | 65.03% | 0.605 | 6.174 | 2256.9 | 7.47 | 3.732 | 38.07 | 0.32 | |
| 18.0 | 1.5~3.7 | 3.2 | 270.0 | 57500 | 1697.3 | 49609 | 70.72% | 0.739 | 7.541 | 3840.6 | 10.67 | 5.387 | 54.95 | 0.30 | |
- Special features/structure:
- Motor type: PMDC coreless motor
- Motor housing (D*F* L): Φ8.5*20mm
- Housing material: SECD-O
- Shaft (diameter): 1.0mm SUS304 steel (nickel coating)
- Way of commutation: Precious metal-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Weight: 1.4g(approx)
- Options:
- Length and shape for the extended shaft
- EMI/EMC suppression
- Gear, eccentric wheel or reducer Increased
- Magnet type
- Wire diameter and turn number
- Key parameters/performance
- Rated voltage: 4.1V DC
- At no load:
- Speed: 36000rpm
- Current: 75mA
- At maximum efficiency:
- Speed: 26000rpm
- Current: 1300mA
- Torque: 10gf.cm
- Output: 2.0W
- At stall:
- Current: 4.4A (maximum)
- Torque: 36gf.cm
- Application:
- This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.
2.Our products

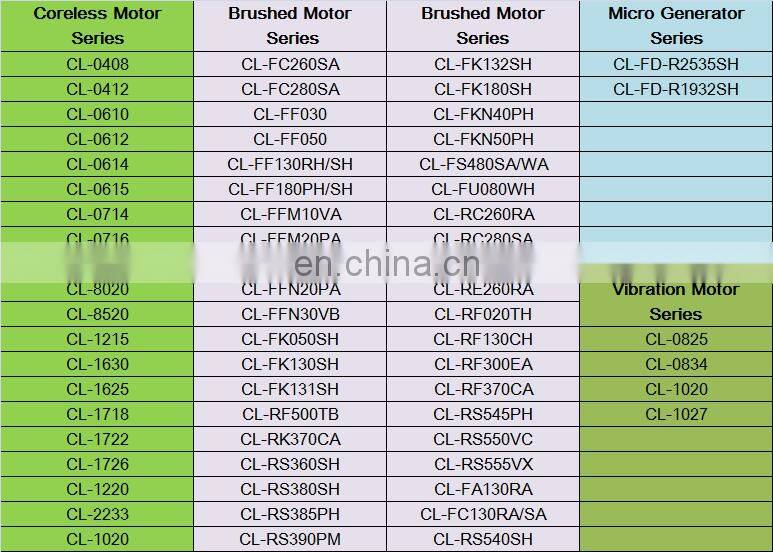

Following are the main products of our company, including coreless dc motors, brushed dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
