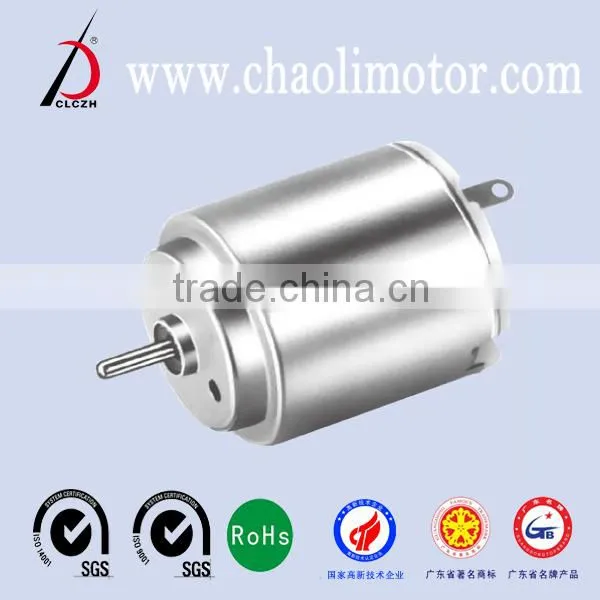

High Quality CL-RE260 Micro DC Motor With Metal-brush for Toy and
US$ 0.3 - 0.3
MOQ: 50000 Units
Key Specifications
Get Latest Price
Brand Name:
Chaoli
Place of Origin:
Guangdong, China
Model Number:
CL-RE260RA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coreless dc Motor CL-0720, Coreless dc Motor 7mmUS$ 0.86 - 0.86MOQ: 10000 Units -
8.0mm 8020 High Speed Coreless Motor for QuadcopterUS$ 1.25 - 1.25MOQ: 10000 Units
-
8.5mm 8520 High Speed Coreless MotorUS$ 1.31 - 1.31MOQ: 10000 Pieces
-
8mm 0820 High Speed Coreless Motor for AirplaneUS$ 1 - 1MOQ: 1000 Pieces
-
Gear Motor CL-R370 for Prosthetic Arm, Robotic Gear MotorUS$ 5 - 5MOQ: 50000 Units
Brand Name
Chaoli
Place of Origin
Guangdong, China
Model Number
CL-RE260RA

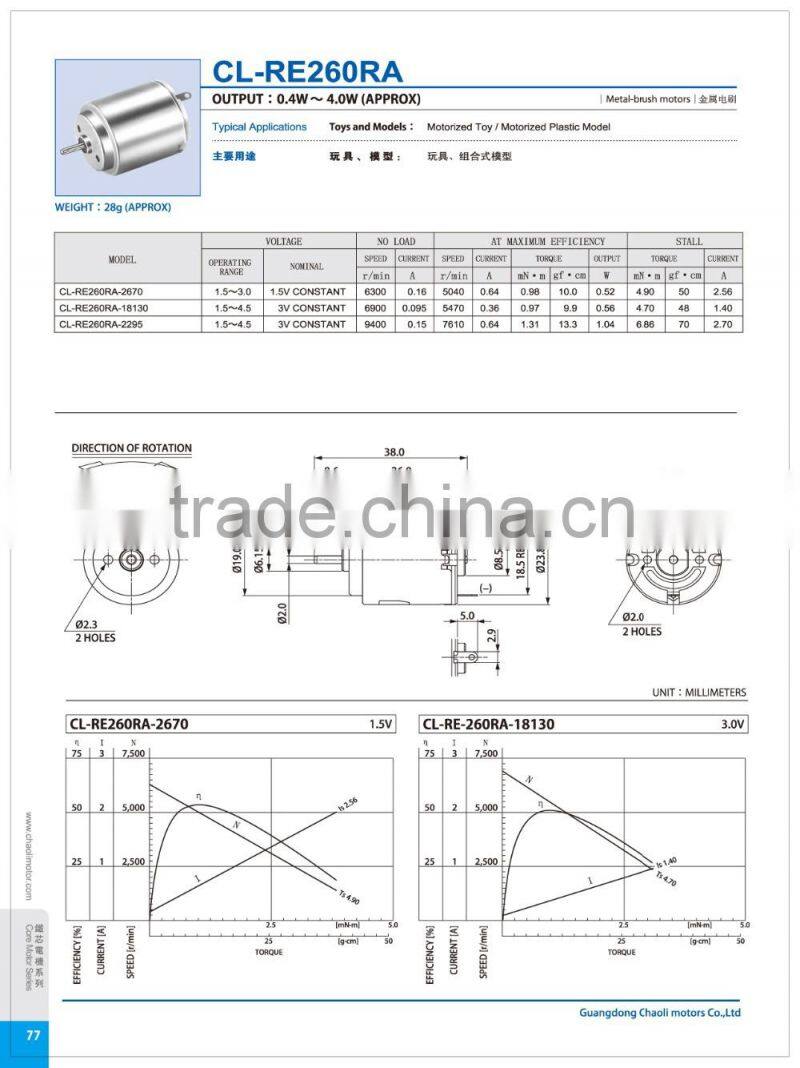

- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
Special features/structure:
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ23.8*26.9mm
Housing material: SECD-O
Shaft (diameter): 2.0mm carbon steel (nickel coating)
Way of commutation: metal-brush
Structure: 2-pole stator and 3 slot
Magnet type: strong magnets/ordinary magnets
Rotation: CW/CCW and reversible
Weight: 28g (approximate)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number
Key parameters/performance
Rated voltage: 1.5V DC
At no load:
Speed: 6300rpm
Current: 0.16A
At maximum efficiency:
Speed: 5040rpm
Current: 0.64A
Torque: 10.0gf.cm
Output: 0.52W
At stall:
Current: 2.56A (maximum)
Torque: 50.0gf.cm
This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.
