Home > Products > Classification by size > 0820 helicopter chaoli 3.7v 8.5mm motor
0820 helicopter chaoli 3.7v 8.5mm motor
- 100000 Unit / Units per Month
- HongKong
- T/T Credit Card
- quadcopter 0720, quadcopter motor, chaoli motor machinery 0720
- 3.7v cl-0716 coreless dc motor 7mm
- CL-0716 Precision Instrument, Remote control toys, aerocrafts, auto electronics, health care equipment
- micro frankenquad CL-0720 drone micro motor 7mm
- 23000rpm cl-0612 coreless dc motor,2012 good baby stroller
- coreless motor mini motor CL-0614 Coreless DC Motor
Product Details
Brand Name: | chaoli | Place of Origin: | Guangdong, China | Model Number: | cl-0820 |
Product Description

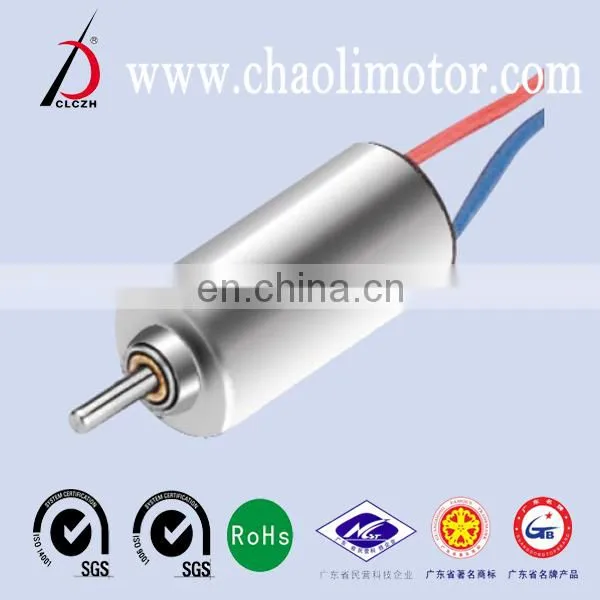

CL-0820 Coreless Motor
Application:Toys, Electrical Toys, Phone, Mobile Phone, PDA (Personal Digital Assistants), BP, Game Machine, Sex Product, Game Handle, Game Controller,automotive dc motor,small dc motor for toy car motor for children toy, and other electrical tool motor, printer motor, copy machine motor,air pump motor.
BASIC INFORMATION | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Terminal resistance | ||||||||||
Model | Calculate KV | Operation range | Nominal | Current | Speed | Current | Speed | Efficiency | Torque | Power | Current | Torque | |||
rpm /V | VDC | VDC | mA | r/min | mA | r/min | ηmax | mN.m | gf.cm | mW | A | mN.m | gf.cm | ||
CL-8520 | 5.9 | 6.0~8.0 | 7.0 | 80.0 | 41500 | 604.6 | 36651 | 75.29% | 0.830 | 8.469 | 3186.4 | 4.57 | 7.106 | 72.48 | 1.53 |
6.4 | 6.0~8.0 | 7.0 | 70.0 | 45000 | 591.6 | 40239 | 77.74% | 0.764 | 7.793 | 3219.0 | 5.00 | 7.221 | 73.65 | 1.40 | |
6.9 | 6.0~8.0 | 7.0 | 100.0 | 48000 | 830.7 | 42842 | 77.37% | 1.003 | 10.228 | 4498.6 | 6.90 | 9.332 | 95.19 | 1.01 | |
7.4 | 6.0~8.0 | 7.0 | 100.0 | 52000 | 836.7 | 46448 | 77.52% | 0.933 | 9.521 | 4540.0 | 7.00 | 8.743 | 89.18 | 1.00 | |
10.9 | 1.5~4.0 | 3.2 | 120.0 | 35000 | 889.3 | 30839 | 74.83% | 0.659 | 6.726 | 2129.3 | 6.59 | 5.546 | 56.57 | 0.49 | |
11.9 | 1.5~4.0 | 3.7 | 92.0 | 44000 | 651.2 | 38554 | 73.74% | 0.440 | 4.489 | 1776.8 | 4.61 | 3.556 | 36.27 | 0.80 | |
12.6 | 1.5~4.0 | 3.4 | 140.0 | 43000 | 982.9 | 37639 | 73.54% | 0.623 | 6.360 | 2457.3 | 6.90 | 5.001 | 51.01 | 0.49 | |
13.7 | 1.5~4.0 | 3.7 | 102.0 | 50700 | 675.2 | 44046 | 72.07% | 0.390 | 3.982 | 1800.4 | 4.47 | 2.975 | 30.34 | 0.83 | |
14.0 | 1.5~4.0 | 3.0 | 190.0 | 42000 | 1311.3 | 36685 | 73.12% | 0.749 | 7.637 | 2876.3 | 9.05 | 5.916 | 60.35 | 0.33 | |
16.0 | 1.5~3.7 | 2.4 | 170.0 | 38500 | 1166.2 | 33602 | 72.97% | 0.580 | 5.920 | 2042.2 | 8.00 | 4.562 | 46.53 | 0.30 | |
17.7 | 1.5~3.7 | 2.4 | 280.0 | 42500 | 1446.2 | 35606 | 65.03% | 0.605 | 6.174 | 2256.9 | 7.47 | 3.732 | 38.07 | 0.32 | |
18.0 | 1.5~3.7 | 3.2 | 270.0 | 57500 | 1697.3 | 49609 | 70.72% | 0.739 | 7.541 | 3840.6 | 10.67 | 5.387 | 54.95 | 0.30 |
CL-0820 Coreless DC Motor CL-0820 Coreless 4.1v DC Motor brush CL-0820 Coreless DC Motor
