Quadcopter 0720, Quadcopter Motor, Chaoli Motor Machinery 0720

Quadcopter 0720, Quadcopter Motor, Chaoli Motor Machinery 0720 thumbnail-1
Quadcopter 0720, Quadcopter Motor, Chaoli Motor Machinery 0720 thumbnail-2
Quadcopter 0720, Quadcopter Motor, Chaoli Motor Machinery 0720 photo-1
Quadcopter 0720, Quadcopter Motor, Chaoli Motor Machinery 0720 photo-2
US$ 0.86 - 0.86 MOQ: 10000 Units
Key Specifications
Get Latest Price
Brand Name:
chaoli
Place of Origin:
Guangdong, China
Model Number:
CL-0720
Contact Supplier Request Quote Chat Now
Guangdong Chaoli Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShanTou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name chaoli
Place of Origin Guangdong, China
Model Number CL-0720

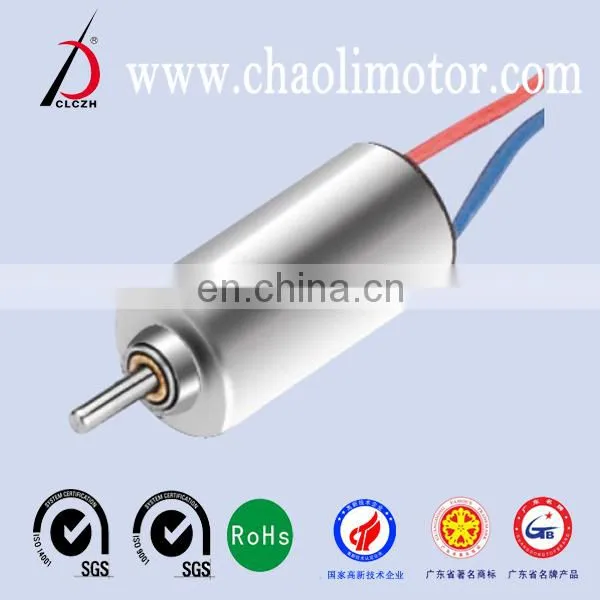

CL-0720 Coreless Motor





Application:Toys, Electrical Toys, Phone, Mobile Phone, PDA (Personal Digital Assistants), BP, Game Machine, Sex Product, Game Handle, Game Controller.







MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min mA r/min mA g.cm mN.m W mA g.cm mN.m
CL-0720 1.5-3.7 3.4 39000 70 33000 361 2.3 0.23 1.45 2000 14.5 0.14




BASIC INFORMATION
VOLTAGE
NO LOAD
AT MAXIMUM EFFICIENCY
STALL
Terminal resistance

Model
Calculate KV
Operation range
Nominal
Current
Speed
Current
Speed
Efficiency
Torque
Power
Current
Torque
rpm /V VDC VDC mA r/min mA r/min ηmax mN.m gf.cm mW A mN.m gf.cm
CL-0720 9.5 2.0~4.5 3.2 110.0 30500 574.5 25598 65.37% 0.448 4.572 1201.6 3.00 2.789 28.45 1.07
10.9 2.0~4.5 3.2 100.0 35000 540.4 29534 66.41% 0.371 3.787 1148.3 2.92 2.378 24.25 1.10
11.4 2.0~4.5 3.4 140.0 38600 793.7 32812 67.83% 0.533 5.434 1830.5 4.50 3.553 36.24 0.76
12.5 2.0~4.0 3.2 70.0 40000 499.2 35081 73.92% 0.321 3.279 1180.8 3.56 2.614 26.66 0.90
13.4 2.0~4.0 3.2 150.0 43000 803.1 36233 66.13% 0.448 4.569 1699.5 4.30 2.846 29.03 0.74
14.2 2.0~4.0 3.2 170.0 45500 545.4 34688 47.38% 0.228 2.322 826.9 1.75 0.958 9.77 1.83
15.1 2.0~4.0 3.4 180.0 51500 1095.7 44234 69.84% 0.562 5.730 2601.8 6.67 3.981 40.61 0.51
17.9 1.5~3.7 2.4 150.0 43000 843.2 36506 67.59% 0.358 3.649 1367.6 4.74 2.369 24.16 0.51



quadcopter 0720, quadcopter motor, chaoli motor machinery 0720
