Help CenterRS390 Water Pump DC Micro Motor With Guard Ring, for Models and Home Appliances-chaoli
Related Products
-
High Speed 12poles 5400KV CL-WS1512W RC Helicopter Brushless dc MotorUS$ 8.5 - 10MOQ: 500 Pieces -
High Torque 28x24mm 920KV CL-WS2824W Brushless dc Motor for HexacopterUS$ 7.5 - 7.8MOQ: 1000 Pieces
-
Low Speed CL-WS2825W GOPRO Camera Cradle Head Brushless dc MotorUS$ 9 - 11MOQ: 500 Pieces
-
High Speed 14x12mm 4000KV CL-WS1412W RC Airplane Brushless dc MotorUS$ 8.5 - 10MOQ: 500 Pieces
-
22mm 28mm CL-WS2816W(B2204-2300KV) Brushless Drone Motor With Rare Earth Magnetism for Helicopter and Aircarft-chaoliUS$ 7.55 - 7.98MOQ: 500 Units
1.This product

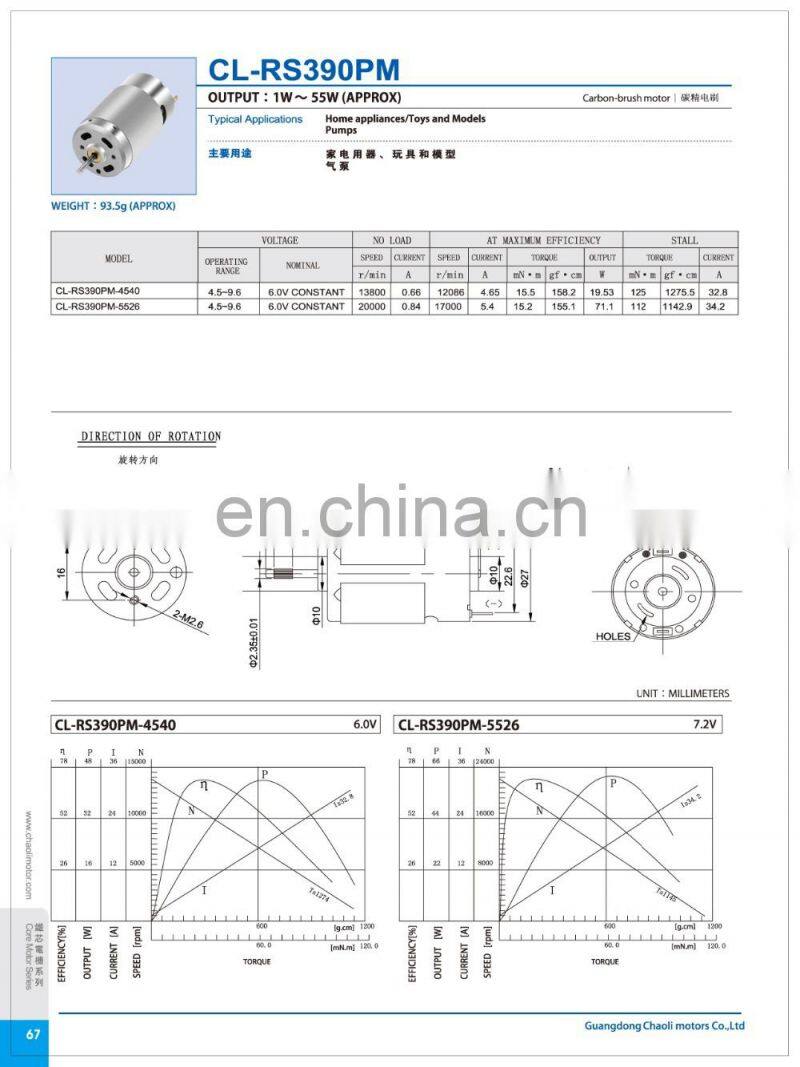

- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ27.0*46.5mm
Housing material: SECD-O
Shaft (diameter): 2.3mm carbon steel (nickel coating)
Way of commutation: carbon-brush
Structure: 2-pole stator and 3 Slot
Magnet type: strong magnet/NdFeB
Rotation: CW/CCW and reversible
Weight: 93.5g (approx)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer Increased
Magnet type
Wire diameter and turn number
Key parameters/Performance
Rated voltage: 6.0V DC
At no load:
Speed: 13800rpm
Current: 0.66A
At maximum efficiency:
Speed: 12086rpm
Current: 4.65A
Torque: 158.2gf.cm
Output: 19.53W
At stall:
Current: 32.8A (maximum)
Torque: 1275.5gf.cm
Provide high quality, Bring honorable value.
2.Our products

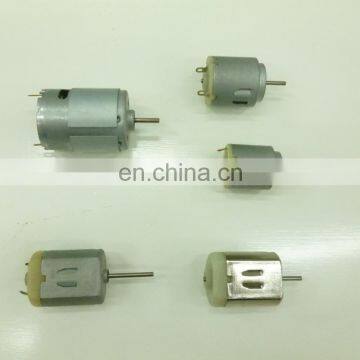

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
1. Company Profile
Beautiful Environment,Harmonious surrounding,
Welcome to visit our company.
.Outside view of our factory
. Our production line
.Our offices
.Our staffs
.Our showroom
2. R&D/QA/production/Trading
Market-oriented,Technology focus,Strict Quality Control.
. Our technology
. Our Quality assurance
. Our production
. During the exhibition
3. Qualification and Honor
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.
3) Our company possesses over 20 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
4. Contact us
.Contacts:Henry Cai
.Telephone:86 754 86381288
.FAX:86 754 86381168
.TradeManager: chaolimotor
.SKYPE: HenryCaizhangjin
.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China
.Zip Code:515800
.Website:
http://chaolimotor.en.china.cn
Send Inquiry to This Supplier
