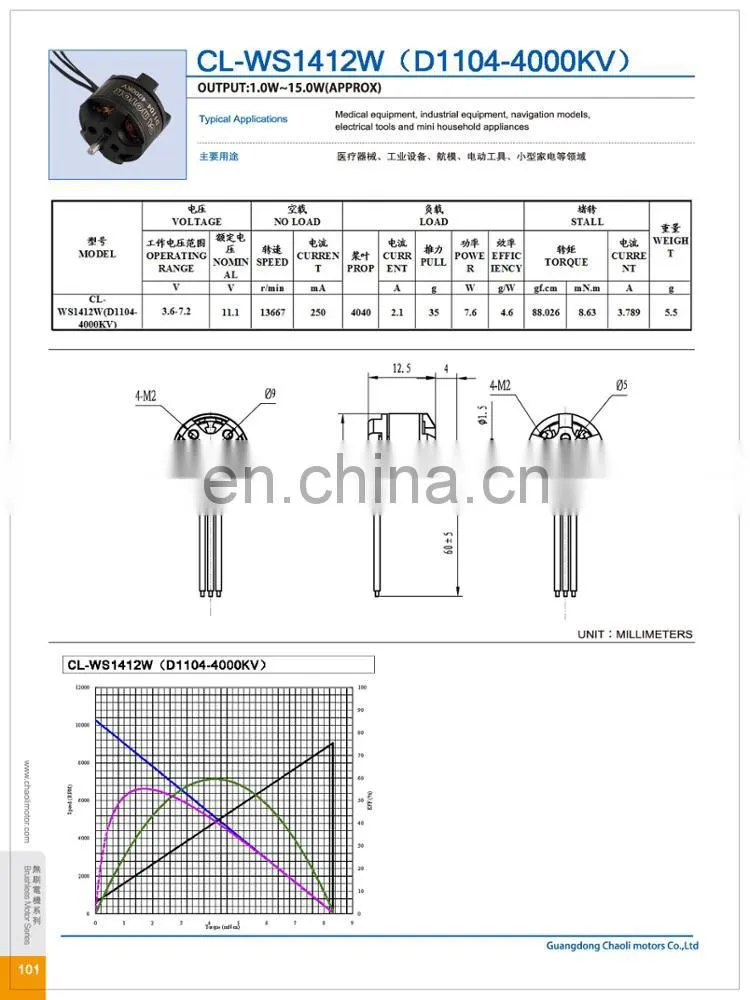

1.Specs:

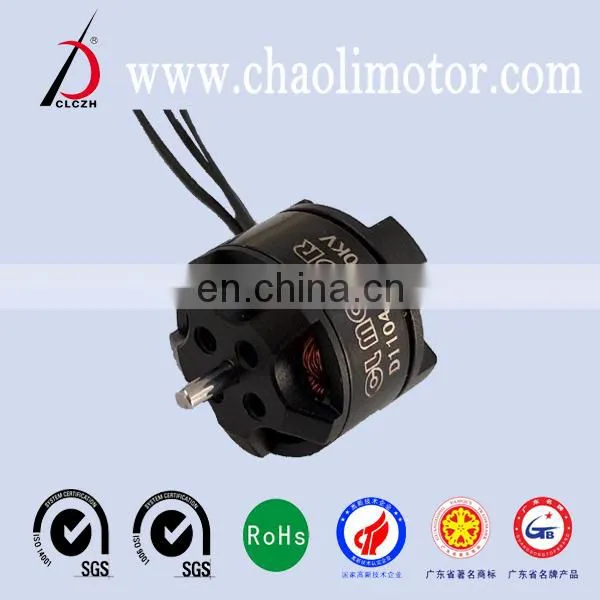

High speed high torquehigh speed 14x12mm 12poles 4000KV CL-WS1412W RC airplane brushless dc motor
Special Features/ Structure:
Motor type: PMDC brushless motor
Motor housing (D*F*L): Φ14*12mm
Housing material: AL6063/AL6061/SUS304+H62(Coating)
Shaft (diameter): 1.5mm carbon steel/SUS304 (nickel coating)
Way of commutation: Electronic control
Structure: Stator rotating type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight:5.5g(approx)
Options:
*Length and shape for the extended shaft
*Gear, eccentric wheel or reducer Increased
*Magnet type
*Wire diameter and turn number
2.Our products catagory
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
